Creating a Document's Window

3D PLM Enterprise Architecture	User Interface - Frame	Creating a Document's Window - Part 1 Enabling a document to be displayed in the V5 application frame
Use Case

Abstract

This article shows how to create a new window class to display an existing document and how to instantiate it from a command. In the other hand, the use case described in the "Creating a Document's Window - Part 2" article [1] explains more precisely the specificity of a multi-viewers window.

What You Will Learn With This Use Case
The CAAAfrHistogramChartWindow Use Case
Step-by-Step
In Short
References

What You Will Learn With This Use Case

A document, visualized in the V5 application frame, implements the CATIDocumentEdit interface. This interface provides the default window to display it. This use case is intended to show how to create a new type of window for an existing document.

You will learn all the steps to visualize a document with a none-standard way:

How to create the window class deriving from the CATFrmWindow ,
How to manage the MVC paradigm by using the CATVisManager,
How to create instances of the window.

At last, before getting in this use case, refer to the technical article [2], to have a complete viewpoint of all the objects implicated in the V5 layout.

[Top]

The CAAAfrHistogramChartWindow Use Case

CAAAfrHistogramChartWindow is a use case of the CAAApplicationFrame.edu framework that illustrates the ApplicationFrame framework capabilities.

[Top]

What Does CAAAfrHistogramChartWindow Do

The CAAAfrHistogramChartWindow use case creates a document window for CAAGeometry documents. This new window is launched from the "Histogram Chart Window" command. Refer to the use case entitled "Associating a Dialog Box with a Dialog Agent-2" [3].

The "Histogram Chart Window" command in the Chart Window toolbar

The top window on the picture below is the default window those created by the CATIDocumentEdit interface. The bottom window, named Model Histogram Chart, is those created by the "Histogram Chart Window" command.

Fig.1: The CAAGeometry Document Window's Types

The two windows displayed the same document (six points, one line and one plane) with two kinds of visualization:

In the top window, the elements of the model are visualized in 3D with the CATI3DGeoVisu interface.
In the bottom window, the elements are visualized in 2D with the CAAIVisHistogramChartVisu interface.

The CAAGeometry document implements the CATIDocumentEdit to create the default window. To create the CAAAfrHistogramChartWindow window we have chosen to create a new interface for this document. This interface, CAAISysDocumentChartWindow, enables you to have no link between the framework which contains the definition window (CAAApplicationFrame.edu) and those which contains the command to create a window's instance (CAADialogEngine.edu ).

[Top]

How to Launch CAAAfrHistogramChartWindow

See the section entitled "How to Launch the CAAGeometry Use Case" in the "The CAAGeometry Sample" use case for a detailed description of how this use case should be launched. For the specific scenario :

Do not type the module name on the command line, but type CNEXT instead. When the application is ready, do the following:

On the File menu click New
In the New box, select CAAGeometry and click OK
Select Window->Histogram Chart Window
Click OK

[Top]

Where to Find the CAAAfrHistogramChartWindow Code

The CAAAfrHistogramChartWindow use case is made up of several classes and interfaces:

CAAAfrHistogramChartWindow : The document's window class
CAAISysDocumentChartWindow : The interface to create a document's window class instance
CAAIVisHistogramChartVisu : The interface to visualized in 2D the document's elements (not explained here)
CAADegHistogramChartWindowCmd : The state command to create a document's window class instance thanks to the CAAISysDocumentChartWindow

There are respectively located in the CAAAfrGeoWindows.m, CAASysGeoModelInf.m, CAAVisGeoModelInt.m and CAADegGeoCommands.m modules of the CAAApplicationFrame.edu, CAASystem.edu, CAAVisualization.edu and CAADialogEngine.edu frameworks:

Windows	`InstallRootDirectory\CAAxxx.edu\CAAyyy.m\`
Unix	`InstallRootDirectory/CAAxx.edu/CAAyyy.m/`

where InstallRootDirectory is the directory where the CAA CD-ROM is installed.

[Top]

Step-by-Step

To create the Histogram Chart window, there are two steps which can be divided in sub-steps:

Creating the Document's Window class

1	Creating the Histogram Chart Window class
2	Providing the dialog object behavior
3	Providing the MDI document window behavior
4	Duplicating the window
5	Deleting the window

Creating Document's Window class instances

6	Creating the CAAISysDocumentChartWindow interface
7	Implementing the CAAISysDocumentChartWindow interface
8	Using the CAAISysDocumentChartWindow interface

[Top]

Creating the Histogram Chart Window Class

This document window includes one viewer. The class for this window is CAAAfrHistogramChartWindow, whose header file is as follows.

...
class ExportedByCAAAfrGeoWindows CAAAfrHistogramChartWindow: public CATFrmWindow
{
  public:
    CAAAfrHistogramChartWindow(const CATString & iName, CATFrmEditor * iEditor=NULL);
    virtual ~CAAAfrHistogramChartWindow();
    void Build();

    virtual CATFrmWindow * DuplicateWindow();

    virtual void DeleteWindow();
    ...
  private:

    CATNavigation2DViewer * _pViewer ;
    CATPathElement        * _pRootObjectPath ;

};

CAAAfrHistogramChartWindow derives from the CATFrmWindow class. This base class manages the integration of the window in the V5 application layout. The CAAAfrHistogramChartWindow class has:

A constructor and a destructor
A DuplicateWindow method used by the New Window command of the Window menu
A DeleteWindow to delete or release the specific data of the window.
The Build method, as usual for a Dialog class, creates and arranges the dialog objects, and for a document's window manages the interactivity.

This class keeps in data member the viewer and the root of the document to display.

The constructor class is simple:

CAAAfrHistogramChartWindow :: CAAAfrHistogramChartWindow
                         ( const CATString &iName, CATFrmEditor * iEditor )
                   : CATFrmWindow(iName,iEditor), _pViewer(NULL),_pRootObjectPath(NULL)
{
}

[Top]

Providing the Dialog Object Behavior

The dialog object behavior consists in:

Instantiating the viewer to display
Arranging the viewer in the document window
Setting the current viewer

The Build method creates the viewer, arranges it in the window and sets it the current viewer.

Instantiating the viewer to display

void CAAAfrHistogramChartWindow :: Build()
{
   CATDlgFrame * pFrameWindow = GetViewerFrame() ;

   CATString ViewerName = "HistogramChar2DViewer" ;
   int width  = 200 ;
   int height = 200 ;
   CATDlgStyle DlgStyle = CATDlgFraNoTitle | CATDlgFraNoFrame ;
   _pViewer = new CATNavigation2DViewer(pFrameWindow,ViewerName,
                                               DlgStyle,width,height) ;
   _pViewer->SetBackgroundColor(0.7f,0.7f,0.7f);
   _pViewer->SetGraduatedBackground(0);
...

_pViewer is a CATNavigation2DViewer class instance:

Its parent, pFrameWindow , is a CATDlgFrame object created by the CATFrmWindow class [2].
Its size (width and height) is given in pixels.
Its background color is white and not gratuaded. (SetBackgroundColor and SetGraduatedBackground are CATViewer methods)

Arranging the viewer in the document window
... FrameWindow->Attach4Sides(Frame); ...
The Attach4Sides method attaches _pViewer to the four sides of the pFrameWindow frame.
Setting the current viewer
... _pViewer->ReframeOn(0.f,300.f,-20.f,300.f); SetViewer(_pViewer); ...
The Reframe method ensures that the whole contents of _pViewer is displayed, while the SetViewer method sets _pViewer as the current viewer. We have now a nice document window, but few interactive mechanisms are available. Let's assign them now.

[Top]

Providing the MDI Document Window Behavior

The MDI document window behavior consists in:

Retrieving the visualization manager and the document root object
Requesting the document to create its graphics representation and attaching them to the visualization manager
Managing the links between these objects and all the other objects enabling interactivity.

Retrieving the visualization manager and the document root object

Still in the Build method, let's now the unique visualization manager be aware of the document to display, under which viewpoints, and with which tools, that is, which interfaces should be queried onto the document objects to make them display.

...
  CATFrmEditor * pEditor = GetEditor();
  CATVisManager * pVisuManager = CATVisManager::GetVisManager();

  if ( (NULL != pEditor ) && ( NULL != pVisuManager) )
   {
      CATDocument    * pDocument   =  pEditor ->GetDocument();

      CATBaseUnknown * pRootObject = NULL ;
      if ( NULL != pDocument )
      {
         CATPathElement path = pEditor ->GetUIActiveObject();
        _pRootObjectPath = new CATPathElement(path);
      }
...

pEditor, a pointer to the editor, is the argument of the window constructor kept by the CATFrmWindow class. Then the visualization manager is retrieved, and the root object. In this use case, the root object is the current UI active object. A local CATPathElement , _pRootObjectPath, is created to keep "a pointer" on the root object. This path will be released in the destructor.

Requesting the document to create its graphics representation and attaching them to the visualization manager

...
    if ( NULL != _pRootObjectPath )
    {
         CATCommand * pCommandSelector = (CATCommand*) pEditor->GetCommandSelector();

         list<IID> ListIVisu;
         IID visu = IID_CAAIVisHistogramChartVisu;
         ListIVisu.fastadd(&visu);

         CATViewpoint  * pViewPoint = NULL ;
         pViewPoint = (CATViewpoint*) &(_pViewer->GetMain2DViewpoint());

         pVisuManager->AttachTo(_pRootObjectPath,pViewPoint,ListIVisu,pCommandSelector);
...

The command selector, that is, the command that stands at the top of the command tree, is retrieved. This selector will be the father of a CATSelector class instance created by the AttachTo [4]. The manipulators attached to the graphic representation of the model will be linked to this CATSelector enabling the selection and the pre-selection in the viewer.

The list with the interface implemented by the objects of the documents is set up.

The main 2D viewpoint of the viewer is retrieved and attached to the visualization manager along with the document's root object, the list of interfaces to use, and the command selector.

Managing the links between these objects and all the other objects enabling interactivity

...
         CATPSO * pPSO = pEditor->GetPSO() ;
         pVisuManager->AttachPSOTo( pPSO,pViewPoint);

         CATHSO * pHSO = pEditor->GetHSO() ;
         pVisuManager->AttachHSOTo( pHSO,pViewPoint);

         CATISO * pISO = pEditor->GetISO()  ;
         pISO->AddViewer(_pViewer);
...

This piece of code retrieves the Preselected Set of Objects (PSO) and the Highlighted Set of Objects (HSO) from the editor, and requests the visualization controller to attach the viewpoint to the PSO and to the HSO. Now, when the end user moves the mouse above a representation in a viewer, the path element corresponding to this representation is put in the PSO, is highlighted and put in the HSO.

The Interactive Set of Objects (ISO) is also retrieved. These objects are those which don't belong to the document, but that are so handy to manipulate representations in viewers, such as handles to move or deform them. The ISO now knows the viewer.

The document window Build method is now complete.

[Top]

Duplicating the Window

This is done thanks to the Duplicate method.

...
CATFrmWindow * CAAAfrHistogramChartWindow :: DuplicateWindow()
{
   CATString NameOfThis = GetBaseName().CastToCharPtr() ;
   CAAAfrHistogramChartWindow * pWindowToReturn = NULL ;
   pWindowToReturn  = new CAAAfrHistogramChartWindow(NameOfThis,GetEditor() )  ;
   pWindowToReturn ->Build();
   pWindowToReturn->SetBaseName(GetBaseName());

   return  pWindowToReturn ;
}
...

The Duplicate method creates a window of the same type than the current one. This new window is managed by the editor dedicated to the document. This editor is those kept by the current window and retrieved by the GetEditor method of the CATFrmWindow base class.

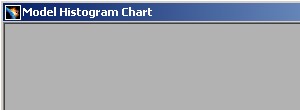

The SetBaseName method enables you to manage the window's title. The Fig.1 shows that the name of the window is "Model Histogram Chart". Refer to the "Implementing the CAAISysDocumentChartWindow interface" section.

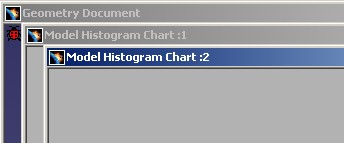

The SetBaseName method enables to update the title of the first windows if only one exist.

The title of the first window becomes "Model Histogram Chart:1" and the title of the second window is " Model Histogram Chart:2".

[Top]

Deleting the Window

...
void CAAAfrHistogramChartWindow :: DeleteWindow()
{
   if ((NULL != GetEditor() ) && (NULL != _pViewer) )
   {
      CATISO * pISO = NULL ;
      pISO = GetEditor()->GetISO();

      if  (NULL != pISO)   pISO->RemoveViewer(_pViewer);

      CATViewpoint  * pViewPoint = NULL ;
      pViewPoint = (CATViewpoint*) &(_pViewer->GetMain2DViewpoint());

      CATVisManager * pVisuManager = CATVisManager::GetVisManager();

      if ( (NULL != pViewPoint) &&  ( NULL != pVisuManager) )
      {
         pVisuManager->DetachPSOFrom(pViewPoint) ;
         pVisuManager->DetachHSOFrom(pViewPoint);

         pVisuManager->DetachFrom(_pRootObjectPath,pViewPoint);
      }
   }
   CATFrmWindow::DeleteWindow();

}
...

The document window is deleted thanks to the DeleteWindow method, that removes the viewer from the ISO, then retrieves the viewpoint and detaches it from the PSO and from the HSO, and that recursively calls the DeleteWindow method of the base class. This last line is mandatory to ensure the complete destruction of the window in the V5 layout.

The destructor simply deletes the path to the root object. No need to delete the viewer, since as any dialog object, they will be automatically deleted when the window itself will be deleted.

...
CAAAfrHistogramChartWindow :: ~CAAAfrHistogramChartWindow ()
{
   if ( NULL != _pRootObjectPath) _pRootObjectPath->Release() ;
   _pRootObjectPath = NULL ;
}
...

The document's window class is now complete. You will learn how to create instances.

Creating the CAAISysDocumentChartWindow interface

This new interface [6] has only one method, the CreateHistogramWindow method.

...
class ExportedByCAASysGeoModelInf CAAISysDocumentChartWindow : public CATBaseUnknown
{
  CATDeclareInterface;

  public :
  virtual HRESULT CreateHistogramWindow() = 0;

};
...

Implementing the CAAISysDocumentChartWindow interface

This interface is implemented on the CAAGeometry document. The last argument of the CATImplementClass macro is the suffix of the document. It is CAAGeom for the CAAGeometry and CATPart for a Part document.

...
#include "TIE_CAAISysDocumentChartWindow.h"
TIE_CAAISysDocumentChartWindow(CAAEAfrDocumentChartWindow);

CATImplementClass(CAAEAfrDocumentChartWindow, DataExtension, CATBaseUnknown,CAAGeom);
...

The constructor and the destructor are empty.

...
CAAEAfrDocumentChartWindow::CAAEAfrDocumentChartWindow(){}

CAAEAfrDocumentChartWindow::~CAAEAfrDocumentChartWindow(){}
...

The CreateHistogramWindow method is similar to the Duplicate method of the CAAAfrHistogramChartWindow class.

...
HRESULT CAAEAfrDocumentChartWindow::CreateHistogramWindow()
{
   // 1- Creating the new instance
   CATUnicodeString WindowName = CATMsgCatalog::BuildMessage("CAAAfrHistogramChartWindow",
                                        "BaseName",NULL,0,"Histogram Chart");
   CATString WindowBaseName = WindowName.ConvertToChar();

   CATIEditor * pIEditor = NULL ;
   HRESULT rc = QueryInterface(IID_CATIEditor, (void**)&pIEditor);
   if (SUCCEEDED(rc))
   {
      CATFrmEditor * pEditor = pIEditor->GetEditor();
      CAAAfrHistogramChartWindow * pWindow = new CAAAfrHistogramChartWindow(WindowBaseName,pEditor);
      pWindow->Build();

      //2- Managing the Window's Title
      CATUnicodeString BaseName = pWindow->GetBaseName();
      pWindow->SetBaseName(BaseName);

      //3- Managing the current window
      CATFrmLayout *currentLayout = CATFrmLayout::GetCurrentLayout();
      currentLayout->SetCurrentWindow(pWindow);

      pIEditor->Release();
      pIEditor = NULL ;
   }
   return rc ;
}
...

This method is divided in three parts:

Create a CAAAfrHistogramChartWindow class instance

The first identifier is a default name extracted from the CAAAfrHistogramChartWindow.CATNls file. In most cases, this identifier is the complete path of the document. ( the editor knows its document by the GetDocument method).

In the CNext\Resources\msgcatalog directory of the CAAApplicationFrame.edu framework you will find the CAAAfrHistogramChartWindow.CATNls file which contains the following line:

...
BaseName = "Model Histogram Chart ";
...

The GetBaseName method retrieves the name of the document without its complete path. The SetBaseName method enables to modify the title of the already existing windows. Refer to the Duplicate method.
Set the current window has current in the V5 application. In other words, the new window has the focus. The windows management is the role of the unique CATFrmLayout class instance [2].

Using the CAAISysDocumentChartWindow interface

In the CAADegHistogramChartWindowCmd state command [3], there is a transition with the CreateHistogramChartWindow action method:

...
CATBoolean CAADegHistogramChartWindowCmd::CreateHistogramChartWindow(void *iDummy)
{
  CATFrmEditor * pEditor = GetEditor();
  if ( NULL != pEditor )
  {
     CATDocument * pDocument = pEditor->GetDocument();
     if ( NULL != pDocument )
     {
        CAAISysDocumentChartWindow * pIDocumentChartWnd = NULL ;
        HRESULT rc = pDocument->QueryInterface(IID_CAAISysDocumentChartWindow,
			                        (void**)&pIDocumentChartWnd);
        if ( SUCCEEDED(rc) )
        {
           pIDocumentChartWnd->CreateHistogramWindow();
          ...
}
...

[Top]

In Short

Documents of the same type are always displayed in similar windows. You can instantiate the CATFrmGraphAnd3DWindow class and the CATFrmGraphAnd2DWindow class provided by CAA V5, or create your own window which should derive from the CATFrmWindow base class.

Document windows are instantiated in the CreateDefaultWindow method of the CATIDocumentEdit interface when the end user clicks File->New or File->Open. For your own window you should provide a new interface which realizes the new window instantiation.

[Top]

References

[1]	Creating a Document's Window - Part 2
[2]	Understanding the Application Frame Layout
[3]	Associating a Dialog Box with a Dialog Agent - Part 2
[4]	The CAA Command Model
[Top]

History

Version: 1 [Fev 2003]	Document created
[Top]

3D PLM Enterprise Architecture

User Interface - Frame
