Browsing the Geometric Container

Geometric Modeler	Tessellation	Browsing the Geometric Container The application to visualize geometry and topology
Use Case

Abstract

In all the CATIA Geometric Modeler use cases, a CATGeoFactory container, creating and containing the geometric objects, is created and can be stored in a .NCGM file. The purpose of the CAAGemBrowser use case is to create an application and a document allowing you to visualize the created objects of a CATGeoFactory container.

What You Will Learn With This Use Case
The CAAGemBrowser Use Case
Step-by-Step
In Short
References

What You Will Learn With This Use Case

This use case explains a means to visualize geometric objects:

The bodies
The points, curves, and surfaces which are not pointed to by any other geometric object.

First an application and a document are defined, following the same way as in the CAAVisBase use case. Then, the visualization of the objects are computed. Hence, you will learn:

How to load and use the geometry factory
How to read data on the geometric objects
How to use the tessellation operators: CATCellOperator to tessellate a cell, CATCurveTessellator to tessellate a curve and CATSurfaceTessellator to tessellate a surface.
How to create representations.

The CAAGemBrowser Use Case

CAAGemBrowser is a use case of the CAAGemBrowser.edu framework that illustrates Tessellation framework capabilities.

What Does CAAGemBrowser Do

This use case:

First derives a new class of application CAAGemBrowserApplication and a new class of document CAAGemBrowserDocument, and provides the corresponding overridden methods
Then defines the class CAAGemRep that computes the representation.

This use case is a proposal of geometry visualization. Its intent is not to be a full graphic application. In particular, the color or the selection are not managed here.

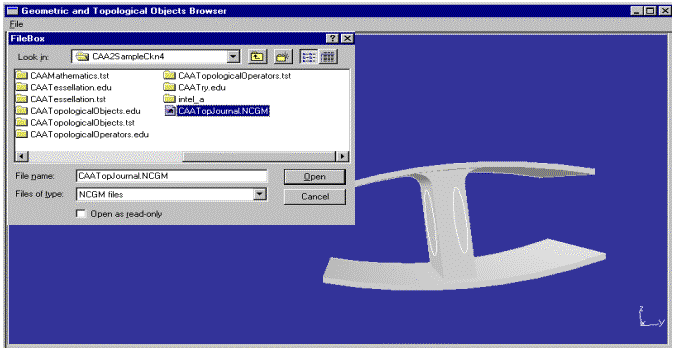

In the picture above, the CAAGemBrowser use case displays the result of the CAATopJournal use case. This result was saved in the directory

Windows	`InstallRootDirectory\intel_a\CNext\resources\graphic\CAATopJournal.NCGM`
Unix	`InstallRootDirectory/OS_a/CNext/resources/graphic/CAATopJournal.NCGM (OS depends on the system`[1] `)`

to allows you to visualize an example without processing any other use case. To visualize the model, simply select the menu File and the item Open. Then select the file.

How to Launch CAAGemBrowser

To launch CAAGemBrowser, you will need to set up the build time environment, then compile CAAGemBrowser.m along with its prerequisites, set up the run time environment, and then execute the use case [1].

This use case is an interactive application. To visualize a .NCGM document (for example, the model saved at the last step of the CAATopJournal, CAATopOverview, CAAGobCreation, CAAGobNurbs, CAATesBody, or CAAGopIntersect use cases ), click the File+Open menu and select the file you want to display.

Where to Find the CAAGemBrowser Code

The CAAGemBrowser use case is made of three classes

CAAGemBrowserApplication, defining the application
CAAGemBrowserDocument, defining the window
CAAGemRep, creating the representations.

The sources (CAAGemBrowserApplication.cpp, CAAGemBrowserDocument.cpp, CAAGemRep.cpp) are located in the CAAGemBrowser.m module of the CAATessellation.edu framework.

The corresponding headers (CAAGemBrowserApplication.h, CAAGemBrowserDocument.h, CAAGemRep.h) are located in the LocalInterfaces directory of the CAAGemBrowser.m module.

Windows	`InstallRootDirectory\CAATessellation.edu\CAAAGemBrowser.m\`
Unix	`InstallRootDirectory/CAATessellation.edu/CAAAGemBrowser.m/`

where InstallRootDirectory is the directory where the CAA CD-ROM is installed.

Step-by-Step

CAAGemBrowser is divided into the following steps:

Creating an Interactive Application to Display the Document
Creating Dialog Objects and Setting their Behaviors and Styles
Creating the Representations

Creating an Interactive Application to Display the Document

Thanks to an interactive application, the CAAGemBrowserDocument can be displayed and run as a standalone application. This interactive application is made of the class CAAGemBrowserApplication that derives from CATInteractiveApplication. Its header file is as follows.

#include "CATInteractiveApplication.h"  // To derive from

class CAAGemBrowserApplication : public CATInteractiveApplication
{
  public:

    CAAGemBrowserApplication(const CATString & iApplicationId);
    virtual     ~CAAGemBrowserApplication();
    virtual void BeginApplication();
    virtual int  EndApplication();

private:
    CAAGemBrowserApplication();
    CAAGemBrowserApplication(const CAAGemBrowserApplication &iObjectToCopy);
};

In addition to the constructor and destructor, this interactive application class redefines two methods of CATInteractiveApplication:

BeginApplication, called by the system just after the application constructor. This method is dedicated to create the different objects managed by the application, namely here the document window
EndApplication, called by the system when the application destruction is requested. This method is dedicated to deallocate objects or close files.

The document window is created in the BeginApplication method, and in this use case, the EndApplication has nothing to deallocate since it is automatically deleted when the application is deleted.

...
void CAAGemBrowserApplication::BeginApplication()
{
  cout << "CAAGemBrowserApplication::BeginApplication" << endl;

  // This window is deleted when the application is deleted.
  // The application is deleted by the Destroy Method called in the
  // CAAGemBrowserDocument::Exit method.
  //
  CAAGemBrowserDocument * pMainWindow =NULL;
  pMainWindow = new CAAGemBrowserDocument(this);

  // Constructs all Dialog objects of the window
  pMainWindow->Build();

  pMainWindow->SetVisibility(CATDlgShow);
}

int CAAGemBrowserApplication::EndApplication()
{
  return 0;
}

Note that the document window is first instantiated, then initialized using its Build method, and finally set as visible. The constructor parameter is the dialog box parent in the command tree structure, set as the application itself.

The application is simply instantiated as follows.

...
CAAGemBrowserApplication ApplicationInstance("CAAGemBrowserApplicationInstance");

The main program is created from this instance.

Creating Dialog Objects and Setting their Behaviors and Styles

The file CAAGemBrowserDocument.h contains the following:

#ifndef CAAGemBrowserDocument_h
#define CAAGemBrowserDocument_h

#include "CATDlgDocument.h"      // To derive from

class CATInteractiveApplication; // Application kept in data member
class CATDlgFile;
class CAT3DBagRep ;              // Data member class forward declaration
class CATNavigation3DViewer;
class CATGeoFactory;

class CAAGemBrowserDocument : public CATDlgDocument
{
  DeclareResource(CAAGemBrowserDocument, CATDlgDocument)

  public:
    CAAGemBrowserDocument(CATInteractiveApplication * iParentCommand);
    virtual ~CAAGemBrowserDocument();
    void     Build();

  private:
 ...
    // Creates the model representation, ie _pTheModelToDisplay
    void CreateModelRepresentation();

    // Creates the Menubar which is reduced to a File/Open-Close-Exit option
    void CreateMenuBar();

    // Creates the Dialog object to see the model
    void CreateViewer();

    // Attaches the model representation in the 3D Viewer to see it and
    // asks a draw model
    void VisualizeModel();

    // Default constructor, not implemented
    // Set as private to prevent from compiler automatic creation as public.
    CAAGemBrowserDocument ();

    // Copy constructor, not implemented
    // Set as private to prevent from compiler automatic creation as public.
    CAAGemBrowserDocument(const CAAGemBrowserDocument &iObjectToCopy);

  private:
    //The parent widget (a CATInteractiveApplication instance)
    CATInteractiveApplication * _pApplication;
    // The Top of the representation tree
    CAT3DBagRep               * _pTheModelToDisplay ;
    // The Dialog object to display the model
    CATNavigation3DViewer     * _p3DViewer ;
    // The  "file selection" window
    CATDlgFile                * _pFileSelector;
    //  The geometry factory that is visualized
    CATGeoFactory             * _piGeomFactory;
};
#endif

The DeclareResource macro enables the class and all its dialog objects to use the automatic resource assignment. The first parameter is the class name, and the resource files must use this class name as file name, such as CAAGemBrowserDocument.CATNls for the file containing the texts and messages.

The class has a constructor, a destructor, and a Build method. Additional private methods create the menu bar, the dialog object to see the model, the object containing all the representations and visualize the model. Pointers to the different dialog objects are then declared as data members.

The remaining part of this file deals with the callback method declaration.

    // Callback on the exit button item of the menubar
    void Exit  (CATCommand           * iSendingCommand,
                CATNotification      * iSentNotification,
                CATCommandClientData   iUsefulData);
    // Callback on the open button item of the menubar
    void Open  (CATCommand           * iSendingCommand,
                CATNotification      * iSentNotification,
                CATCommandClientData   iUsefulData);
    // Callback on the OK button item of the file window
    void OpenOK  (CATCommand           * iSendingCommand,
                  CATNotification      * iSentNotification,
                  CATCommandClientData   iUsefulData);
    // Callback on the cancel button item of the file window
    void Cancel  (CATCommand           * iSendingCommand,
                  CATNotification      * iSentNotification,
                  CATCommandClientData   iUsefulData);
    // Callback on the close button item of the menubar
    void Close  (CATCommand           * iSendingCommand,
                 CATNotification      * iSentNotification,
                 CATCommandClientData   iUsefulData);

Constructor and Build Methods

Let's have a look at the beginning of CAAGemBrowserDocument.cpp:

CAAGemBrowserDocument::CAAGemBrowserDocument(CATInteractiveApplication * iParentCommand)
                      : CATDlgDocument(iParentCommand, "CAAGemBrowserRepWindowId"),
	                _pApplication(iParentCommand),_pTheModelToDisplay(NULL),
                        _p3DViewer(NULL),
                        _piGeomFactory(NULL),_pFileSelector(NULL)
{
  cout << "CAAGemBrowserDocument::CAAGemBrowserDocument" << endl;

  // Do not construct any Dialog object child in the constructor
  // Use the Build Method to do this.
}

void CAAGemBrowserDocument::Build()
{
  cout << "CAAGemBrowserDocument::Build" << endl;

  CreateMenuBar();
  CreateViewer();
}

The constructor is empty, but calls the base class CATDlgDocument constructor, and sets the parent command of the window as the interactive application itself. The Build method calls for the creation of the menu bar and for the creation of the viewer that allows the user to do 3D manipulations.

Creating the Menu Bar

void CAAGemBrowserDocument::CreateMenuBar()
{
   CATDlgBarMenu* pMainMenu = NULL;
   pMainMenu = new CATDlgBarMenu(this,"MainMenu");

   CATDlgSubMenu* pFileMenu = NULL;
   pFileMenu = new CATDlgSubMenu(pMainMenu,"File");

   CATDlgPushItem* pOpenItem = NULL;
   pOpenItem = new CATDlgPushItem(pFileMenu,"Open");

   AddAnalyseNotificationCB(pOpenItem,
                            pOpenItem->GetMenuIActivateNotification(),
                            (CATCommandMethod)&CAAGemBrowserDocument::Open,
                            NULL);

   CATDlgPushItem* pCloseItem=NULL;
   pCloseItem = new CATDlgPushItem(pFileMenu,"Close");
   AddAnalyseNotificationCB(pCloseItem,
                            pCloseItem->GetMenuIActivateNotification(),
                            (CATCommandMethod)&CAAGemBrowserDocument::Close,
                            NULL);

   CATDlgPushItem * pExitItem =NULL;
   pExitItem = new CATDlgPushItem(pFileMenu,"Exit");
   AddAnalyseNotificationCB(pExitItem,
                            pExitItem->GetMenuIActivateNotification(),
                            (CATCommandMethod)&CAAGemBrowserDocument::Exit,
                            NULL);
   AddAnalyseNotificationCB(this,
                            GetWindCloseNotification(),
                            (CATCommandMethod)&CAAGemBrowserDocument::Exit,
                            NULL);
}

The CreateMenuBar method creates the menu and menu items. Since the declaration of an external resource file has been made in the header, the items will be displayed according to the chosen language.

Moreover, this method sets the callbacks to trigger the appropriate method when a specific control is activated.

If the File/Open menu is selected, a file selector window is activated
If the File/Close menu is selected, the model visualization disappears
If the File/Exit menu is selected, this ends the application.

Creating the Viewer

The 3D navigation viewer is an instance of the CATNavigation3DViewer class. It is created in the CreateViewer method of the CAAGemBrowserDocument class that is called when the application is launched.

void CAAGemBrowserDocument::CreateViewer()
{
  // The window contains a 3DViewer which allows the user to do 3D Manipulations
  _p3DViewer = new CATNavigation3DViewer( this, "3DViewerId",CATDlgFraNoTitle, 800, 450);

  // Changes the color of the background
  _p3DViewer->SetBackgroundColor(0.2f,0.2f,0.6f);

  // The Viewer is attached to the 4 sides of the Window
  Attach4Sides( _p3DViewer);
}

The _pViewer pointer to the 3D navigation viewer is kept as a data member of the CAAGemBrowserDocument class. The Attach4Sides method attaches the four sides of the viewer to those of the window. This makes the viewer occupy the whole window space.

Managing the Open Callback

Once the user clicks on the File/Open item, the following callback is triggered:

void CAAGemBrowserDocument::Open  (CATCommand           * iSendingCommand,
                                   CATNotification      * iSentNotification,
                                   CATCommandClientData   iUsefulData)
{
  // Creates a File box
  _pFileSelector = new CATDlgFile(this,"FileBox",NULL);
  _pFileSelector->SetVisibility(CATDlgShow);

  // Sets the authorized types
  CATUnicodeString nameExtension = CATUnicodeString("NCGM files");
  CATString filterExtension = CATString("*.NCGM");
  _pFileSelector->SetFilterStrings(&nameExtension, &filterExtension, 1);

  // callbacks on the FileBox interactions
  AddAnalyseNotificationCB(_pFileSelector,
                           _pFileSelector->GetDiaCANCELNotification(),
                           (CATCommandMethod)&CAAGemBrowserDocument::Cancel,
                           NULL);
  int iTypeOfInput = 0;
  AddAnalyseNotificationCB(_pFileSelector,
                           _pFileSelector->GetDiaOKNotification(),
                           (CATCommandMethod)&CAAGemBrowserDocument::OpenOK,
                           &iTypeOfInput);
}

This method creates a File Box to select the file to display. The authorized type of file extension is *NCGM. Once again, callbacks are set to trigger methods when a specific control is activated. In particular, the OpenOK method opens the file and visualizes the created objects of the CATGeoFactory container.

Loading the Geometry Factory

The OpenOK callback:

Retrieves the file to open: GetSelection
Loads the CATGeoFactory: CATLoadCGMContainer
Creates the representations: CreateModelRepresentation
Draws the representations: VisualizeModel.

void CAAGemBrowserDocument::OpenOK(CATCommand           * iSendingCommand,
                                   CATNotification      * iSentNotification,
                                   CATCommandClientData   iUsefulData)
{
  // Retrieves the file name
  CATUnicodeString fileName;
  _pFileSelector->GetSelection(fileName);
  delete _pFileSelector;
  _pFileSelector=NULL;

  // Closes the precedeeding factory, if any
  Close(iSendingCommand,  iSentNotification,  iUsefulData);

  // Loads the geometry factory
#ifdef _WINDOWS_SOURCE
  ifstream filetoread(fileName, ios::binary ) ;
#else
  ifstream filetoread(fileName,ios::in,filebuf::openprot) ;
#endif

  _piGeomFactory=::CATLoadCGMContainer(filetoread);
  filetoread.close();

  // Creates the  representation
  CreateModelRepresentation();

  // Draws
  VisualizeModel();
}

The CreateModelRepresentation method begins by creating the representation bag to attach to the viewer.

void CAAGemBrowserDocument::CreateModelRepresentation()
{
  // The Top of the  representation tree
    _pTheModelToDisplay = new CAT3DBagRep();

  // Scans the geometry factory to retrieve the objects to visualize
  if (NULL != _piGeomFactory)
  {
    float sag = 0.1f;
    CAAGemRep browser(_piGeomFactory,sag);
    CATGeometry* piCurrent = NULL ;
    while ( piCurrent = _piGeomFactory->Next ( piCurrent ) )
    {
      CAT3DRep * pRep =NULL;
      browser.CreateRep(piCurrent, pRep);
      if ( NULL != pRep )
      {
        _pTheModelToDisplay->AddChild(*pRep);
      }
    }
  }
}

Then, it defines the CAAGemRep object to compute the representations of the geometric objects. The CATGeoFactory is scanned by the Next method in order to retrieve the objects to visualize. The representation of an object is created by the CreateRep method of CATGemRep, and added (AddChild) to the representation bag.

The visualization is done by the VisualizeModel method.

void CAAGemBrowserDocument::VisualizeModel()
{
   if ( (NULL != _p3DViewer) && ( NULL != _pTheModelToDisplay) )
   {
      // Attaches the bag to the viewer
      _p3DViewer->AddRep((CAT3DRep*)_pTheModelToDisplay);

      // Reframes on the current bounding sphere
      const CAT3DBoundingSphere boundingSphere = _pTheModelToDisplay->GetBoundingElement();
      _p3DViewer->ReframeOn(boundingSphere);

      // Instruction to do at each  representation modification
      _p3DViewer->Draw();
   }
}

The bag representation is attached to the viewer
The visualization is reframed on the bounding box of the model
The viewer is drawn.

Creating the Representations

CAAGemRep is the class dedicated to the creation of the representations.

... // GeometricObjects forward declarations

... // Tessellation forward declarations
class CAT3DRep;

#include "CATBoolean.h"

class CAAGemRep
{
  public:
    CAAGemRep(CATGeoFactory * ipiGeomFactory, float iSag);
    ~CAAGemRep();

    //  Creates the  representation of a geometric object
    void CreateRep(CATGeometry * ipiToView, CAT3DRep *& iopRep);

    //  Creates the  representation of a body
    void CreateBodyRep(CATBody * ipiBody, CAT3DRep *& iopRep);

    //  Creates the  representation of a face
    //  The arguments are the output of the tessellation cell or body operators
    void CreateSurfaceRep(CATBoolean          iPlane,
                          CATSide             iSide,
                          CATTessPointIter  * iPoints,
                          CATTessStripeIter * iStrips,
                          CATTessFanIter    * iFans,
                          CATTessPolyIter   * iPolygons,
                          CATTessTrianIter  * iTriangles,
                          CAT3DRep *& iopRep);

    //  Creates the  representation of a plane
    void CreatePlaneRep(CATPlane *piPlane, CAT3DRep *& iopRep);

    //  Creates the  representation of an edge
    //  The arguments are the output of the tessellation cell or body operator
    void CreateEdgeRep  (CATEdge * ipiEdge,
                         long & ioNumOfPoints,
                         float * oaPoints,
                         CAT3DRep *& iopRep);

    //  Creates the  representation of a curve
    //  The arguments are the output of CATCurveTessellator
    void CreateCurveRep (long & ioNumOfPoints,
                         float * oaPoints,
                         CAT3DRep *& iopRep);

    //  Creates the  representation of a line
    void CreateLineRep(CATLine *piLine, CAT3DRep *& iopRep);

    //  Creates the  representation of a point
    void CreatePointRep  (CATMathPoint & point,CAT3DRep *& iopRep);

  private:
    CAAGemRep ();
    CAAGemRep(const CAAGemRep &iObjectToCopy);

    CATGeoFactory * _piGeomFactory; // The geometry factory that is visualized
    float          _sag;           // The tessellation sag
};

CreateRep directs the creation of different kinds of representations, according to the different types of objects
CreateBodyRep tessellates a body and creates the corresponding representation
CreateSurfaceRep creates the representation of a surface from the results of a tessellation operator
CreateEdgeRep creates the representation of a curve from the results of a tessellation operator
CreateCurveRep creates the representation of a curve (that is not a line) from the results of a tessellation operator
CreateLineRep directly creates the representation of a line
CreatePlaneRep directly creates the representation of a plane
CreatePointRep directly creates the representation of a point.

The private data are the pointer to the CATGeoFactory container that is visualized, and the sag used to define the tessellation [2].

The structure of the CreateRep method is as follows:

void CAAGemRep::CreateRep(CATGeometry * ipiToView, CAT3DRep *& iopRep)
{

  if (NULL!= ipiToView)
  {
    // ------ Body visualization
    if (0!=ipiToView->IsATypeOf(CATBodyType))
    {
       CATBody * piBody=(CATBody * )ipiToView;
       CreateBodyRep(piBody,iopRep);
    }
    // ------ Curve visualization
    else if (0!=ipiToView->IsATypeOf(CATCurveType))
    {
       if (0== ipiToView->GetUseCount())      // to only visualize alone curves
       {
         // ------ Line
         if (0!=ipiToView->IsATypeOf(CATLineType))
         {
            CATLine * piLine=(CATLine*)ipiToView;
            CreateLineRep(piLine,iopRep);
         }
         else
         // ------ other curves
         {
            ... --> use a CATCurveTessellator
         }
       }
    }
    // ------ Surface
    else if (0!=ipiToView->IsATypeOf(CATSurfaceType))
    {
       CATSurface * piSurface = (CATSurface * )ipiToView;

        if (0== ipiToView->GetUseCount()) // only visualizes surfaces that are not pointed to
        {
         // ----- Plane
         if(ipiToView->IsATypeOf(CATPlaneType))
         {
            CATPlane * piPlane=(CATPlane*)ipiToView;
            CreatePlaneRep(piPlane,iopRep);
         }
         else
         // Other surfaces
         {
           ... --> use CATSurfaceTessellator
         }
       }
    }
    // Point
    else if (0!=ipiToView->IsATypeOf(CATPointType))
    {
       if (0== ipiToView->GetUseCount())
       {
          CATPoint * piPoint = (CATPoint*)ipiToView;
          CATMathPoint point;
          piPoint->GetMathPoint(point);
          CreatePointRep(point,iopRep);
       }
    }
  }
}

The creation of the representations is managed according to the type of the geometric object, retrieved with the CATICGMContainer::IsATypeOf method. In case of surfaces, curves, or points, the choice of the use case is to visualize only objects that are not pointed to by any other object. Hence the CATICGMObject::GetUseCount returns if an object is pointed to or not.

We now examine in detail all the type of geometry: point, line, curve, plane, surface and body.

Representation of a Point

The coordinates of the point are directly passed to the constructor of the representation.

void CAAGemRep::CreatePointRep  (CATMathPoint & point,CAT3DRep *& iopRep)
{
   // Gets the coordinates of the point
   double ioFirstCoord,ioSecondCoord,ioThirdCoord;
   point.GetCoord(ioFirstCoord,ioSecondCoord,ioThirdCoord);
   float aCoord[3];
   aCoord[0]= (float)ioFirstCoord;
   aCoord[1]= (float)ioSecondCoord;
   aCoord[2]= (float)ioThirdCoord;

   // Creates the rep
   CAT3DPointRep *rep = new CAT3DPointRep(aCoord,FULLCIRCLE);

   // Returns the rep
   iopRep = rep;
}

Representation of a Line

The lines have a specific treatment: they do not need to be discretized. Two cases are considered: finite (or trimmed) and infinite lines. To know if a line is infinite, the model size of the CATGeoFactory container is retrieved (GetModelSize). The model size defines the maximum bounding box of the model [3] and one tests whether this maximum bounding box includes the extremities of the curve.

void CAAGemRep::CreateLineRep(CATLine *piLine, CAT3DRep *& iopRep)
{
  CAT3DRep *pRep = NULL;

  CATCrvParam startParam, endParam  ;
  piLine->GetStartLimit(startParam);
  piLine->GetEndLimit(endParam);

  // The start and end points of the line
  CATMathPoint startPoint =piLine->EvalPoint(startParam);
  CATMathPoint endPoint =piLine->EvalPoint(endParam);
  CATMathPointf start, end;
  start.x = (float) startPoint.GetX();
  start.y = (float) startPoint.GetY();
  start.z = (float) startPoint.GetZ();
  end.x   = (float) endPoint.GetX();
  end.y   = (float) endPoint.GetY();
  end.z   = (float) endPoint.GetZ();

  // Is the line infinite?
  double infinity=piLine->GetContainer()->GetModelSize();
  CATMathBox boxInfinite(-infinity,infinity,-infinity,infinity,-infinity,infinity) ;
  int isFinite = (boxInfinite.IsContaining(startPoint)
                    && boxInfinite.IsContaining(endPoint) ) ? 1 : 0;

  if ( isFinite )
  {
    // Creates the rep of the finite line
    CAT3DLineRep* pRepresentation = new CAT3DLineRep();
    pRepresentation->Modify(start,end);
    pRep = pRepresentation;
  }
  else
  {
    // Creates a special rep: an arrow
    CATMathLine line(startPoint,endPoint);
    CATMathPoint origin, projpt;
    line.Project(origin,projpt);
    CATMathVector vect;
    line.GetDirection(vect);

    CATMathPointf  ptf((float)projpt.GetX(), (float)projpt.GetY(), (float)projpt.GetZ());
    CATMathVectorf tf(vect);

    CAT3DCustomRep  * pBagGP = new CAT3DCustomRep();
    CAT3DFixedArrowGP* pArrow = new CAT3DFixedArrowGP(ptf,tf, 40, 2);
    CATGraphicAttributeSet attribute;
    pBagGP->AddGP(pArrow,attribute);
    pRep = pBagGP;
  }
  // Returns the rep
  iopRep = pRep;
}

In case of a finite line, a CAT3DLineRep instance is modified to be trimmed by the start and end limits of the line, thus defining the representation of the line.

In case of an infinite line, an arrow is visualized: a CAT3DFixedArrowGP is created at the origin of the line, along its direction. The total arrow length is 40 millimeters, and the head height is 2 millimeters.

Representation of a Curve

We are here in the CreateRep method of CAAGemRep. We describe now the code under the other curves comment.

In case of a curve, the program first checks that the curve is not degenerated. The bounding box of the current limits is first retrieved with the CATCurve::GetBox method, the length of its diagonal is then computed. If this length is

Less than the factory resolution (CATGeoFactory::GetResolution), the representation of a point is created. The point is evaluated with CATCurve::Eval.
Greater than the factory resolution. The CATCurveTessellator operator computes the data used to create the representation of a curve. The representation itself is created in the CreateCurveRep method that is later detailed.

// piCurve is the pointer to the interface of a curve to visualize
// Is the curve a curve or a point? Gets the bounding box of its limits.
CATMathBox boundingBox;
CATMathPoint low,high;
CATCrvLimits limits;
piCurve->GetLimits(limits);
piCurve->GetBox(limits,boundingBox);
boundingBox.GetLow(low);
boundingBox.GetHigh(high);
CATMathVector diagonal=high-low;
double diagonalLength= diagonal.Norm();

// really a curve to visualize
if ( diagonalLength > _piGeomFactory->GetResolution() )
{
  CATCurveTessellator * pCurveTess = new CATCurveTessellator(_sag);
  if (NULL!=pCurveTess)
  {

    pCurveTess -> AddCurve(piCurve, limits);
    pCurveTess -> Run();

    // Retrieves the tessellation results
    long  numOfPoints;
    float * aPoints= NULL;
    pCurveTess-> GetCurve (piCurve, numOfPoints, &aPoints);

    // Creates the rep
    CreateCurveRep (numOfPoints,aPoints,iopRep);

    delete pCurveTess;
    pCurveTess=NULL;
  }
}
// The curve is a point
else
{
  CATCrvParam crvParam;
  piCurve->GetStartLimit(crvParam);
  CATMathPoint pt;
  piCurve->Eval(crvParam, CATCrvEvalCommand::EvalPoint, &pt);
  CreatePointRep(pt,iopRep);
}

To use the CATCurveTessellator operator:

Create it
Add the curve(s) to tessellate, and precise their limits
Run it
Get the tessellation results
Delete it

The tessellation results are used by the method CreateCurveRep of CAAGemRep to create the representation as follows.

void CAAGemRep::CreateCurveRep  (long & ioNumOfPoints,
                                 float * oaPoints,
                                 CAT3DRep *& iopRep)
{
  CAT3DCurveRep*   pCurveRep = NULL;

  // Creates the rep
  CAT3DPolylineGP* polylineGP = new CAT3DPolylineGP(oaPoints, ioNumOfPoints, 1);
  pCurveRep  = new CAT3DCurveRep();
  pCurveRep->AddWireframeLOD(0,polylineGP, _sag);

  // Defines the bounding box
  float xmin=1.e+10,ymin=1.e+10,zmin=1.e+10,xmax=-1.e+10,ymax=-1.e+10,zmax=-1.e+10;
  for (int j=0, curj=0; j<ioNumOfPoints; j++, curj+=3)
  {
    if(oaPoints[curj+0] < xmin) xmin=oaPoints[curj+0];
    if(oaPoints[curj+1] < ymin) ymin=oaPoints[curj+1];
    if(oaPoints[curj+2] < zmin) zmin=oaPoints[curj+2];
    if(oaPoints[curj+0] > xmax) xmax=oaPoints[curj+0];
    if(oaPoints[curj+1] > ymax) ymax=oaPoints[curj+1];
    if(oaPoints[curj+2] > zmax) zmax=oaPoints[curj+2];
  }
  CATMathPointf center((float) (xmin+xmax)/2.f,
                       (float) (ymin+ymax)/2.f,
                       (float) (zmin+zmax)/2.f);
  double radius= sqrt((xmax-xmin)*(xmax-xmin)+
                      (ymax-ymin)*(ymax-ymin)+
                      (zmax-zmin)*(zmax-zmin))/2.f;
  pCurveRep->SetBoundingElement(CAT3DBoundingSphere(center, (float)radius));

  // Returns the rep
  iopRep = pCurveRep;
}

The representation of a curve is a collection of graphic polylines CAT3DPolylineGP, each one representing a level of detail (LOD). Here, one LOD is added to the curve representation (AddWireframeLOD), with a level a detail having _sag as the corresponding sag value. Finally, the bounding box is computed from the tessellation results and set to the curve representation.

Representation of a Plane

The origin and the axes of the plane are directly passed to the constructor of the representation. As the plane is infinite, a given size is fixed. The associated bounding sphere is also set to the representation.

void CAAGemRep::CreatePlaneRep(CATPlane *piPlane, CAT3DRep *& iopRep)
{
  CATMathPlane plane;

  // Gets the mathematical definition
  piPlane->GetAxis(plane);
  CATMathPoint      center = plane.GetOrigin();
  CATMathDirection  vAxis  = plane.GetSecondDirection();
  CATMathDirection  uAxis  = plane.GetFirstDirection();
  CATMathPointf     origin((float) center.GetX(),
                           (float) center.GetY(),
                           (float) center.GetZ());
  CATMathDirectionf u((float) uAxis.GetX(),
                      (float) uAxis.GetY(),
                      (float) uAxis.GetZ());
  CATMathDirectionf v((float) vAxis.GetX(),
                      (float) vAxis.GetY(),
                      (float) vAxis.GetZ());

  float size = 20.f;
  float radius  = 15.f;

  // Creates the rep
  CAT3DPlanRep *pRep = new CAT3DPlanRep(origin,u,v,size);

  CAT3DBoundingSphere *pBe = new CAT3DBoundingSphere(origin,0.f,radius);
  pRep->SetBoundingElement(*pBe);
  delete pBe;
  pBe=NULL;

  // Returns the rep
  iopRep = pRep;
}

Representation of a Surface

We are here in the CreateRep method of CAAGemRep. We describe now the code under the other surfaces comment.

The surface is first tessellated with CATSurfaceTessellator.

// piSurface is the pointer to the surface to visualize
CATSurLimits limits;
piSurface->GetLimits(limits);
CATSurfaceTessellator * pSurfTess = new CATSurfaceTessellator(_sag);
if (NULL!=pSurfTess)
{
  pSurfTess -> AddSurface(piSurface, limits);
  pSurfTess -> Run();

  CATBoolean isPlanar;
  CATTessPointIter *    pPoints    = NULL;
  CATTessStripeIter *   pStrips    = NULL;
  CATTessFanIter *      pFans      = NULL;
  CATTessPolyIter *     pPolygons  = NULL;
  CATTessTrianIter *    pTriangles = NULL;

  pSurfTess -> GetSurface(piSurface,isPlanar,
                          &pPoints,&pStrips,&pFans,&pPolygons,&pTriangles);
  CATSide side=CATSideUnknown;
  CreateSurfaceRep(isPlanar,side, pPoints, pStrips,pFans, pPolygons, pTriangles,iopRep);

  delete pSurfTess;
  pSurfTess=NULL;

To use the CATSurfaceTessellator operator:

Create it
Add the surface(s) to tessellate, and precise their limits
Run it
Get the tessellation results
Delete it

The tessellation results are used by the method CreateSurfaceRep of CAAGemRep to create the representation as follows:

Computing the normals and the bounding box: the iterator on the points is used
Retrieving the isolated triangles with CATTessTrianIter
Retrieving the triangle strips with CATTessStripeIter
Creating the graphic primitives.

We now detail the use of the point iterator to retrieve the normals in case of a non-planar surface.

// allocation of the arrays
  long numberOfPoints = ipPoints->GetNbPoint();
  if (numberOfPoints == 0) return ;

  long verticesArraySize = numberOfPoints*3 ;
  float * vertices = new float [verticesArraySize];
  long normalsArraySize = verticesArraySize ;
  float * normals = new float [normalsArraySize];

// iterator on the points
// ipPoints is the CATTessPointIterator retrieved from the tessellator
  i = 0 ;
  double const  * ptd;
  while ( ipPoints->IsExhausted()==0 )
  {
    ptd = ipPoints->GetPointXyz();
    vertices[i  ] = (float) ptd[0] ;
    vertices[i+1] = (float) ptd[1] ;
    vertices[i+2] = (float) ptd[2] ;

    if (xmin > vertices[i  ]) xmin=vertices[i  ];
    if (ymin > vertices[i+1]) ymin=vertices[i+1];
    if (zmin > vertices[i+2]) zmin=vertices[i+2];
    if (xmax < vertices[i  ]) xmax=vertices[i  ];
    if (ymax < vertices[i+1]) ymax=vertices[i+1];
    if (zmax < vertices[i+2]) zmax=vertices[i+2];

    if (!iPlane) { // the surface is not a plane
      CATBoolean b = ipPoints->GetPointNor(vector);
      if ( b )
      {
        if (ori<0)
        {// the normal must be inverted
          normals[i+0] = (float) -vector->GetX() ;
          normals[i+1] = (float) -vector->GetY() ;
          normals[i+2] = (float) -vector->GetZ() ;
        } else {
          normals[i+0] = (float) vector->GetX() ;
          normals[i+1] = (float) vector->GetY() ;
          normals[i+2] = (float) vector->GetZ() ;
        }
      } else {
        // default normal: it is not computed by the tessellation
        normals[i+0] = 1.0 ;
        normals[i+1] = 0.0 ;
        normals[i+2] = 0.0 ;
      }
    }
    i +=3  ;
    ipPoints->GoToNext();
  }

CATTessPointIterator::GetNbPoints outputs the number of points computed by the tessellation. Now, the iterator is used as follows:

The IsExhauted method declares whether the end is reached. If there is no points anymore, it returns 0.
The GetPointXyz returns the current point. The coordinates of this point are then put in the array that will be passed to the graphic primitive creation.
The GetPointNor returns the normal to the surface at the current point. The coordinates of this normal are also put in an array to be later used.
The GoToNext method skips to the next point of the iterator.

Now, the isolated triangles are read with the CATTessTrianIter iterator created by the tessellator. Its use is similar to the use of a CATTessPointIter.

  long  numberOfTriangles = ipTriangles->GetNbTrian();
  if ( NULL!= numberOfTriangles )
  {
    triangleIndice = new int [3 * numberOfTriangles] ;
    i = 0 ;
    while ( ipTriangles->IsExhausted()==0 ) {
      ipTriangles->GetTrianNuPts(NuPts);

      if (ori <0) {
        // triangles must be inverted
        triangleIndice[i]   =  NuPts[2]*3 ;
        triangleIndice[i+1] =  NuPts[1]*3 ;
        triangleIndice[i+2] =  NuPts[0]*3 ;
      } else {
        triangleIndice[i]   = NuPts[0]*3 ;
        triangleIndice[i+1] = NuPts[1]*3 ;
        triangleIndice[i+2] = NuPts[2]*3 ;
      }
      i += 3 ;
      ipTriangles->GoToNext();
    }
  }

As this method is also used to create the representation of a face, the relative orientation of the face and the surface is taken into account here by the ori value, initialized with the corresponding output of the tessellator. In the same way, the strips of triangles are retrieved.

  long TotalPointNb=0;
  long numberOfStrips = ipStrips->GetNbStri(TotalPointNb) ;
  if ( numberOfStrips ) {
    nbVertexPerTriangleStrip = new int [numberOfStrips] ;
    triangleStripIndice = new int [TotalPointNb] ;
    i = 0 ;
    j = 0 ;
    while ( ipStrips->IsExhausted()==0 ) {
      nbVertexPerTriangleStrip[i] = ipStrips->GetStriNbPts();
      ipStrips ->GetStriNuPts( &(triangleStripIndice[j]) ) ;
      for ( k=0 ; k < nbVertexPerTriangleStrip[i] ; k++ ) {
        triangleStripIndice[j+k] *= 3 ;
      }
      if (ori <0) {
        // Inverts to strip: Swap 2 by 2
        int m=0 ;
        for ( int l=0; l<(nbVertexPerTriangleStrip[i])/2 ;l++) {
          int i1 = triangleStripIndice[j+m];
          triangleStripIndice[j+m] = triangleStripIndice[j+m+1];
          triangleStripIndice[j+m+1] = i1 ;
          m +=2 ;
        }
      }
      j += nbVertexPerTriangleStrip[i] ;
      i += 1;
      ipStrips->GoToNext();
    }
  }

Now, the representation can be created.

  CAT3DFaceGP * faceGP = NULL;
  if ( iPlane )
    faceGP = new CAT3DPlanarFaceGP(vertices,verticesArraySize,
                                   normals,
                                   triangleIndice,numberOfTriangles,
                                   triangleStripIndice, numberOfStrips, nbVertexPerTriangleStrip,
                                   triangleFanIndice,  numberOfFans,  nbVertexPerTriangleFan);

  else

    faceGP = new CAT3DFaceGP(vertices,verticesArraySize,
                             normals,normalsArraySize,
                             triangleIndice,numberOfTriangles,
                             triangleStripIndice, numberOfStrips, nbVertexPerTriangleStrip,
                             triangleFanIndice,numberOfFans,nbVertexPerTriangleFan);

  if (NULL!=vertices)                 delete [] vertices;
  if (NULL!=normals)                  delete [] normals;
  if (NULL!=triangleIndice)           delete [] triangleIndice ;
  if (NULL!=triangleStripIndice)      delete [] triangleStripIndice ;
  if (NULL!=nbVertexPerTriangleStrip) delete [] nbVertexPerTriangleStrip ;
  if (NULL!=triangleFanIndice )       delete [] triangleFanIndice ;
  if (NULL!=nbVertexPerTriangleFan )  delete [] nbVertexPerTriangleFan ;

  CAT3DCustomRep * pSurfacicRep = new CAT3DCustomRep();
  CATGraphicAttributeSet ag ;
  ag.SetType(2);
  pSurfacicRep->AddGP(faceGP,ag);

  // Gets the bounding box
  CATMathPointf Center(float((xmin+xmax)/2.),
                       float((ymin+ymax)/2.),
                       float((zmin+zmax)/2.));
  double BoundingSphereRadius= sqrt((xmax-xmin)*(xmax-xmin)+
                                    (ymax-ymin)*(ymax-ymin)+
                                    (zmax-zmin)*(zmax-zmin))/2.;
  CAT3DBoundingSphere BoundingSphere( Center, float(BoundingSphereRadius));
  pSurfacicRep->SetBoundingElement(BoundingSphere);

The graphic primitive is first created: it is a CAT3DPlanarFaceGP for a planar surface or a CAT3DFaceGP for a non-planar surface. This primitive is added to a new CAT3DCustomRep. The computed bounding box is set with the SetBoundingElement method, thus ending the construction of the surface representation.

Representation of a Body

All the previous methods are used to create the representation of a body. CATCellTessellator is used to create data needed by the CreateSurfaceRep and CreateCurveRep methods. The faces, edges of wire domains, and vertices in volume are tessellated. In particular, neither the edges of the face, nor the vertices of the edges are represented.

void CAAGemRep::CreateBodyRep(CATBody * ipiBody, CAT3DRep *& iopRep)
{
 iopRep=NULL;
 CAT3DBagRep* pBagRep = NULL;
 pBagRep = new CAT3DBagRep();

 CATCellTessellator * pTessellator = new CATCellTessellator(_sag);

 //--------------------------------------------------
 // Tessellates the faces
 //--------------------------------------------------
 if (NULL!=pTessellator)
 {
   // Retrieves all the faces
   CATLISTP(CATCell) cells;
   ipiBody->GetAllCells( cells,2);   // 2 for retrieving the faces
   int numberOfCells = cells.Size();

   for (int ifa=1 ; ifa<=numberOfCells ; ifa++)
   {
     pTessellator->AddFace((CATFace *)(cells[ifa]));
   }
   pTessellator -> Run();

   // for each face, retrieve the tessellation results

   for (ifa=1 ; ifa<=numberOfCells ; ifa++)
   {
     CATFace * piFace = (CATFace*) cells[ifa];

     // a special visualization for infinite face
     if (TRUE== piFace->GetInfinite())
     {
       CATOrientation ori;
       CATGeometry*    piGeom= piFace->GetGeometry(&ori);
       if (NULL!= piGeom && piGeom->IsATypeOf(CATPlaneType) )
       {
          CATPlane * piPlane = (CATPlane *)piGeom;
          CAT3DRep* pRep=NULL;
          CreatePlaneRep(piPlane,pRep);
          if (NULL!=pRep)
         {
          if (NULL== pBagRep) pBagRep = new CAT3DBagRep();
          pBagRep->AddChild(*pRep);
         }
       }
     }
     else
     {
       CATBoolean isPlanar;
       CATTessPointIter *    pPoints  = NULL;
       CATTessStripeIter *   pStrips    = NULL;
       CATTessFanIter *      pFans      = NULL;
       CATTessPolyIter *     pPolygons  = NULL;
       CATTessTrianIter *    pTriangles = NULL;
       short side;

       pTessellator -> GetFace(piFace,isPlanar,&pPoints,&pStrips,&pFans,&pPolygons,&pTriangles,&side);
       CAT3DRep * pRep=NULL;
       CreateSurfaceRep(isPlanar, side, pPoints, pStrips,pFans, pPolygons, pTriangles,pRep);
       if (NULL!=pRep)
       {
          if (NULL== pBagRep) pBagRep = new CAT3DBagRep();
          pBagRep->AddChild(*pRep);
       }
     }
   }
   delete pTessellator;
   pTessellator = NULL;
 }

 //--------------------------------------------------
 // Now tessellate the wire domains (not the edges of faces)
 //--------------------------------------------------
 // ......

 // Returns the rep
 iopRep=pBagRep;
}

All the faces of the body are retrieved in one shot with the GetAllCells method of the CATTopology interface from which the body derives. The 2 value is the dimension for the faces. All these faces are Added to CATCellTessellator, that is then Run. Now, for each face, the results are retrieved:

If the face is infinite, the representation of a plane is created, if the associated geometry is a plane
Otherwise, the GetFace method of the CATCellTesselator returns all the data that is needed to create the representation of a surface.

The tessellator is deleted after use.

The way to create the representation of the vertices in volume and the edges of the wires is very similar.

// the number of domains
 long nbDomains= ipiBody->GetNbDomains();
 CATLISTP(CATCell)  cells;
 int numberOfCells =0;

 for (int dom = 1;dom<=nbDomains;dom++)
 {
   CATDomain * piDomain = ipiBody->GetDomain( dom );

   // ------ Wire
   if (NULL!=piDomain && 1==(piDomain->IsATypeOf(CATWireType)) )
   {
     // Creates a cell tessellator
     pTessellator = new CATCellTessellator(_sag);
     if (pTessellator!=NULL)
     {
       // Retrieves the number of edges of the wire
       cells.RemoveAll();
       piDomain->GetAllCells(cells,1);
       numberOfCells = cells.Size();

       // Adds the edges to tessellate
       for  (int i=1 ; i<=numberOfCells ; i++)
       {
         CATEdge * piEdge = (CATEdge*) cells[i];
         pTessellator -> AddEdge(piEdge);
       }

       // Runs it
       pTessellator->Run();

       // for each each edge
       for  ( i=1 ; i<=numberOfCells ; i++)
       {
         CATEdge * piEdge = (CATEdge*) cells[i];
         long  numOfPoints;
         float   * aPoints= NULL;

         // Retrieves the tessellation results
         pTessellator -> GetEdge(piEdge,numOfPoints,&aPoints);

         CAT3DRep * pRep=NULL;

         // Creates the rep
         CreateEdgeRep (piEdge, numOfPoints,aPoints,pRep);
         if (NULL!=pRep)
         {
          if (NULL== pBagRep) pBagRep = new CAT3DBagRep();
          pBagRep->AddChild(*pRep);
         }
       }
       delete pTessellator;
       pTessellator = NULL;
     }
   }

   //  ----- and the points
   else if(NULL!=piDomain && 1==(piDomain->IsATypeOf(CATVertexInVolumeType)))
   {

     CATCell * piCell = piDomain->GetCell(1);
     if (NULL!=piCell)
     {
       CATVertex * piVertex=(CATVertex * )piCell;

       // Gets the geometry of the vertex
       CATPoint * piPoint = piVertex->GetPoint();

       // Creates the rep
       CAT3DRep * pRep=NULL;
       CATMathPoint point;
       piPoint->GetMathPoint(point);
       CreatePointRep  (point,pRep);
       if (NULL!=pRep)
       {
          if (NULL== pBagRep) pBagRep = new CAT3DBagRep();
          pBagRep->AddChild(*pRep);
       }

     }
   }
 }

We first loop on all the domains of the body. GetDomain returns the pointer to the i-th domain.

If the domain is a wire
- all the edges of this wire are retrieved: GetAllCells is called with 1
- They are Added to the created CATCellTessellator
- The tessellator is Run
- For each edge, the tessellation results are retrieved: GetEdge
- These results are passed to CreateEdgeRep that created the representation
- The tessellator is deleted after use.
If the domain is a vertex in volume
- The unique cell of this domain is retrieved
- The representation of the corresponding point is created.

Representation of an Edge

The representation is created in a very similar way as in the curve case. They only differ by the process of the degenerated elements

void CAAGemRep::CreateEdgeRep  (CATEdge * ipiEdge,
                                long & ioNumOfPoints,
                                float * oaPoints,
                                CAT3DRep *& iopRep)
{
  CAT3DRep *pRep = NULL;

  CATMathBox boundingBox;
  CATMathPoint low,high;

  ipiEdge->GetBoundingBox(boundingBox);
  boundingBox.GetLow(low);
  boundingBox.GetHigh(high);
  CATMathVector diagonal=high-low;
  double diagonalLength= diagonal.Norm();

  if ( diagonalLength > _piGeomFactory->GetResolution() )
  {
     CreateCurveRep (ioNumOfPoints,oaPoints,pRep);
  }
  // The edge is a point
  else
  {
    //Gets the coordinates of a point
    CATPointOnEdgeCurve *piStartPoec=NULL;
    ipiEdge->GetVerticesPointsOnEdgeCurve(&piStartPoec,NULL );
    CATMathPoint pt;
    piStartPoec->GetMathPoint(pt);
    CreatePointRep(pt,pRep);
  }

  // Returns the rep
  iopRep = pRep;
}

If the edge has a length greater than the factory resolution, the representation of a curve is created.

Otherwise, one point of the edge is recovered, and a representation of this point is created. Notice that to get the points extremities of an edge, the CATEdge::GetVerticesPointsOnEdgeCurve method can be used.

In Short

This use case offers the programmer a way to visualize the geometry and topology created by the CATGeoFactory. Meanwhile, it illustrates how to tessellate geometric objects.

References

[1]	Building and Launching a CAA V5 Use Case
[2]	Tessellation
[3]	The Management of Tolerances
[Top]

History

Version: 1.1 [Nov 2000]	Use of CAT3DCustomRep for the graphic representation of faces and surfaces
Version: 1 [Jun 2000]	Document created
[Top]

Copyright © 2000, Dassault Systèmes. All rights reserved.
