Mechanical Modeler

What You Will Learn With This Use Case

This use case illustrates the sub-section entitled "Adding Applicative Data" you can find in the "Technical Articles" section of the Mechanical Modeler home page.
Its main intent is to show you Extension Features specifities [2] and to explain how to use Providers[3] in order to add data and behaviors to Mechanical Features.

In this use case, you will learn to:

• Create an Extension Feature :

How to create a new StartUp of Extension Feature, how to store it in a feature's catalog and how to instantiate it.

• Create Providers:

How to define and create new Providers to extend CATPrtCont's behaviors to Applicative Container.

• Integrate your Extension and your Providers in the V5.

As Extension Features are features, they are completely described by a set of behaviors, in other words interfaces, which have to be implemented in order to integrate cleanly your new features in the V5.


The "Extending Combined Curve" use case constitutes a set of articles, each describing the creation or the integration.

[Top]

What Is a "CAAMmrCCDataExtension"

The CAAMmrCCDataExtension  is an extension feature designed to add a computed data to Combined Curves instantiated in your MechanicalPart. Its aim is to add a parameter - the computed length - to instantiated CombinedCurve.

Consequently, a CAAMmrCCDataExtension   has only one Input (the base feature it extends) and an Output (The aggregated Parameter representing the computed length)

[Top]

The "Extending Combined Curve" Use Case

The "Extending Combined Curve" is an use case of the CAAMechanicalModeler.edu framework that illustrates MechanicalModeler, MecModInterfaces and MechanicalModelerUI framework capabilities in Extension Feature Domain.

[Top]

What Does the "Extending Combined Curve" Use Case Do

The final intent of this use case is to add a computed data to instantiated Combined Curves and to extend some behaviors (Update, NavigateObject, 3DVisualisation...) on this extension feature. It can be divided into several steps:

1. Creating the new Extension Feature StartUp(CAAMmrCCDataExtension) and storing it in the catalog "CAAMmrCCDataExtensionCatalog.CATfct" using "OSM Modelling Language".

   The CATfct file has been generated using CATfctEditorAssistant tool.  The client authentication is "CAAMmrUseCase" .

2. Creating a command to instantiate the new Extension StartUp "CAAMmrCCDataExtension" into a specific applicative container -

   This command enables the end user to select a combined curve, and then uses a global method, CAAMmrAddCCExtension, to create its extension. This method creates a new instance of Extension Feature using the AddExtension API. This specs modeler API creates the extension on the Combined curve, and creates the Extension Container "CAAMmrDataExtensionCont" if it doesn't exists. It is possible thanks to a provided CATRsc file associated with the applicative container.


3. Creating an interface to modify or retrieve the input specifications of the CAAMmrCCDataExtension instances.- Creating CAAMmrCCDataExtension 's Interface of Type

In the CATIBuild implementation, or in the edition command, it is mandatory to have an access to the input specifications of the new feature. It is the role of the CAAIMmrCCDataExtension interface.


Fig.2: The CAAIMmrCCDataExtension Interface

With this interface you can retrieve or modify the value of CAAMmrCCDataExtension's Attributes.


4. Integrating the CAAMmrCCDataExtension in the V5

As an Extension Feature is like a traditional feature, we have to take into account several interfaces to integrate clearly our CAAMmrCCDataExtension in the V5.


• CATIBuild - Building CAAMmrCCDataExtension's Result

  As our extension is designed to compute something, we have to implement CATIBuild Interface. This interface enables you to build the result of the feature. Reading this technical article [5] is strongly recommended before getting to the use case.


• CATIParmPublisher - Displaying CAAMmrCCDataExtension's Result

  As CAAMmrCCDataExtension aggregating parameters, it is interesting to implement this interface to define which parameters would be displayable and "pickable" into f(x).

• CATI3DGeoVisu - Displaying CAAMmrCCDataExtension's Result

  We decide to implement CATI3DGeoVisu in order to display a 3D Representation  associated with mathematical result of CAAMmrCCDataExtension. This consists in displaying the value computed sticking it on the Extended Combined Curve 3DRepresentation.


• CATINavigateObject - Displaying CAAMmrCCDataExtension's parameter under its node in the Spec Tree

  We decided to implement CATINavigateObject on CAAMmrCCDataExtension in order to make visible it's valuated parameter under its node in the SpecTree. Nevertheless this implementation is not mandatory, since there is a default implementation of this interface on the feature extension (implemented on the feature whose derives the feature extension).


• CATINavigateFilter - Allowing CAAMmrCCDataExtension's node in the Spec Tree under the combinedcurve

This interface enables an application to display or not a child beneath its parent.  This method contains one method IsShown. You must implement this interface, otherwise the behavior is not guarantee. This interface is valid for Mechanical Modeler context, for other context refer you to the modeler's documentation.

In the use case we have decided that the extension will be not displayed beneath the combined curve. Nevertheless we have implemented CATINavigateFilter (IsShown= FALSE). The extension will be visible beneath the Part's node thanks the CATINavigateProvider implementation.

If you only want see the extension beneath the combined curve, implement CATINavigateFilter with IsShown= TRUE, and do not implement CATINavigateProvider .

In Addition, Extension Features are instantiated in a specific Applicative Container (CAAMmrDataExtensionCont) defined during the CAAIMmrCCDataExtensionFactory implementation. Consequently, we have to define Provider Mechanism to extend CATPrtCont's Behavior to this Applicative Container.
This is done in two times:

• Implementing the Providers CATIUpdateProvider / CATINavigateProvider / CATIParmProvider / CATI3DVisuProvider  - Implementing CAAMmrDataExtensionCont's Providers

  On this articles we show how to implement Providers. This implementation is done on components (in Object Modeler meaning) keeping in mind the specific context of Mechanical Part.



• Declaring those Providers to V5: CATInit - Implementing CAAMmrDataExtensionCont's Initialization:




5. Creating Interactively Instances

To create interactively new instances of the CAAMmrCCDataExtension , you will create an add-in of the Shape Design workbench into which you will add the CAAMmrCCDataExtension Creation command. Creating an Add-in in the Shape Design Workbench

[Top]

Overview of the "Extending Combined Curve" Use Case Articles

The documentation of the Extending Combined Curve Use Case contains the following articles:

[Top]

How to Launch the Extending Combined Curve Use Case

To launch the Extending Combined Curve use case, you will need to set up the build time environment, then compile the following modules of the CAAMechanicalModeler.edu framework along with their prerequisites:

• CAAMmrCombinedCurve.m,
• CAAMmrCombinedCurveAddIn.m,
• CAAMmrDebugPrtWksAddin.m,
• CAAMmrCombinedCurveReplace.m,
• CAAMmrCombinedSample.m,
• CAAMmrCombinedCurveUI.m,
• CAAMmrCreateCombCrvCatalog.m,
• CAAMmrCombinedCurveSample.m,

• CAAMmrCCDataExtension.m,
• CAAMmrCCDataExtensionAddIn.m,
• CAAMmrCCDataExtensionUI.m

Next, let's execute interactively the use case. Several steps must be followed in order to completely execute the use case:

• Launch CATIA. When the application is ready, follow scenarios described below:

The Creation scenario:

• In the Start menu choose Mechanical Design and click Generative Shape Design
• Retrieve the Combined Curve Additional toolbar which is invisible right clicking on tool bar board.
• Open a Part including "CAA Combined Curves" instances (*) or Create one "from scratch" [9].
• Extend instantiated Combined Curve using the "AddExtension" command: .

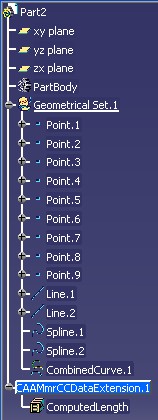

• The computed length - Extension of CombinedCurve- will appear in 3DVisualisation, And, in the Spec Tree beneath the MechanicalPart node.


• It is possible to see the computed parameter on f(x) panel and to use this value into rules. To do this, just click on f(x) icon. You will note that the computed value is in "read only mode" (The Cell containing the computed value is gray.).

The Edition scenario

• Double click the Combined Curve instance
• Change Combined Curve Specs
• Extension is updated !

The Open scenario:

• Open a Part including "Extended CAA Combined Curves" instances (*)

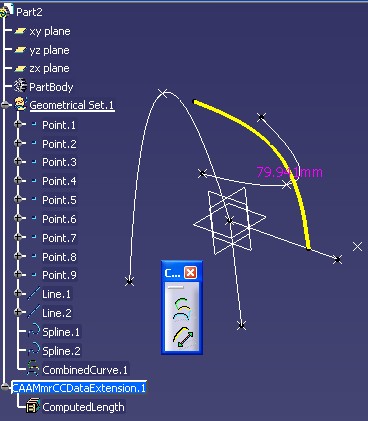

Check the visualisation in 3D, in SpecTree and the result of Extension:
All extended behaviors are automatically load on opening the part without any user action.
(This is due to Extension Container specifity: it is loaded automatically on opening the part, which is not the case for traditional applicative container.)
• Change Combined Curve Specs
• Check Modification in the 3DVisualisation and in SpecTree.

(*) The files "CAACombinedCurve.CATPart" and "CAAExtendedCombinedCurve.CATPart" are located in the directory CAAMechanicalModeler.edu/InputData

• Unix : InstallRootDirectory/CAAMechanicalModeler.edu/InputData
• Windows : InstallRootDirectory\CAAMechanicalModeler.edu\InputData

where InstallRootDirectory is the directory where the CAA CD-ROM is installed.

[Top]

Where to Find the CAAMmrCCDataExtension Code

The "Extending Combined Curve" use case is made of a several modules of the CAAMechanicalModeler.edu framework:

where InstallRootDirectory is the directory where the CAA CD-ROM is installed.

These modules are:

• CAAMmrCCDataExtension.m - This module contains the implementations of  the CATIBuild interface (manages the build operation called during the update of the Extension Feature), the CAAMmrAddCCExtension implementation (manages the CAAMmrCCDataExtension StartUp instantiation), the CAAIMmrCCDataExtension interface (manages the access to the input specifications of the Extension Feature).
  Moreover, in this module, you will find the implementations of CATIParmPublisher, CATI3DGeoVisu on the Extension Feature.
  It also contains the implementations of CATIUpdateProvider, CATINavigateProvider, CATIParmProvider and CATI3DVisuProvider to extent CATPrtCont Behavior to Applicative Container and the implementation of CATIInit on the ApplicativeContainer.
  • CAAIMmrCCDataExtension.cpp, the header file is in the PublicInterfaces directory of the CAAMechanicalModeler.edu framework
  • CAAMmrAddCCExtension.cpp, the header file is in the PublicInterfaces directory of the CAAMechanicalModeler.edu framework

  • CAAEMmrCCDataExtension.cpp, the header file is in the LocalInterfaces directory
  • CAAEMmrCCDataExtensionBuild.cpp, the header file is in the LocalInterfaces directory
  • CAAEMmrCCDataExtensionFactory.cpp, the header file is in the LocalInterfaces directory
  • CAAEMmrCCDataExtensionParmPublisher.cpp, the header file is in the LocalInterfaces directory
  • CAAEMmrCCDataExtensionVisu.cpp, the header file is in the LocalInterfaces directory
  • CAAEMmrDataExtensionContInit.cpp, the header file is in the LocalInterfaces directory
  • CAAMmrNavigateProvForExtCont.cpp, the header file is in the LocalInterfaces directory
  • CAAMmrParmProvForExtCont.cpp, the header file is in the LocalInterfaces directory
  • CAAMmrUpdateProvForExtCont.cpp, the header file is in the LocalInterfaces directory
  • CAAMmrVisuProvForExtCont.cpp, the header file is in the LocalInterfaces directory
  • CAAEMmrCCDataExtensionModelEvent.cpp, the header file is in the LocalInterfaces directory
• CAAMmrCombinedCurveAddIn.m - This module contains the implementation of the CATIShapeDesignWorkshopAddin interface for Combined Curves and Extension for Combined Curve. In other words, it defines an Add-in to the Shape Design workbench.
  • CAAEMmrCombinedCurveAdn.cpp, the header file is in the LocalInterfaces directory
• CAAMmrCCDataExtensionUI.m - This module contains the implementation of the CATINavigateObject, CATINavigateFilter interfaces and the implementation of a StateCommand to create and insert and Extension Feature on an instanciated Combined Curve.
  • CAAMmrCCDataExtensionStCmd.cpp, the header file is in the LocalInterfaces directory
  • CAAEMmrCCDataExtensionNavigateObject.cpp, the header file is in the LocalInterfaces directory
  • CAAEMmrCCDataExtensionNavFilter.cpp, the header file is in the LocalInterfaces directory

[Top]

Step-by-Step

You can now successively get to:

• Creating Extension Feature 's Catalog

• Creating CAAMmrCCDataExtension's creation method

• Creating CAAMmrCCDataExtension 's Interface of Type

• Building CAAMmrCCDataExtension's Result

• Displaying CAAMmrCCDataExtension's Result

• Implementing CAAMmrDataExtensionCont's Providers

• Implementing CAAMmrDataExtensionCont's Initialization

• Creating an Add-in in the Shape Design Workbench

[Top]

In Short

The CAAMechanicalModeler.edu "Extending Combined Curve" sample shows how to create your own Extension Feature to add parameters and behaviors to Mechanical Features.
