How to Create and Transform Geometry

Geometric Modeler	Geometry	How to Create and Transform Geometry
Use Case

Abstract

The GeometricObjects framework exposes the interfaces for the geometry: points, curves, surfaces, and some related classes (such as knot vector or surface and curve parameters for example).

The use cases illustrates the creation of geometric objects. First surface is created. Then a CATPLine is created upon it, that is later cloned and transformed. The way to create CATPLine, to use the clone and transformation managers, as well as to use the surface parameter class or the surface evaluator classes is not particular to the foreign surface, but common to all the CATIA surfaces.

The same methodology can be used to introduce foreign curves, only differing by the parent class to derive.

What You Will Learn With This Use Case
The CAAGobCreation Use Case
Step-by-Step
In Short
References

What You Will Learn With This Use Case

The use case creates an instance (piEggBox) of a surface. This surface is a "foreign" surface: its definition has been declared in another use case CAAGobForeign [5], but this do not change any operation that can be done on it. Once introduced according to the appropriate process, a foreign surface can be used as any CATIA surface.

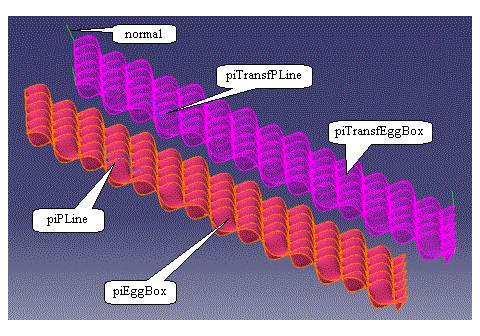

Fig 1: The "Eggs Box" Using the New Type of Surface
	Using this instance, the use case defines a CATPLine on it (`piPLine`), transforms the created CATPLine (`piTransfLine`), retrieves the corresponding underlying surface (`piTransfEggBox`), evaluates the normal at the four corners of the transformed surface. All these operations are the same for any CATIA surfaces or geometry.

[Top]

The CAAGobCreation Use Case

CAAGobCreation is a use case of the CAAGeometricObjects.edu framework that illustrates GeometricObjects framework capabilities.

[Top]

What Does CAAGobCreation Do

This use case creates a surface and use it in several geometric operations. The created surface is a foreign surface, but what is done for the foreign surface is exactly the same as what must be done for any CATIA surface: the use is the same.

[Top]

How to Launch CAAGobCreation

To launch CAAGobCreation, you will need to set up the build time environment, then compile CAAGobCreation.m and CAAGobForeign.m along with their prerequisites, set up the run time environment, and then execute the use case [6].

If you simply type CAAGobCreation with no argument, the use case executes, but doesn't save the result in an NCGM file. If you want to save this result, provide the full pathname of the NCGM file to create. For example:

With Windows CAAGobCreation e:\GeomObjectCreation.NCGM

With UNIX CAAGobCreation /u/GeomObjectCreation.NCGM

This NCGM file can be displayed using the CAAGemBrowser use case.

[Top]

Where to Find the CAAGobCreation Code

The CAAGobCreation use case is made of a main named CAAGobCreation.cpp located in the CAAGobCreation.m module of the CAAGeometricObjects.edu framework:

Windows	`InstallRootDirectory\CAAGeometricObjects.edu\CAAGobCreation.m\`
Unix	`InstallRootDirectory/CAAGeometricObjects.edu/CAAGobCreation.m/`

where InstallRootDirectory is the directory where the CAA CD-ROM is installed.

The use case uses a class defined in the CAAGobForeign use case [5].

[Top]

Step-by-Step

The main program peforms the following steps:

Creating the Geometry Factory
Creating a CATIForeignSurface with an attribute CAAForeignSurfaceData
Creating a CATPLine on the foreign surface
Cloning the CATPLine
Applying a Transform to the CATPLine
Evaluating the Normals at the four corners of the transformed surface
Writing the Model and Closing the Container

[Top]

Creating the Geometry Factory

The geometry factory (CATGeoFactory) creates and manages all the CATICGMObject (and the curves and surfaces in particular) [3]. This creation is done by the global function ::CATCreateCGMContainer. Notice that the factory can be defined by reading a NCGM file that was previously stored. In that case, the global function ::CATLoadCGMContainer must be used.

CATGeoFactory* piGeomFactory = ::CATCreateCGMContainer() ;
if (NULL==piGeomFactory) return (1);

[Top]

Creating a CATIForeignSurface

The data is an attribute of the new type CAAGobForeignSurfaceData. The attribute instance is allocated here, its deletion is directly managed by the CATIForeignSurface.

The foreign surface instance is created by the method CreateForeignSurface of the CATGeoFactory, using the created attribute.

If an error occurs, the program closes the factory and returns an error code.

CATMathPoint origin(50.,-10.,5.);
CATMathDirection directionU(1.,0.,0.), directionV(0.,1.,0.);
double uPeriod = 3. ;
double vPeriod = 5. ;
double height  = 7. ;
double uMin    = -10. ;
double uMax    = 23. ;
double vMin    = -11. ;
double vMax    = 34. ;

 // ------------ Creates the foreign data
CAAGobForeignSurfaceData* pData =
     new CAAGobForeignSurfaceData(origin,
                                  uPeriod*directionU,
                                  vPeriod*directionV,
                                  height/(uPeriod * vPeriod),
                                  uMin,
                                  uMax,
                                  vMin,
                                  vMax) ;
if (NULL==pData)
{
  ::CATCloseCGMContainer(piGeomFactory);
  return (1);
}

// ------------ Creates the surface
CATIForeignSurface* piEggBox = NULL;
piEggBox = piGeomFactory ->CreateForeignSurface(pData) ;
if (NULL==piEggBox)
{
  ::CATCloseCGMContainer(piGeomFactory);
  return (1);
}

[Top]

Creating a CATPLine

A CATPLine is a line in the space of a surface [4], whatever the surface is: directly a CATIA surface or a CATIForeignSurface. To create a CATPLine, one must specifies the starting and end points: these points are expressed in terms of parameters on the surface. No assumption must be made on the parameterization of the surface. The ways to define a CATSurParameter are:

Projecting a 3D point on the surface with the geometric operator CATProjectionPtSur
Using the CATSurface::GetParam method (only for canonical surfaces and a point that is known to be on the surface)
Using the barycentric constructor, after retrieving the limits (CATSurface::GetLimits) of the surface: this way is illustrated below.

Now, the CATPLine can be created by using the CATGeoFactory::CreatePLine method.

// Retrieves the limits of the surface
CATSurLimits surLimits;
piEggBox ->GetLimits(surLimits);
CATSurParam lowParam, highParam;
surLimits.GetExtremities(lowParam, highParam);

// Defines the starting and end parameters
double iLambdaU = 0.5;
double iLambdaV = 0.2;
// barycenter of surLimits affected with the 0.5 and 0.2 coefficients
CATSurParam start (0.5,0.2,surLimits);
iLambdaU = 0.8;
iLambdaV = 0.3;
CATSurParam end   (0.8,0.3,surLimits);

// Creates the Pline
CATPLine * piPLine = piGeomFactory->CreatePLine(start,end,piEggBox);
if (NULL==piPLine)
{
  ::CATCloseCGMContainer(piGeomFactory);
  return (1);
}

[Top]

Cloning the CATPLine

This operation is done by the CATCloneManager [2], whose interest is in taking into account the links between the objects during the duplication. The clone manager is used as any CGM operator. To follow the general scheme:

Create it
Set the parameters: here, Add the objects to clone
Run it
Retrieve the duplicated object: ReadImage
delete it.

The clone manager can be used in two modes, defined at its creation:

The CatCGMSingleDuplicate default mode only duplicates the objects that are added to the clone manager
The CatCGMFullDuplicate mode duplicates the added objects and their forward links.

In the use case, the default mode is used: hence, the surface on which the CATPLine is lying is not duplicated. This is tested by comparing the tags of the underlying surface of the CATPLine before and after duplication. The tag is an unique numeric identifier inside the geometry factory. Each CATICGMObject has a persistent tag, that can be retrieved with the CATICGMContainer::GetPersistentTag method.

Notice that this process is independent from the type of surface.

// single duplication by default
CATCloneManager * pCloneManager= new CATCloneManager(piGeomFactory,
                                                     CatCGMSingleDuplicate);
if (NULL==pCloneManager)
{
   ::CATCloseCGMContainer(piGeomFactory);
   return (1);
}

// Asks for the duplication of the PLine
pCloneManager->Add(piPLine);

// Runs the operator
pCloneManager->Run();

// Retrieves the object corresponding to the transformation of the PLine
CATICGMObject* piClonedPLine=NULL;
piClonedPLine = pCloneManager->ReadImage(piPLine);
if (NULL==piClonedPLine)
{
   ::CATCloseCGMContainer(piGeomFactory);
   return (1);
}

// Retrieves the persistent tags of the underlying surface of the initial
// and duplicated Plines
// as the duplication mode is single, the underlying surface must be the same
unsigned long tagSurfCloned =
     ( ((CATPLine *)piClonedPLine )->GetSurface())->GetPersistentTag();
unsigned long tagSurfPLine  =
     (              piPLine        ->GetSurface())->GetPersistentTag();

if (tagSurfCloned != tagSurfPLine)
{
   ::CATCloseCGMContainer(piGeomFactory);
   return (3);
}
delete pCloneManager;
pCloneManager = NULL;

[Top]

Applying a Transform to the CATPLine

This operation is done by the CATTransfoManager [2], whose interest is in taking into account the links between the objects during the transformation. The transfo manager is used as any CGM operator: To follow the general scheme:

Create it
Set the parameters: here, Add the objects to transform
Run it
Retrieve the transformed object: ReadImage
delete it ( this deletion is delayed at the end of the next step, because the manager is still used to retrieve other information).

The transfo manager can be used in three modes, defined at its creation:

The CATTransfoManager::Duplicate default mode duplicates and transforms the objects that are added to the manager. The forward linked objects are not duplicated if they are invariant by the transformation.
The CATTransfoManager::FullDuplicate mode duplicates and transforms the objects that are added to the manager. But now, the forward linked objects are duplicated, even if they are invariant by the transformation.
The CATTransfoManager::Replace mode replaces the objects added to the manager, and their forward linked objects if they are not invariant.

In the use case, the default mode is used: hence, the CATPLine is duplicated and the surface on which the CATPLine is lying is duplicated, because it is not invariant. This is tested by comparing the tags of the underlying surface of the CATPLine before and after transformation.

Notice that this process is independent from the type of surface.

CATMathTransformation mathTransf(CATMathVector(20.,10.,40.));

// duplication of non-invariant objects by default
CATTransfoManager * pTransfoManager =
                    new CATTransfoManager(mathTransf,piGeomFactory);
if (NULL==pTransfoManager)
{
   ::CATCloseCGMContainer(piGeomFactory);
   return (1);
}

// Asks for the transformation of piPLine
pTransfoManager->Add(piPLine);

// Runs the operator
pTransfoManager->Run();

// Retrieves the object corresponding to the transformation of the PLine
CATICGMObject* piTransfPLine=NULL;
piTransfPLine = pTransfoManager->ReadImage(piPLine);
if (NULL==piTransfPLine)
{
   ::CATCloseCGMContainer(piGeomFactory);
   return (1);
}

// In this case, the underlying surface is also duplicated.
unsigned long tagSurfTransf =
            ( ((CATPLine *)piTransfPLine )->GetSurface())->GetPersistentTag();
if (tagSurfTransf == tagSurfPLine)
{
   ::CATCloseCGMContainer(piGeomFactory);
   return (4);
}

[Top]

Evaluating the Normals

The evaluation is independent from the type of surface.

The duplicated surface is first retrieved from the transfo manager
Then, one gets the surface limits (GetLimits).
Using the barycentric constructor of the surface parameter, the parameters of a corner is computed
The evaluation of this parameter as a 3D point is then done: notice that the parameterization of the surface cannot be assumed: the mapping must be done by the object, even for canonical objects such as planes or lines. The normal is also computed.
A geometric line representing the mathematical normal is created.

// Retrieves the duplicated surface
 CATSurface * piTransfEggBox = (CATSurface*)(pTransfoManager->ReadImage(piEggBox));
 if (NULL==piTransfEggBox)
 {
   ::CATCloseCGMContainer(piGeomFactory);
   return (1);
 }

 // Gets its limits
 piTransfEggBox ->GetLimits(surLimits);

 // First corner
 CATSurParam surParam(1.,1.,surLimits);
 CATMathDirection normal;
 CATMathPoint mPoint;
 piTransfEggBox->EvalPoint(surParam, mPoint);
 piTransfEggBox->EvalNormal(surParam, normal);
 // Creates the trimmed line representing the tangent
 piGeomFactory->CreateLine(mPoint,mPoint+10*normal);
// ... and so one for the three remaining corners
delete pTransfoManager;
pTransfoManager = NULL;

[Top]

Writing the Model and Closing the Container

To save the model in a file, the ::CATSaveCGMContainer global function is used. Notice that in the use case, the save is conditioned by an input parameter representing the file inside which the model must be saved.

The use case ends with the closure of the geometry factory, done by the ::CATCloseCGMContainer global function.

 if(1==toStore)
 {
#ifdef _WINDOWS_SOURCE
   ofstream filetowrite(pfileName, ios::binary ) ;
#else
   ofstream filetowrite(pfileName,ios::out,filebuf::openprot) ;
#endif

   ::CATSaveCGMContainer(piGeomFactory,filetowrite);
   filetowrite.close();
 }

 //
 // Closes the container
 //

 ::CATCloseCGMContainer(piGeomFactory);

[Top]

In Short

The use case illustrates how to create and use geometry.

[Top]

References

[1]	The Management of Foreign Data
[2]	The Clone and Transformation Managers
[3]	The Objects of the CATIA Geometric Modeler
[4]	The Curves of the CATIA Geometric Modeler
[5]	Foreign Surfaces
[6]	Building and Launching a CAA V5 Use Case
