What You Will Learn With This Use Case

This use case is intended to show you how to create a component [1] [2] that OM-derives [3] from another one, and how to use them in a client application [4].

[Top]

The CAASysDerivationOM Case

CAASysDerivationOM is a set of  use cases of the CAASystem.edu framework that illustrates CATIA System framework capabilities.

[Top]

What Does CAASysDerivationOM Do

This use case creates two components:

1. CAASysSurface, that models a surface, and that implements the CAAISysSurfaceProperties and CAAISysSurfaceArea interfaces in two separate extension classes
2. CAASysRevolSurface, that models a surface of revolution, that OM-derives from CAASysSurface, and that implements CAAISysSurfaceArea and CAAISysRevolAxis interfaces in two separate extension classes.

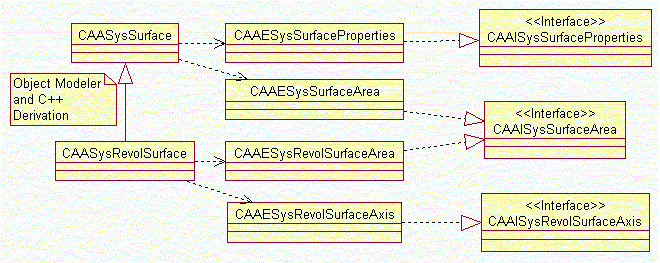

The class diagram is as follows:

CAASysSurface OM-derives and C++-derives from CATBaseUnknown. CAASysRevolSurface OM-derives and C++-derives from CAASysSurface. All the extension classes derive from CATBaseUnknown. OM-inheritance makes no sense for them.

[Top]

How to Launch CAASysDerivationOM

To launch CAASysDerivationOM, you will need to set up the build time environment, then compile CAASysDerivationOM along with its prerequisites, set up the run time environment, and then execute the use case [5].

[Top]

Where to Find the CAASysDerivationOM Code

The CAASysDerivationOM use case is made of several classes located in the CAASysDerivationOM.m module of the CAASystem.edu framework:

where InstallRootDirectory is the directory where the CAA CD-ROM is installed.

[Top]

Step-by-Step

To create a component that OM-derives from another one, there are three main steps:

[Top]

Creating the CAASysSurface Base Component

A component is made of a main class, and possibly of extension classes. The component name is the main class name.  A class is designated as a component main class thanks to the CATDeclareClass macro in the class header file, and to the CATImplementClass macro in the class source file with the Implementation keyword as second parameter. The CAASysSurface class header file is as follows:

...
#include "CATBaseUnknown.h"

class CAASysSurface : public CATBaseUnknown
{
  CATDeclareClass;
  public:
    CAASysSurface();
    virtual ~CAASysSurface();
  private:
    CAASysSurface(const CAASysSurface &iObjectToCopy);
};

The CATDeclareClass macro declares that the class CAASysSurface belongs to a component. Note that the copy constructor is set as private. Let's have a look at the class source file:

#include "CAASysSurface.h"

CATImplementClass(CAASysSurface, Implementation, CATBaseUnknown, CATNull);

CAASysSurface::CAASysSurface() {}
CAASysSurface::~CAASysSurface() {}

The CATImplementClass macro declares that the CAASysSurface class is a component main class thanks to the Implementation keyword, that OM-derives from CATBaseUnknown. Note that the copy constructor is not implemented. A copy constructor declared as private and not implemented prevents the compiler to create a public one that client application could use without your agreement.

This class has two extension classes that implement interfaces. The header files of these classes also include the CATDeclareClass macro. Their source files include the CATImplementClass macro with the following parameters, for example for the CAAESysSurfaceArea class:

...
CATImplementClass(CAAESysSurfaceArea, DataExtension, CATBaseUnknown, CAASysSurface);
...

The CATImplementClass macro declares that the CAAESysSurfaceArea class is a data extension of the component whose main class is CAASysSurface. Like for any extension class, its third parameter must always be CATBaseUnknown, since OM-inheritance doesn't make sense for extensions. The two extension classes implement interfaces as usual.

[Top]

Creating the CAASysRevolSurface Component that OM-derives from CAASysSurface

Like for any component, the CAASysRevolSurface component main class header file includes the CATDeclareClass macro. Its source file includes the CATImplementClass macro with the following parameters:

...
CATImplementClass(CAASysRevolSurface, Implementation, CAASysSurface, CATNull);
...

The CATImplementClass macro declares that the CAASysRevolSurface class is a component main class thanks to the Implementation keyword, that OM-derives from CAASysSurface component. Two extension classes of this component implement interfaces as usual.

[Top]

Taking Advantage of the OM-derivation in a Client Application

The OM-derivation, or OM-inheritance, depending from where you look, enables client applications to ask for a pointer to an interface that the OM-derived component doesn't implement itself, but that one of its base components implements. For example, from a pointer to CAAISysRevolSurfaceAxis that the CAASysRevolSurface component itself implements, the client application can ask for a pointer to CAAISysSurfaceProperties implemented by its base component CAASysSurface, although there is no C++ inheritance links between the extension classes that make up the components, since all extension classes C++-derive from CATBaseUnknown. This can be shown using the following code:

...
CAAISysSurfaceProperties * pCAAISysSurfaceProperties = NULL;
HRESULT rc;
rc = pCAAISysRevolAxis->QueryInterface(IID_CAAISysSurfaceProperties,
                                       (void**)&pCAAISysSurfaceProperties);
if (SUCCEEDED(rc)
...

Assume pCAAISysRevolAxis is a valid pointer to CAAISysRevolSurfaceAxis on the CAASysRevolSurface component. QueryInterface returns a valid pointer to CAAISysSurfaceProperties, although the CAASysRevolSurface component doesn't implement it iself, but by means of its base component CAASysSurface.

[Top]

In Short

This use case shows how to create a component that OM-derives from another component, and how to use it in a client application.
