User Opposite Hand Machining
Implementing CATIMfgUserReverseMachiningConditions, CATIMfgUserOppositeHandMachiningOptions and
CATICreateInstance |
| Use Case |
Abstract
This article discusses the CAAMaiUserOppositeHandMachining use case.
|
What You Will Learn With This Use Case
This use case helps you to define reverse machining conditions for
a user-operation (CATIMfgUserReverseMachiningConditions), and to set its check-box name
and associated setting names of the Opposite Hand Machining Options panel
(CATIMfgUserOppositeHandMachiningOptions and CATICreateInstance).
[Top]
The CAAMaiUserOppositeHandMachining Use Case
CAAMaiUserOppositeHandMachining is a use case of the CAAManufacturingItf.edu
framework that illustrates ManufacturingInterfaces framework capabilities.
[Top]
What Does CAAMaiUserOppositeHandMachining Do
CAAMaiUserOppositeHandMachining provides an implementation of CATIMfgUserReverseMachiningConditions
for a Profile Contouring operation, and an implementation of CATIMfgUserOppositeHandMachiningOptions
and CATICreateInstance to set its check-box name (CAA Profile Contouring) and associated setting names
of the Opposite Hand Machining Options panel.
.
[Top]
How to Launch CAAMaiUserOppositeHandMachining
To launch CAAMaiUserOppositeHandMachining, you will need to :
- Set up the build time environment, then compile
CAAMaiUserOppositeHandMachining.m module along with its prerequisites [1]
- Edit the interface dictionary, that is, the CAAManufacturingItf.edu.dico
file located in:
| Windows |
InstallRootDirectory\CAADoc\CAAManufacturingItf.edu\CNext\code\dictionary\ |
| Unix |
InstallRootDirectory/CAADoc/CAAManufacturingItf.edu/CNext/code/dictionary/ |
where InstallRootDirectory is the directory where the CAA
CD-ROM is installed, and decomment the following line by removing the '#CAA#'
character:
ProfileContouring CATIMfgUserReverseMachiningConditions libCAAMaiUserOppositeHandMachining
CAAEMaiUserOppositeHandMachiningOptions CATIMfgUserOppositeHandMachiningOptions libCAAMaiUserOppositeHandMachining
CAAEMaiUserOppositeHandMachiningOptions CATICreateInstance libCAAMaiUserOppositeHandMachining
- Set up the run time environment
- Launch a CATIA V5 session
- Open the CAAMaiUserOHM.CATProcess file located in:
| Windows |
InstallRootDirectory\CAADoc\CAAManufacturingItf.edu\CNext\resources\graphic\ |
| Unix |
InstallRootDirectory/CAADoc/CAAManufacturingItf.edu/CNext/resources/graphic/ |

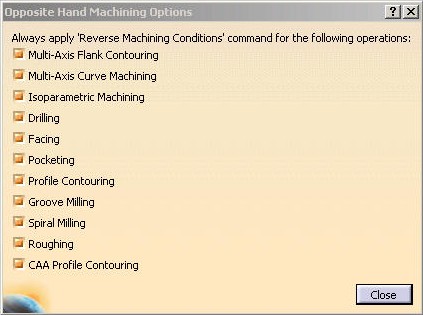

- Click on the Opposite Hand Machining Options icon of the Auxiliary Operations toolbar :
Notice the CAA Profile Contouring check-box at the end of the list :

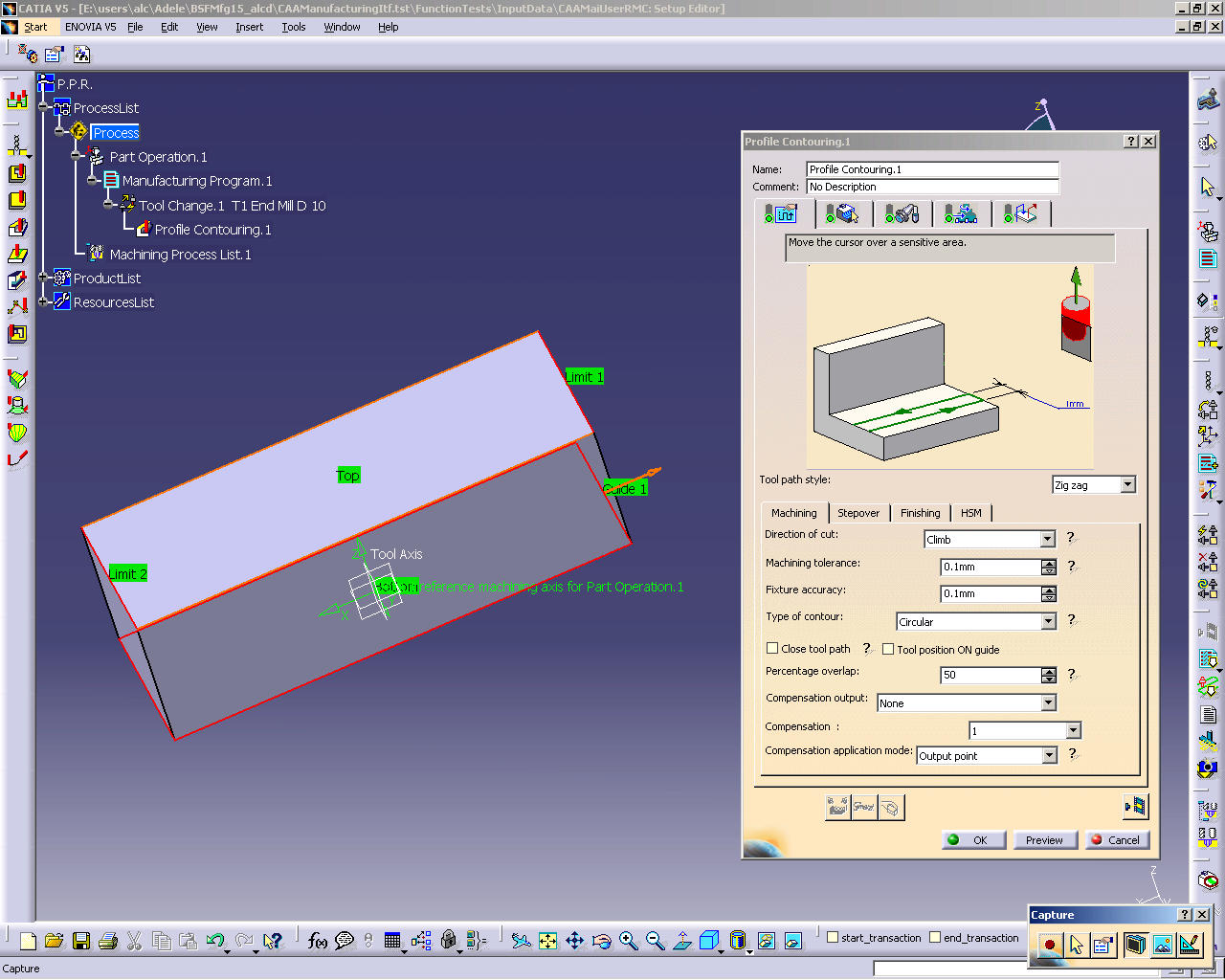

- In the PPR Tree, select/edit Profile Contouring.1, and notice the relimiting elements
Limit1 and Limit2 :
- Click on the Reverse Machining Conditions icon of the Auxiliary Operations toolbar :
Notice that the relimiting elements have been swaped :
[Top]
Where to Find the CAAMaiUserOppositeHandMachining Code
The CAAMaiUserOppositeHandMachining use case is located in :
| Windows |
InstallRootDirectory\CAADoc\CAAManufacturingItf.edu\CAAMaiUserOppositeHandMachining.m |
| Unix |
InstallRootDirectory/CAADoc/CAAManufacturingItf.edu/CAAMaiUserOppositeHandMachining.m |
where InstallRootDirectory is the directory where the CAA CD-ROM
is installed.
[Top]
Step-by-Step
There are three logical steps in CAAMaiUserOppositeHandMachining:
- Create an extension class to implement CATIMfgUserReverseMachiningConditions for a user-operation
- Create an implementation class of CATIMfgUserOppositeHandMachiningOptions
- Create an extension class to implement CATICreateInstance
We now comment these sections by looking at the code.
[Top]
Create an extension class to implement CATIMfgUserReverseMachiningConditions for a user-operation
The sample extension class of a Profile Contouring implementing CATIMfgUserReverseMachiningConditions
is named CAAEMaiUserReverseMachiningConditions :
#include "CAAEMaiUserReverseMachiningConditions.h"
#include "CATBaseUnknown.h"
#include "CATIMfgActivity.h"
#include "CATSettingRepository.h"
#include "CATListOfCATBaseUnknown.h"
#include "CATIMfgProfileContouringRelimitingElement.h"
//-----------------------------------------------------------------------------
// Supported Interface
//-----------------------------------------------------------------------------
#include "TIE_CATIMfgUserReverseMachiningConditions.h"
TIE_CATIMfgUserReverseMachiningConditions(CAAEMaiUserReverseMachiningConditions);
CATImplementClass(CAAEMaiUserReverseMachiningConditions,DataExtension,CATBaseUnknown,ProfileContouring);
//-----------------------------------------------------------------------------
// Constructor
//-----------------------------------------------------------------------------
CAAEMaiUserReverseMachiningConditions::CAAEMaiUserReverseMachiningConditions() {}
//-----------------------------------------------------------------------------
// Destructor
//-----------------------------------------------------------------------------
CAAEMaiUserReverseMachiningConditions::~CAAEMaiUserReverseMachiningConditions() {}
//-----------------------------------------------------------------------------
// ReverseMachiningConditions
//-----------------------------------------------------------------------------
HRESULT CAAEMaiUserReverseMachiningConditions::ReverseMachiningConditions()
{
HRESULT RC = S_OK;
{
int SettingsOKForReverseCAAProfileContouring=0;
CATSettingRepository* pOperation = CATSettingRepository::GetRepository("NCMfgOperation");
if (NULL!=pOperation)
{
pOperation -> ReadSetting("ReverseMO_CAAProfileContouring",&SettingsOKForReverseCAAProfileContouring);
}
if (SettingsOKForReverseCAAProfileContouring==1)
{
CATIMfgActivity_var hActivity(GetImpl());
if (NULL_var!=hActivity)
{
CATBaseUnknown_var hFeature = hActivity -> GetFeatureInContext();
if (NULL_var!=hFeature)
{
CATIMfgProfileContouringRelimitingElement_var hPCRE(hFeature);
if (NULL_var!=hPCRE)
{
// Swap start/end relimiting geometry
CATUnicodeString StartPos,EndPos;
double StartOffset=0.,EndOffset=0.;
CATBaseUnknown_var hStartProduct,hEndProduct;
CATLISTP(CATBaseUnknown) LOStartElt,LOEndElt;
CATUnicodeString UStart("StartElement"),UEnd("EndElement");
RC = hPCRE -> GetRelimitingGeometry(UStart,LOStartElt,hStartProduct,StartOffset,StartPos);
if (FAILED(RC)) goto LABEL_END;
RC = hPCRE -> GetRelimitingGeometry(UEnd ,LOEndElt ,hEndProduct ,EndOffset ,EndPos);
if (FAILED(RC)) goto LABEL_END;
RC = hPCRE -> SetRelimitingGeometry(UStart,LOEndElt ,hEndProduct ,EndOffset ,EndPos);
if (FAILED(RC)) goto LABEL_END;
RC = hPCRE -> SetRelimitingGeometry(UEnd ,LOStartElt,hStartProduct,StartOffset,StartPos);
if (FAILED(RC)) goto LABEL_END;
}
}
}
}
}
LABEL_END:
return RC;
}
|
Create an implementation class of CATIMfgUserOppositeHandMachiningOptions
The sample implementation class of CATIMfgUserOppositeHandMachiningOptions is named CAAEMaiUserOppositeHandMachiningOptions :
#include "CAAEMaiUserOppositeHandMachiningOptions.h"
#include "CATBaseUnknown.h"
//-----------------------------------------------------------------------------
// Supported Interface
//-----------------------------------------------------------------------------
#include "TIE_CATIMfgUserOppositeHandMachiningOptions.h"
TIE_CATIMfgUserOppositeHandMachiningOptions(CAAEMaiUserOppositeHandMachiningOptions);
CATImplementClass(CAAEMaiUserOppositeHandMachiningOptions,Implementation,CATBaseUnknown,CATNull);
//-----------------------------------------------------------------------------
// Constructor
//-----------------------------------------------------------------------------
CAAEMaiUserOppositeHandMachiningOptions::CAAEMaiUserOppositeHandMachiningOptions(): CATBaseUnknown() {}
//-----------------------------------------------------------------------------
// Destructor
//-----------------------------------------------------------------------------
CAAEMaiUserOppositeHandMachiningOptions::~CAAEMaiUserOppositeHandMachiningOptions() {}
//-----------------------------------------------------------------------------
// GetNames
//-----------------------------------------------------------------------------
HRESULT CAAEMaiUserOppositeHandMachiningOptions::GetNames(CATUnicodeString & oOperationName, CATUnicodeString & oSettingName, CATUnicodeString & oRepositoryName)
{
HRESULT RC=S_OK;
{
oOperationName = "CAA Profile Contouring";
oSettingName = "ReverseMO_CAAProfileContouring";
oRepositoryName = "NCMfgOperation";
}
return RC;
}
|
Create an implementation class to implement CATICreateInstance
The sample extension class of CAAEMaiUserOppositeHandMachiningOptions implementing CATICreateInstance
is named CAAEMaiUserOppositeHandMachiningOptionsInst :
#include "CAAEMaiUserOppositeHandMachiningOptionsInst.h"
#include "CAAEMaiUserOppositeHandMachiningOptions.h"
//-----------------------------------------------------------------------------
// Supported Interface
//-----------------------------------------------------------------------------
#include "TIE_CATICreateInstance.h"
TIE_CATICreateInstance( CAAEMaiUserOppositeHandMachiningOptionsInst);
CATImplementClass(CAAEMaiUserOppositeHandMachiningOptionsInst,CodeExtension,CATNull,CAAEMaiUserOppositeHandMachiningOptions);
//-----------------------------------------------------------------------------
// Constructor
//-----------------------------------------------------------------------------
CAAEMaiUserOppositeHandMachiningOptionsInst::CAAEMaiUserOppositeHandMachiningOptionsInst(): CATBaseUnknown() {}
//-----------------------------------------------------------------------------
// Destructor
//-----------------------------------------------------------------------------
CAAEMaiUserOppositeHandMachiningOptionsInst::~CAAEMaiUserOppositeHandMachiningOptionsInst() {}
//-----------------------------------------------------------------------------
// CreateInstance
//-----------------------------------------------------------------------------
HRESULT __stdcall CAAEMaiUserOppositeHandMachiningOptionsInst::CreateInstance (void ** oPPV)
{
CAAEMaiUserOppositeHandMachiningOptions * pt = new CAAEMaiUserOppositeHandMachiningOptions();
*oPPV = (void*) pt;
if (NULL != pt)
return S_OK;
else
return E_FAIL;
}
|
[Top]
In Short
This article provides an example on how to use the manufacturing interface
classes to customize Opposite Hand Machining.
