Abstract

This article discusses the CAAMaiUdfForGeomMacroMotions use case and explains how to implement the CATIMfgMacroMotionsGeomMapping manufacturing interface.

What You Will Learn With This Use Case
The CAAMaiUdfForGeomMacroMotions Use Case
Step-by-Step
In Short
References

What You Will Learn With This Use Case

This use case is intended to help you apply an axial operation from a User Defined Feature, by implementing the CATIMfgMacroMotionsGeomMapping manufacturing interface. This involves the following:

Overviewing the User Defined Features functionality in a manufacturing context
Implementing all the methods of CATIMfgMacroMotionsGeomMapping to solve geometrical macro motions by using "CATIUdfFeatureInstance" and "CATIUdfFeatureUser" User Features CAA interfaces and the "CATIMfgMappingRuleName" Machining CAA interface

[Top]

The CAAMaiUdfForGeomMacroMotions Use Case

CAAMaiUdfForGeomMacroMotions is a use case of the CAAManufacturingItf.edu framework in the CAAMaiUserDefFeatureMapping.m module that illustrates ManufacturingInterfaces framework capabilities.

[Top]

What Does CAAMaiUdfForGeomMacroMotions Do

CAAMaiUdfForGeomMacroMotions illustrates an implementation of CATIMfgMacroMotionsGeomMapping interface for the User Defined Features identified by the UdfFeature type. This implementation enables to assign geometry like planes or points to macro motions defined in the Machining Process. A such implementation can be done to any feature that is used as input of the Machining Process instantiation window.

[Top]

How to Use CAAMaiUdfForGeomMacroMotions

To use CAAMaiUdfForGeomMacroMotions, you will need to:

Set up the build time environment, then compile CAAMaiUserDefFeatureMapping.m module along with its prerequisites [1]

Edit the interface dictionary, that is, the CAAManufacturingItf.edu.dico file located in:

Windows	`InstallRootDirectory\CAADoc\CAAManufacturingItf.edu\CNext\code\dictionary\`
Unix	`InstallRootDirectory/CAADoc/CAAManufacturingItf.edu/CNext/code/dictionary/`

where InstallRootDirectory is the directory where the CAA CD-ROM is installed, and decomment the following line by removing the '#' character:

UdfFeature CATIMfgMacroMotionsGeomMapping libCAAMaiUserDefFeatureMapping

Set up the run time environment
Launch a CATIA V5 session

Open the CAAMaiUdfForGeomMacroMotionsInstance.CATProcess file located in:

Windows	`InstallRootDirectory\CAADoc\CAAManufacturingItf.edu\CNext\resources\graphic\`
Unix	`InstallRootDirectory/CAADoc/CAAManufacturingItf.edu/CNext/resources/graphic/`

Apply a machining process with geometrical macro motions

[Top]

Where to Find the CAAMaiUdfForGeomMacroMotions Code

The CAAMaiUdfForGeomMacroMotions use case is made of a class named CAAMaiUdfForGeomMacroMotion located in the CAAMaiUserDefFeatureMapping.m module of the CAAManufacturingItf.edu framework:

Windows	`InstallRootDirectory\CAADoc\CAAManufacturingItf.edu\CAAMaiUserDefFeatureMapping.m`
Unix	`InstallRootDirectory/CAADoc/CAAManufacturingItf.edu/CAAMaiUserDefFeatureMapping.m`

where InstallRootDirectory is the directory where the CAA CD-ROM is installed.

[Top]

Step-by-Step

There are three logical steps in CAAMaiUdfForGeomMacroMotions:

Implementing the CATIMfgMacroMotionsGeomMapping Interface for UdfFeature Types
Creating a User Defined Feature Template and Generating Instances
Applying the "MachiningProcessUsingMacroMotionMapping" Machining Process on a User Defined Feature Instance

We now comment each of those sections by looking at the code.

[Top]

Implementing the CATIMfgMacroMotionsGeomMapping Interface for UdfFeature Types

The CAAMaiUdfForGeomMacroMotions.cpp file uses the "CATIUdfFeatureInstance" interface to access to the User Defined Feature information - then, the right data is accessed by its right role name - and the "CATIMfgMappingRuleName" interface to access to "mapping rule name" tag which defines the using context of the feature . See below a part of the implementation:

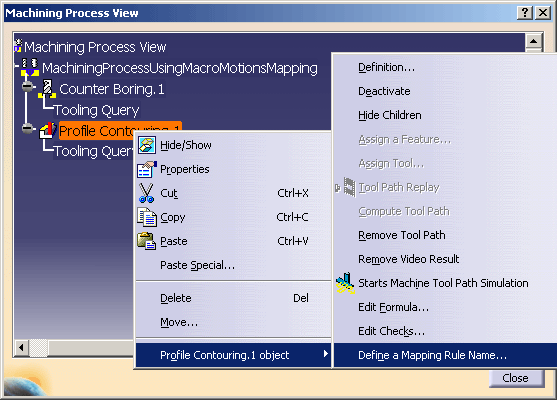

This part of code enables to access to the "mapping rule name" defined in the operation of machining process

...
//----------------------------------------------------------------------
// Read the mapping rule name associated to the operation
//----------------------------------------------------------------------
CATUnicodeString MappingRuleName = "";
CATIMfgMappingRuleName *piMappRuleName = NULL;
RetCode = this->QueryInterface(IID_CATIMfgMappingRuleName,(void **)&piMappRuleName);
if (SUCCEEDED(RetCode) && NULL != piMappRuleName)
{
 MappingRuleName = piMappRuleName->GetMappingRuleName();
 piMappRuleName->Release();
 piMappRuleName = NULL;
}
...

Then, when executing Catia, the value of the MappingRuleName variable can be "AxialUdfWithMacroMap" corresponding to the Machining Process definition (see the CAAMaiMachiningProcessForUdfWithNCMacroData.CATProcess file in the above directory):

According to this variable, the implementation is looking for the right User Feature geometry:

...
//--------------------------------------------------------------------------
// Number of macro motions to be solved
//--------------------------------------------------------------------------
int NbOfMotions = iElementaryMotionTypeList.Size();

for (int numMotion = 1; numMotion <= NbOfMotions && SUCCEEDED(RetCode); numMotion++)
{
  // "Go to a plane" motion case
  if (6 == iElementaryMotionTypeList[numMotion])
  {
    CATUnicodeString GeometryName;
    if (1 == iMacroMotionType || 2 == iMacroMotionType)
    {
     if (MappingRuleName == "AxialUdfWithMacroMap")

     {
      if (iActivityType == "ProfileContouring")
      {
       if (1 == numMotion)
        GeometryName = "Lower_Plane";
       else
        GeometryName = "Security_Plane";
      }
      else
       GeometryName = "Security_Plane";

     }
     else
      GeometryName = "SecurityPlane";
    }
    else
    {
     if (MappingRuleName == "AxialUdfWithMacroMap")
      GeometryName = "Lower_Plane";
     else
     {
      GeometryName = "Drive";
      if (MappingRuleName == "Upper_Drive_Rule")
       GeometryName = "Upper_Drive";
      else if (MappingRuleName == "Lower_Drive_Rule")
       GeometryName = "Lower_Drive";
     }
    }
  }
  CATBaseUnknown_var Geometry;
  if (SUCCEEDED(RetCode))
  {
    CATBaseUnknown *piUdf = NULL;
    RetCode = this->QueryInterface(IID_CATBaseUnknown,(void **)&piUdf);
    if (SUCCEEDED(RetCode) && NULL != piUdf)
    {
     RetCode = CAAMaiUdfUtilities::GetUdfGeometry (piUdf, GeometryName, Geometry);
     piUdf->Release();
     piUdf = NULL;
    }
  }

  if (SUCCEEDED(RetCode))
  {
    CATISketch_var Sketch(Geometry);
    if (NULL_var != Sketch)
    {
      CATISpecObject_var oPlane;
      RetCode = Sketch->GetPlanarSupport(oPlane);
      if (SUCCEEDED(RetCode))
      {
        CATBaseUnknown_var MacroPlane(oPlane);
        oGeometryList.Append(MacroPlane);
      }
      else
        RetCode = E_FAIL;
    }
    else
      oGeometryList.Append(Geometry);
   }
 }
  // "Go to a point" motion case
  else if (7 == iElementaryMotionTypeList[numMotion])
  {
    CATUnicodeString GeometryName;
    if (iActivityType == "Drilling")
      GeometryName = "Drilling_Point";
    else
      GeometryName = "HomePoint";

    CATBaseUnknown_var Geometry;
    RetCode = GetUdfGeometry (GeometryName, Geometry);
    if (SUCCEEDED(RetCode))
      oGeometryList.Append(Geometry);
  }
  // non supported case
  else
    RetCode = E_FAIL;
}
...

// Generic method to get a User Feature geometry from its role name

HRESULT CAAMaiUdfUtilities::GetUdfGeometry (CATBaseUnknown * iUdf,

        CATUnicodeString iGeometryName, CATBaseUnknown_var &oGeometry)
{
 oGeometry = NULL_var;

 HRESULT RC = E_FAIL;
 if (NULL == iUdf) return RC;

 //--------------------------------------------------------------------------
 // Get your object as a CATIUdfFeatureInstance
 //--------------------------------------------------------------------------
 CATIUdfFeatureInstance *piUdfFeatureInstance = NULL;
 RC = iUdf->QueryInterface(IID_CATIUdfFeatureInstance,(void **)&piUdfFeatureInstance);
 //--------------------------------------------------------------------------
 // Your object is a CATIUdfFeatureInstance: we can use the associated methods
 //--------------------------------------------------------------------------
 if (SUCCEEDED(RC) && NULL != piUdfFeatureInstance)
 {
  CATUnicodeString role = "";
  CATBaseUnknown_var spGeom;

  //----------------------------------------------------------------------
  // Read the Inputs number: this is the geometrical inputs of your Udf
  // defined when creating the Udf template
  //----------------------------------------------------------------------
  int InputNb = 0;
  RC = piUdfFeatureInstance->GetInputsNumber(InputNb);

  int i = 1;
  while (SUCCEEDED(RC) && i <= InputNb && role != iGeometryName)
  {
   RC = piUdfFeatureInstance->GetInputRole(i, role);
   //----------------------------------------------------------------------
   // The right Input is found
   //----------------------------------------------------------------------
   if (role == iGeometryName)
   {
    RC = piUdfFeatureInstance->GetInput(i,spGeom);
   }
   i++;
  }
  //----------------------------------------------------------------------
  // The right Input was not found
  //----------------------------------------------------------------------
  if (FAILED(RC) || role != iGeometryName)
  {
   //----------------------------------------------------------------------
   // Analyse the Outputs : this is the geometrical outputs of your Udf
   // added in the Outputs List when creating the Udf template
   //----------------------------------------------------------------------
   CATListValCATBaseUnknown_var * oOutputs = NULL;
   CATIUdfFeatureUser *piUdfFeatureUser = NULL;

   RC = iUdf->QueryInterface(IID_CATIUdfFeatureUser,(void **)&piUdfFeatureUser);
   if (SUCCEEDED(RC) && NULL != piUdfFeatureUser)
   {
    //----------------------------------------------------------------------
    // Read the Outputs list
    //----------------------------------------------------------------------
    piUdfFeatureUser->GetOutputs (oOutputs);
    int OutputNb = 0;
    if (NULL != oOutputs) OutputNb = oOutputs->Size();

    //----------------------------------------------------------------------
    // At least, one output is available
    //----------------------------------------------------------------------
    if (0 < OutputNb)
    {
     for (int i = 1; i <= OutputNb && role != iGeometryName; i++)
     {
      RC = piUdfFeatureUser->GetOutputRole (i, role);
      //----------------------------------------------------------------------
      // The right Output is found
      //----------------------------------------------------------------------
      if (role == iGeometryName)
      {
       spGeom = (*oOutputs)[i];
      }
     }
    }
    if (NULL != oOutputs) delete oOutputs;
   }
   if (NULL != piUdfFeatureUser) piUdfFeatureUser->Release();
   piUdfFeatureUser = NULL;
  }

  oGeometry = spGeom;
 }

 if (NULL_var != oGeometry)
  RC = S_OK;
 else
  RC = E_FAIL;

 if (NULL != piUdfFeatureInstance) piUdfFeatureInstance->Release();
 piUdfFeatureInstance = NULL;

 return (RC);
}

Update the interface dictionary, that is a file named, for example in this case, CAAManufacturingItf.edu.dico, whose directory's pathname is concatenated at run time in the CATDictionaryPath environment variable, and containing the following declaration to state that the UdfFeature feature implements the CATIMfgMacroMotionsGeomMapping interface, and whose code is located in the libCAAMaiUserDefFeatureMapping shared library or DLL. Pay attention to remove the comment (#) in the supplied dictionary.

UdfFeature CATIMfgMacroMotionsGeomMapping libCAAMaiUserDefFeatureMapping

The CAAManufacturingItf.edu.dico file is located in:

Windows	`InstallRootDirectory\CAADoc\CAAManufacturingItf.edu\CNext\code\dictionary\`
Unix	`InstallRootDirectory/CAADoc/CAAManufacturingItf.edu/Cnext/code/dictionary/`

[Top]

Creating a User Defined Feature Template and Generating Instances

Here, you will find specific informations according to the implementation of the CATIMfgMacroMotionsGeomMapping interface. You can access to the User Defined Feature commands under the Shape or Part Design Workbenches, then edit the UserHoleWithNCMacroData User feature under the UserFeatures tree, and display the different tab-pages, specially Inputs, Parameters and Outputs ones:

The User Defined Feature template Inputs are defined and identified to easily access to the geometry and return the available geometry for macro motions.
The necessary attributes are published and identified by a specific name (necessary to compute NC formulas from User Features parameters).

[Top]

Applying the "MachiningProcessUsingMacroMotionsMapping" Machining Process

To apply this machining process, update the "CAAPrismaticMachiningItf.edu.dico" file that enables to use a Profile Contouring operation for the described user feature. In other case, use the "CounterBoringUsingMacroMotionsMapping" machining process instead of the "MachiningProcessUsingMacroMotionsMapping" one.

Open the "Manufacturing Features View"
Open the "CAAMaiMachiningProcesses.catalog" catalog in the installation directory (see above), then select the "MachiningProcessUsingMacroMotionsMapping" process
Select either in the model, or in the Manufacturing View, the "UdfHoleWithNCMacroData.1" User Defined Feature.
Select the "OK" command
Note that two operations are created in the Machining Program
Replay them, edit them and note that information are linked to the "UserHoleWithNCMacroData.1" User Defined Feature, specially in the NC Macro tab-page

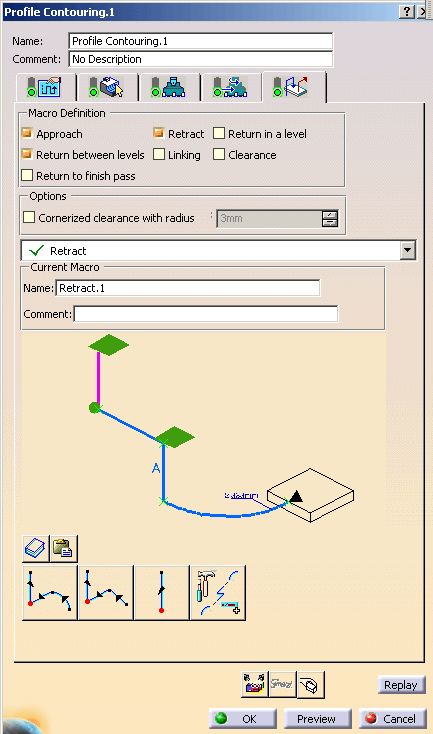

In the following picture, the geometrical macro motions (go to a plane + go to a point + go to a plane) are solved from the CAA implementation:

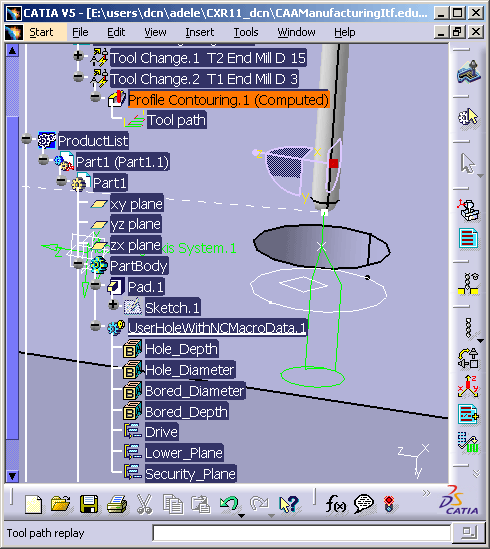

The following picture shows the toolpath.

[Top]

In Short

This article provides an example on how to use the manufacturing interface classes, to machine User Defined Features. It shows how to implement the CATIMfgMacroMotionsGeomMapping interface to be authorized to assign geometry to the geometrical macro motions when instantiating a machining process. This is an elementary step to do this.

[Top]

References

[1]	Building and Launching a CAA V5 Use Case

[Top]

History

Version: 1 [January 2003]	Document created
