Abstract

This article discusses the CAAGsiVolumeFormFeatures use case. This use case explains how to create volume shape features.

What You Will Learn With This Use Case
The CAAGsiVolumeFormFeatures Use Case
Step-by-Step
In Short
References

What You Will You Learn With This Use Case

This use case shows how to use shape design and part design factories to create volumes. The volume features can be created in Shape Design factory or in Part Design factory.
Note: Creations of volumes feature are licensed by the GSO Product.

Shape Design Extrude, Revolve, MultiSections volumes, Sweep volumes.

Part Design Closed Volumes, Thick volumes, Draft, Draft Angle, Draft ReflectLine, Sew Volumes, and Shell.

The CAAGsiVolumeFormFeatures Use Case

CAAGsiVolumeFormFeatures is a use case of the CAAGSMInterfaces.edu framework that illustrates creation of volumes using Shape Design and Part Design
(Extrude, Revol, Thick, Close, Multi-Sections Volume, and Sweep).

What Does CAAGsiVolumeFormFeatures Do

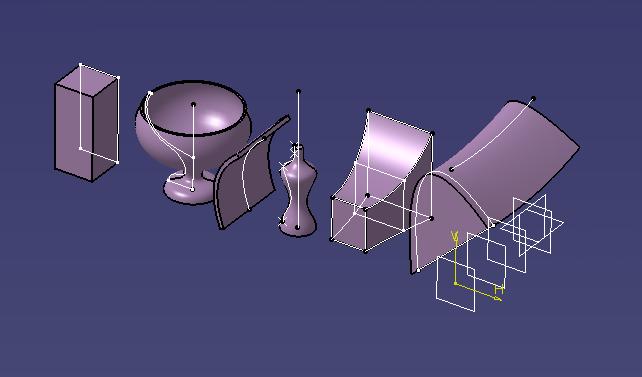

The goal of CAAGsiVolumeFormFeatures is to illustrate how to create volume either using shape design factory or part design factory.
Volume features are surfacic features they answer to the TRUE to the IsAShape() method of CATMf3DBehavior, and also answer TRUE to the IsAVolume() method of CATIMf3DBehavior2
Volume features can only be inserted in the procedural view in Geometrical Set (GS) or Ordered Geometrical Set (OGS)

Volume created using shape design factory (CATIGSMFactory)

Volume created from shape design factory are extension on the corresponding surface feature , the creation method are teh same the CAA user just have to use the SetContext methods of the corresponding interface feature to specify the type surfacic or volume result.

Volume case: The Input has to be a closed wire(Ex: Profile to extrude) or a surface (Ex: Shape to extrude . eitherwise a error is returned when volume is updated

Once created the volume have to be insert in the procedural view using the CATIGSMProceduralView Interfaces, if the current tool is a body, automatically an OGS will be create in the Body to insert the volume underneath

Volume created using part design factory (CATIPrtFactory or CATIPrtBooleanFactory)

Part Design factories propose dedicated methods to create volume feature (ex: CreateVolumicCloseSurface.),

Part design factory volumes methods automatically insert resulting feature in the procedural view at creation , the feature just have then to be updated ,if the current tool is a body, automatically an OGS will be create in the Body to insert the volume underneath. The CAAGsiObjectUpdate service can be used

[Top]

How to Launch CAAGsiVolumeFormFeatures

To launch CAAGsiVolumeFormFeatures, you will need to set up the build time environment, then compile CAAGsiVolumeFormFeatures along with its prerequisites, and set up the run time environment, and then execute the use case [1].

Launch the use case as follows:

With Windows

e:\CAAGsiVolumeFormFeatures inputDirectory\GAAGsiNozzle.CATPart outputDirectory\CAAGsiVolumeFormFeatures.CATPart

With UNIX

\CAAGsiVolumeFormFeatures inputDirectory/CAAGsiStartVolume.CATPart outputDirectory/CAAGsiVolumeFormFeatures.CATPart

where:

`inputDirectory`	The directory into which `CAAGsiStartVolume.CATPart is found`
`outputDirectory`	The directory into which `CAAGsiVolumeFormFeatures.CATPart is saved`
`CAAGsiVolumeFormFeatures.CATPart`	The file that contains the part created with the datum surface t

[Top]

Where to Find the CAAGsiVolumeFormFeatures Code

The CAAGsiVolumeFormFeatures use case is made of main program located in the CAAGsiVolumeFormFeatures.m module of the CAAGSMInterfaces.edu framework:

Windows	`InstallRootDirectory\CAAGSMInterfaces.edu\CAAGsiVolumeFormFeatures.m\`
Unix	`InstallRootDirectory/CAAGSMInterfaces.edu/CAAGsiVolumeFormFeatures.m/`

The input CAAGsiStartVolume.CATPart is proposed in Data.d directory of CAAGSMInterfaces.edu

Windows	`InstallRootDirectory\CAAGSMInterfaces.edu\Data.d\CAAGsiStartVolume.CATPart`
Unix	`InstallRootDirectory/CAAGSMInterfaces.edu/Data.d/CAAGsiStartVolume.CATPart`

where InstallRootDirectory is the directory where the CAA CD-ROM is installed.

[Top]

Step-by-Step

There are eight logical step in CAAGsiVolumeFormFeatures:

Prolog
Create extrude volume feature
Create revol volume feature
Create a mutli-section volume
Create a volume sweep feature
Create a volume close featureume
Create a volume thick feature
Save and close session

We will now comment each of those sections by looking at the code of the main method of file CAAGsiVolumeFormFeatures.

[Top]

Prolog

CAAGsiVolumeFormFeatures sample first creates a session and opens the input CATPart.

Note: The important feature of the following sequence of code consists in the required call to the GetPart() method of the CATPrtContainer interfaces. This method allow to load in session the different containers of the part

....
// creates a session
char *pSessionName = "SampleSession";
CATSession *pSession = NULL;
rc = Create_Session(pSessionName, pSession);
if (NULL == pSession ) {
   cout << "(CAAGsiVolumeFormFeatures) ERROR: Create_Session" << endl  ;
   TestCaseError = 1 ;
}

// loads the document and initializes it
cout << "The input document " << InputName << " is opened" << endl ;
CATDocument *pDoc = NULL;
rc =CATDocumentServices::OpenDocument(InputName, pDoc) ;

if (NULL == pDoc ) {
   cout << "(CAAGsiVolumeFormFeatures) ERROR CATDocumentServices::OpenDocument" << endl  ;
   TestCaseError = 2 ;
}

// Part Container
CATIPrtContainer *piPartContainer = NULL ;
CATIPrtPart_var spPrtPart;

if ( NULL != pDoc ) {
   // queries on the document to get the root container
   CATInit *pDocAsInit = NULL;
   pDoc->QueryInterface(IID_CATInit, (void**)&pDocAsInit) ;
   if ( NULL != pDocAsInit ) {

    // Extracts from document a reference to its part in hPartAsRequest
   piPartContainer =
      (CATIPrtContainer*)pDocAsInit->GetRootContainer("CATIPrtContainer");
   pDocAsInit->Release(); pDocAsInit = NULL ;

   if( NULL != piPartContainer ) {
      CATISpecObject_var spPart = piPartContainer->GetPart() ;
      spPrtPart = spPart ;
   }
}
...

Then in the initilization phasis the wireframe and shape design and Part Design factory are retrieved. .

....
// Retrieve the Generative Shape Design Factory Interface
CATIPrtFactory_var spPrtFact;
CATIGSMFactory_var spGsmFact;
if ( NULL !=piPartContainer ) {
   CATIGSMFactory * _pFact =NULL;
   rc = piPartContainer -> QueryInterface(IID_CATIGSMFactory ,(void**)&_pFact);
   if (SUCCEEDED(rc) ) {
     spGsmFact = _pFact;
     if (_pFact) _pFact -> Release(); _pFact = NULL;
  }

  // Retrieve the Part Design factory Interface
   CATIPrtFactory * _pPrtFact =NULL;
   rc = piPartContainer -> QueryInterface(IID_CATIPrtFactory ,(void**)&_pPrtFact);
   if (SUCCEEDED(rc) ) {
        spPrtFact = _pPrtFact;
       if (_pPrtFact) _pPrtFact ->Release(); _pPrtFact = NULL;
     }
   }
} ....

[Top]

Create extrude volume feature

Create extrude volume using CreateExtrude method of CATIGSMFactory

....
#include "CATGSMContextDef.h"
....
// Create Volume Extrude
CATISpecObject_var SpecSkethToExtrude = ...;
CATISpecObject_var SpecPlaneRef1 = ...;

CATICkeParm_var spCkeLgStart ;
spCkeLgStart = spCkeFact -> CreateLength( "Start" ,0.0/1000.);
if (NULL_var == spCkeLgStart) {
     cout << "ERROR in creating Cke length paramater" << endl;
}
CATICkeParm_var spCkeLgEnd ;
spCkeLgEnd = spCkeFact -> CreateLength( "End" ,100.0/1000.);
if (NULL_var == spCkeLgEnd) {
   cout << " ERROR in creating Cke length paramater" << endl;
}
DirRef =spGsmFact -> CreateDirection ( SpecPlaneRef1);

// Create Extrude
CATIGSMExtrude_var spExtrude1 = spGsmFact -> CreateExtrude ( SpecSkethToExtrude , DirRef , spCkeLgStart,spCkeLgEnd, TRUE) ;

//Initialize volume Context
spExtrude1 -> SetContext(CATGSMVolumeCtxt) ;

// Insert in procedural view and Update
CATISpecObject_var spSpecExtr1 = spExtrude1 ;
if (NULL_var != spSpecExtr1) {
   CATIGSMProceduralView_var ispProcView = spSpecExtr1;
   if (NULL_var != ispProcView ) {
      rc = ispProcView ->InsertInProceduralView();
   }
}
CAAGsiObjectUpdate(spSpecExtr1) ;
...

[Top]

Create revolve volume feature

Create revolve volume using CreateRevol method of CATIGSMFactory

....
#include "CATGSMContextDef.h"
....
// Create Volume revolve
CATISpecObject_var SpecSkethToRevol = ...;
CATISpecObject_var SpecLineRef1 = ...;

CATICkeParm_var spCkeAngStart ;
spCkeAngStart = spCkeFact -> CreateLength( "Ang1" ,(180.0/180.0)*CATPI);
if (NULL_var == spCkeAngStart) {
       cout << "ERROR in creating Cke angle paramater"
<< endl ;
}
CATICkeParm_var spCkeAngEnd;
spCkeAngEnd = spCkeFact -> CreateLength( "Ang2" ,(180.0/180.)*CATPI);
if (NULL_var == spCkeAngEnd) {
       cout << "ERROR in creating Cke angle paramater"
<< endl ;
}

CATIGSMRevol_var spRevol1 =
       spGsmFact -> CreateRevol (SpecSkethToRevol, SpecLineRef1 , spCkeAngStart, spCkeAngEnd , FALSE);


//Initialize volume Context
spRevol1 -> SetContext(CATGSMVolumeCtxt) ;

// Insert in procedural view and Update
CATISpecObject_var spSpecRevol1 = spRevol1 ;
if (NULL_var != spSpecRevol1 ) {
   CATIGSMProceduralView_var ispProcView = spSpecRevol1 ;
   if (NULL_var != ispProcView ) {
      rc = ispProcView ->InsertInProceduralView();
    }
}
CAAGsiObjectUpdate(spSpecRevol1 ) ;
...

[Top]

Create multi-sections volume feature

Create multi-sections volume using CreateLoft method of CATIGSMFactory

....
#include "CATGSMContextDef.h"
....
// Create Multi Section volume
CATISpecObject_var SpecSection;
SpecSection = ... ;spListSections.Append(SpecSection);
SpecSection = ... ;spListSections.Append(SpecSection);
SpecSection = ... ;spListSections.Append(SpecSection);
SpecSection = ... ;spListSections.Append(SpecSection);

CATListValCATISpecObject_var	spListGuides;
CATISpecObject_var SpecGuide;
SpecGuide = ... ;spListGuides.Append(SpecGuide);
SpecGuide = ... ;spListGuides.Append(SpecGuide);
SpecGuide = ... ;spListGuides.Append(SpecGuide);
SpecGuide = ... ;spListGuides.Append(SpecGuide);


CATIGSMLoft_var spLoft1 =
spGsmFact -> CreateLoft (spListSections,spListGuides);

//Initialize volume Context
spLoft1 -> SetContext(CATGSMVolumeCtxt) ;

// Insert in procedural view and Update
CATISpecObject_var spSpecLoft1 = spLoft1 ;
if (NULL_var != spSpecLoft1 ) {
   CATIGSMProceduralView_var ispProcView = spSpecLoft1 ;
   if (NULL_var != ispProcView ) {
      rc = ispProcView ->InsertInProceduralView();
   }
}
CAAGsiObjectUpdate(spSpecLoft1 ) ;
...

[Top]

Create volume sweep feature

Create volume sweep using CreateSweep method of CATIGSMFactory

....
#include "CATGSMContextDef.h"
....
// Create Multi Section volume
CATISpecObject_var SpecProfile = ...
CATISpecObject_var SpecGuideSw = ...
CATISpecObject_var SpecSpine = ....

CATIGSMSweepUnspec_var spExplSweep1 =
spGsmFact -> CreateExplicitSweep(SpecGuideSw,SpecProfile,SpecSpine,NULL_var , NULL_var );

//Initialize volume Context
spExplSweep1 -> SetContext(CATGSMVolumeCtxt) ;

// Insert in procedural view and Update
CATISpecObject_var spSpecSweep1 = spExplSweep1 ;
if (NULL_var != spSpecSweep1 ) {
 CATIGSMProceduralView_var ispProcView = spSpecSweep1 ;
 if (NULL_var != ispProcView ) {
 rc = ispProcView ->InsertInProceduralView();
 }
}
CAAGsiObjectUpdate(spSpecSweep1 ) ;
...

[Top]

Create volume thick feature

Create volume thick using CreateVolumicOffset method of CATIPrtFactory

Note: Insert in procedural view is done at creation under the current geometrical feature set

// Create and Insert in procedural view volume Thick
CATISpecObject_var SpecShape = ...
CATPrtOffsetSens iIsensOffset = NormalSide;
CATISpecObject_var spThick =
spPrtFact -> CreateVolumicOffset (SpecShape, iIsensOffset,0.00, 10.00);

// Update
CAAGsiObjectUpdate(spThick) ;
...

[Top]

Create volume close feature

Create volume close using CreateVolumicCloseSurface method of CATIPrtFactory

Note: Insert in procedural view is done at creation under the current geometrical feature set

// Create and Insert in procedural view volume close
CATISpecObject_var SpecShapeToClose = ...
CATISpecObject_var spClose =
spPrtFact -> CreateVolumicCloseSurface (SpecShapeToClose);

// Update
CAAGsiObjectUpdate(spClose) ;
...

[Top]

Save and close session

Save part and close the session

...
// save
if (NULL != OutputName ) {
   rc = CATDocumentServices::SaveAs (*pDoc, OutputName );
   if (SUCCEEDED(rc)) {
    cout << " (CAAGsiVolumeFormFeature) Document saved " << endl;
   }
   else {
      cout << " ERROR in saving document" << endl;
   }
}
// Closes the document
CATDocumentServices::Remove(*pDoc);

// Ends session and drops document
Delete_Session("SampleSession");
...

[Top]

In Short

This use case has demonstrated the way to create a volume features thanks to shape design and part design.

We illustrate feature in this use case volume feature that do not have BRep feature as input . Creation of features that required BRep as input (Ex: Shell, volume sew ,Draft,.. -mainly in Part Design feature - ) the creation and access to parameters is similar as presented in the sample .

Note : The BRep features are retrieved in interactive commands through in selecting of sub-element and using Mechanical Modeler agent CATFeatureImportAgent

[Top]

References

[1]	Building and Launching a CAA V5 Use Case
[2]	About Generative Shape Design Features
[3]	Inserting a Shape Design Feature in the procedural view
[4]	Updating a shape Design feature
[Top]

History

Version: 1 [May 2004]	Document created
