Managing a Multi Branchable Bundle Segment

Equipment & Systems Engineering	Electrical Harness Installation	Managing a Multi Branchable Bundle Segment How to create and manage a multi branchable bundle segment
Use Case

Abstract

This article discusses the CAAEhiCreateMultiBranchableBundleSegment use case. This use case explains how to create a geometrical bundle, a multi branchable bundle segment, and how to manage a multi branchable bundle segment, particularly adding or removing a branch, defining the route of each bundle segment belonging to the multi branchable bundle segment.

What You Will Learn With This Use Case
The CAAEhiCreateMultiBranchableBundleSegment Use Case
Step-by-Step
In Short
References

What You Will Learn With This Use Case

This use case is intended to show you how to create geometrical bundle and a multi branchable bundle segment, how to manage this multi branchable bundle segment.

Following operations are detailed is this use case:

How to initialize the electrical environment .
How to create a geometrical bundle.
How to create a multi branchable bundle segment
How to manage a multi branchable bundle segment

[Top]

The CAAEhiCreateMultiBranchableBundleSegment Use Case

CAAEhiCreateMultiBranchableBundleSegment is a use case of the CAAElecHarnessItf.edu framework that illustrates the ElecHarnessItf framework capabilities.

[Top]

What Does CAAEhiCreateMultiBranchableBundleSegment Do

The goal of CAAEhiCreateMultiBranchableBundleSegment is to create a geometrical bundle in a new CATProduct document. Multi branchable bundle segments are created under geometrical bundle.

[Top]

How to Launch CAAEhiCreateMultiBranchableBundleSegment?

To launch CAAEhiCreateMultiBranchableBundleSegment, you will need to set up the build time environment, then compile CAAEhiCreateMultiBranchableBundleSegment.cpp along with its prerequisites, set up the run time environment, and then execute the sample. This is fully described in the referenced article [2].

To launch the use case, execute the following command:

mkrun -c "CAAEhiCreateMultiBranchableBundleSegment PathDir Main GbnName MultiBnsName"

PathDir - the path where to save documents. Under Windows, the path could be: E:\HarnessDesign\
Main - the name of the main document saved
GbnName - the part number of the geometrical bundle
MultiBnsName - the part number of the multi branchable bundle segment created

[Top]

Where to Find the CAAEhiCreateMultiBranchableBundleSegment Code?

CAAEhiCreateMultiBranchableBundleSegment code is located in the CAAEhiCreateMultiBranchableBundleSegment.m use case module of the CAAElecHarnessItf.edu framework:

Windows	`InstallRootDirectory/CAAElecHarnessItf.edu/`CAAEhiCreateMultiBranchableBundleSegment`.m`
Unix	`InstallRootDirectory\CAAElecHarnessItf.edu\`CAAEhiCreateMultiBranchableBundleSegment`.m`

where InstallRootDirectory is the root directory of your CAA V5 installation. It is made of a unique source file named CAAEhiCreateMultiBranchableBundleSegment.cpp.

[Top]

Step-by-Step

There are six main logical steps in CAAEhiCreateMultiBranchableBundleSegment:

Prolog
Initializing Electrical Environment.
Creating a Geometrical Bundle.
Creating a multi Branchable Bundle Segment.
Managing a multi branchable bundle segment.
Epilog.

We will now comment each of those sections by looking at the code.

[Top]

Prolog

Once the current session has been created, the CATProduct document is created into the session . pGbnDoc is a pointer to this document.

The root product of the document is retrieved . piRootProduct is a CATIProduct handle to the root product .

Methodology describing how to create a CATProduct document and how to retrieve the root product is described in [1].

[Top]

Initialize Electrical Environment

...

CATIEleDocServices * piElecDocServices = NULL;

  rc = pDoc->QueryInterface(IID_CATIEleDocServices,(void**) &piElecDocServices );
  if ( SUCCEEDED(rc) && piElecDocServices )
  {
    rc = piElecDocServices->Initialize();
  }

...

Initializing the electrical environment is mandatory to enable access to electrical objects or electrical attributes .

[Top]

Creating Geometrical Bundle

Geometrical Bundle is created using CATEhiFactory interface on root product piGbnRootProduct.

...

CATIEhiGeoBundle * piGeoBundle = NULL;  // the geometrical bundle
  //
  CATIEhiFactory * piEhiFactory = NULL;   // the factory
  //
  rc = piGbnRootProduct->QueryInterface(IID_CATIEhiFactory,(void**) &piEhiFactory );
  //
...
  rc = piEhiFactory->CreateGeometricalBundle(&piGeoBundle);

...

piGeoBundle is the pointer to geometrical bundle.

[Top]

Creating Multi Branchable Bundle Segment.

First step is the creation of multi branchable bundle segment part.

A new CATPart document is created and added into the product structure. After its creation, the multi branchable bundle segment contains one branchable.

For each branch, a bundle segment is created.

...

CATIEhiMultiBranchable * piMultiBranchable = NULL;

...
 rc = piGeoBundle->CreateMultiBranchable (& piMultiBranchable );


...

piMultiBranchable is a pointer on the multi brancahble bundle segment.

Second step is the creation of the branches of the multi branchable bundle segment .

Two branches are successively created :

...

 CATIEhiBranchable* piNewBranchable=NULL;

  rc = piMultiBranchable->AddBranchable(&piNewBranchable);

...

After the last call to AddBranchable, the multi branchable contains three branchables.

Third step is the retrieving of branchables of the multi branchable

Three branchables are retrieved from the multi branchable :

...

  CATListValCATBaseUnknown_var* pListBranchable = NULL;
  rc = piMultiBranchable->ListBranchables(&pListBranchable);

  ...

  CATIEhiBranchable * piBranchable1 = NULL;
  CATIEhiBranchable * piBranchable2 = NULL;
  CATIEhiBranchable * piBranchable3 = NULL;


  rc = (*pListBranchable)[1]->QueryInterface(IID_CATIEhiBranchable,(void**) &piBranchable1);

  ...

  rc = (*pListBranchable)[2]->QueryInterface(IID_CATIEhiBranchable,(void**) &piBranchable2);

  ...

  rc = (*pListBranchable)[3]->QueryInterface(IID_CATIEhiBranchable,(void**) &piBranchable3);

...

Fourth step is the definition of bundle segment computation parameters .

Bundle segment centre curve is computed according geometrical parameters ( minimum bend radius, constraint points, tangency constraints ) and physical parameter ( gravity)

Two design methodologies are available : distributed slack or length mode.

Distributed slack : a percentage of extra length is added to minimum length computed by the system ( according minimum bend radius ).
Length : it is the length the user wants to respect for a given bundle segment. Input length must be greater than minimum length.

Following attributes have to be defined :

bend radius : minimum bend radius of the bundle segment centre curve.
build mode : string defining the methodology used to compute bundle segment centre curve : "Slack" or "Length" .
slack : value in percent of distributed slack slack added.
length : length of bundle segment (in meter).
diameter: diameter of bundle segment circular section.

Branchable 1 is created with Slack mode.

...

  CATUnicodeString mode="Slack";

  double slack=2;
  double length=0.;
  double bend_radius=15.;
  double diameter = 3.;

  rc = SetBranchableAttributes ( piBranchable1, mode, slack, length, bend_radius, diameter );

...

Branchable 2 is created with slack mode.

...

  mode="Slack";
  slack = 1.5;
  length = 0.;
  bend_radius = 12.;
  diameter = 2.;

  rc = SetBranchableAttributes ( piBranchable2, mode, slack, length, bend_radius, diameter );

...

Branchable 3 is created with slack mode.

...

   mode="Slack";

   slack = 1;
   length = 0.;
   bend_radius = 25.;
   diameter = 5.;

   rc = SetBranchableAttributes ( piBranchable3, mode, slack, length, bend_radius, diameter );

...

CATIElecAttrAccess interface is used in SetBranchableAttributes ( internal method ) to define bundle segment attribute values.

...

  HRESULT SetBranchableAttributes ( CATIEhiBranchable * piBranchable,
                                    CATUnicodeString & mode, double & slack, double & length,
                                    double & bend_radius, double & diameter )
  {
     HRESULT rc = E_FAIL;
     //
     if (!piBranchable) return rc; // pointer not valuated : exit E_FAIL
     if ( mode != "Slack" && mode != "Length" && mode != "Bend" ) return rc; // invalid mode : exit E_FAIL
     //
     CATBaseUnknown * pCurve = NULL;
     rc = piBranchable->GetElecCurve(&pCurve);
     if (FAILED(rc) || (NULL==pCurve)) return E_FAIL;

     //
     CATIElecAttrAccess * piElecAttr = NULL;
     rc = pCurve->QueryInterface(IID_CATIElecAttrAccess,(void**) &piElecAttr );
     pCurve->Release();
     pCurve=NULL;
     if (FAILED(rc) || (NULL==piElecAttr)) return E_FAIL;

     //
     CATUnicodeString attribute;
     // --- set build mode
     attribute = "Elec_Creation_Mode";
     rc = piElecAttr->Set(attribute,mode);
     if (FAILED(rc))
     {
        piElecAttr->Release();
        piElecAttr=NULL;
        return rc;
     }

     // --- build mode = "Slack" : set slack
     if ( mode == "Slack" )
     {
       attribute = "Elec_Di_Slack";
       rc = piElecAttr->Set(attribute,slack);
       if (FAILED(rc))
       {
         piElecAttr->Release();
         piElecAttr=NULL;
         return rc;
       }
     }
     //
     double val;
     // --- build mode = "Length": set length
     if ( mode == "Length" )
     {
        val = length * 0.001;
        attribute = "Elec_Length";
        rc = piElecAttr->Set(attribute,val);
        if (FAILED(rc))
        {
           piElecAttr->Release();
           piElecAttr=NULL;
           return rc;
        }
     }
     // --- set bend radius
     attribute = "Elec_Bend_Radius";
     val = bend_radius * 0.001;
     rc = piElecAttr->Set(attribute,val);
     //
     piElecAttr->Release();
     piElecAttr=NULL;
     if (FAILED(rc)) return rc;
     //
     // --- set diameter value
     CATListValCATBaseUnknown_var * pListOfBns = NULL;
     rc = piBranchable->ListBundleSegments ( &pListOfBns );

     if (SUCCEEDED(rc))
     {
        int nb_bns = pListOfBns?pListOfBns->Size():0;
        for ( int i=1; i<=nb_bns; i++ )
        {
           if (NULL_var != (*pListOfBns)[i])
           {
               rc = (*pListOfBns)[i]->QueryInterface(IID_CATIElecAttrAccess,(void**)&piElecAttr);
               if (SUCCEEDED(rc) && (NULL!=piElecAttr))
               {
                   attribute = "Elec_Diameter";
                   val = diameter * 0.001;
                   rc = piElecAttr->Set(attribute,val);

                   piElecAttr->Release();
                   piElecAttr=NULL;
                   if (FAILED(rc)) break;
               }
           }
       }
    }
    delete pListOfBns;
    pListOfBns=NULL;
    //
    return rc;
  }

...

Fifth step is the definition of bundle route.

Using CATIGSMFactory, points are created in bundle segment part ( points coordinates are given in MKS unit )

EhiRouteCurve is an sample internal method used to create points and add point to bundle segment curve. Input of method is the bundle segment and the coordinates of the points defining bundle segment route.

For example, here is the code to define the route of Branchable 1 :

...

 rc = piBranchable1->GetElecCurve(&pRoute);


 rc = pRoute->QueryInterface(IID_CATIGSMSpline,(void**)&pGSMSpline);

 //
 int nb_point = 2;
 double points[9];

 // +- P1
 points[0]=0.;
 points[1]=0;
 points[2]=0.;
 //
 // +- P2
 points[3]=0.;
 points[4]=200.;
 points[5]=0.;

 rc = EhiRouteCurve (pGSMSpline, nb_point, points );

...

Bundle segment curve is retrieved using CATIEhiBranchable::GetElecCurve and points are added to curve with CATIGSMSpline::AddPoint

...

//
HRESULT EhiRouteCurve ( CATIGSMSpline* pGSMSpline, int nb_point, double* point_coord )
{
  //
  HRESULT rc = E_FAIL;
  //
  if (!pGSMSpline) return rc; // pointer not valuated : exit E_FAIL
  if ( nb_point < 2 ) return rc; // number of points < 2 : exit E_FAIL;
  //
  //
  // -- retrieving container
  CATIContainer_var spCont; // the container
  CATISpecObject_var spObj = pGSMSpline;
  if ( NULL_var != spObj ) spCont = spObj->GetFeatContainer();
  //
  // -- retrieving factories :
  // - litteral feature factory
  // - GSM factory
  CATICkeParmFactory_var spCKEfacto = spCont; // litteral feature factory
  CATIGSMFactory_var spGSMfacto = spCont; // GSM factory
  if ( NULL_var == spCKEfacto || NULL_var == spGSMfacto )
  {
    return rc; // cannot retrieve factories : exit E_FAIL
  }

  // -- create and add points to curve
  //
  CATICkeParm_var X;
  CATICkeParm_var Y;
  CATICkeParm_var Z;
  CATIGSMPointCoord_var spPoint;
  //
  for ( int i=1; i<=nb_point; i++ )
  {
    //
    double unit = 0.001;
    double Px = unit * point_coord[ 3*(i-1)] ;
    double Py = unit * point_coord[1+3*(i-1)] ;
    double Pz = unit * point_coord[2+3*(i-1)] ;
    //
    X = spCKEfacto->CreateLength ( "X", Px );
    Y = spCKEfacto->CreateLength ( "Y", Py );
    Z = spCKEfacto->CreateLength ( "Z", Pz );
    //
    spPoint = spGSMfacto->CreatePoint(X,Y,Z);
    if ( NULL_var != spPoint ) // --- point created
    {
       CATIGSMProceduralView_var(spPoint)->InsertInProceduralView();
       CATISpecObject_var (spPoint)->Update(); // compute point geometry
       // --- add constraint point to electrical curve
       pGSMSpline->Add(spPoint);
    }
  }
  //
  // -- update curve geometry
  spObj->Update();
  //
  rc = S_OK;
  //
  return rc; // exit S_OK;
}

...

Sixth step is the computation of bundle segment representation.

CATIEhiGeoBundle::ComputeMultiBranchable is used to compute bundle segment shape ( part design RIB ). This method may be used to re-compute shape after parameter modification.

...

  //   + compute multi branchable
  //
  rc = piGeoBundle->ComputeMultiBranchable ( piMultiBranchable );

...

[Top]

Managing a multi branchable bundle segment.

Some methods of CATIEhiBranchable interface are called in the sample, for example GetMultiBranchable which returns the multi branchable from a branchable, GetElecCurve which returns the electrical curve from a branchable or ListBundleSegments which returns the list of bundle segments contained in a branchable.

...

   CATIEhiMultiBranchable* piMultiBranchableRead=NULL;
   rc = piBranchable1->GetMultiBranchable(&piMultiBranchableRead);
...

Then, the method RemoveBranchable of CATIEhiMultiBranchable is used to delete the third branch of the multi branchable.

...

    rc = piMultiBranchable->RemoveBranchable(piBranchable3);
...

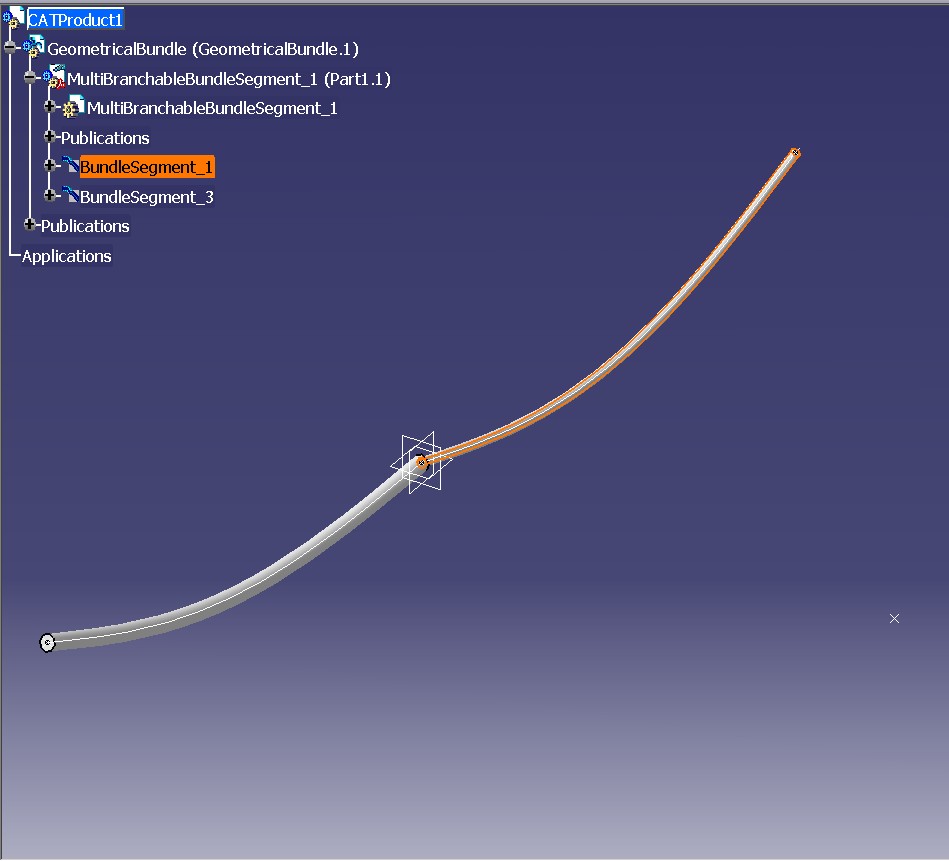

Above is a CATIA image showing the multi branchable bundle segment after removing the third branch.

[Top]

Epilog

The multi branchable bundle segement is saved first.

...

  CATIProduct_var spMultiBranchableI = piMultiBranchable;

  CATIProduct_var spMultiBranchableR = spMultiBranchableI->GetReferenceProduct();

  CATILinkableObject_var spLinkable=spMultiBranchableR;

  CATDocument * pMultiBnsPartDoc = spLinkable->GetDocument();

  rc = CATDocumentServices::SaveAs (*pMultiBnsPartDoc , PathOutput+MultiBns1File );

...

Then, the geometrical bundle and the main document are saved.

...

 rc = CATDocumentServices::SaveAs (*pGbnDoc , PathOutput+GbnFile );

 rc = CATDocumentServices::SaveAs (*pMainDoc , PathOutput+MainFile );


...

Document is removed and session is deleted before exit.

...

rc = CATDocumentServices::Remove(*pGbnDoc);
...
rc = ::Delete_Session(sessionName);
...

[Top]

In Short

This use case has demonstrated how to create and manage a multi branchable bundle segment

Following operations have been detailed is this use case :

How to activate electrical environment using Initialize method of CATIEleDocServices.
How to create a geometrical bundle using CreateGeometricalBundle method of CATIEhiFactory.
How to create a multi branchable bundle segment in the geometrical bundle using CreateMultiBranchable of CATIEhiGeoBundle.
How to add branches in a multi branchable bundle segment using AddBranchable of CATIEhiMultiBranchable.
How to manage attributes of bundle segment using CATIElecAttrAccess interface .
How to route bundle segment using GSM interfaces.
How to compute multi branchable bundle segment representation using ComputeMultiBranchable of CATIEhiGeoBundle.
How to remove a branch of a multi branchable bundle segment using RemoveBranchable of CATIEhiMultiBranchable..

[Top]

References

[1]	Adding Components to a Product Structure
[2]	Building and Launching a CAA V5 Use Case

[Top]

History

Version: 1 [Jan 2003]	Document created
[Top]

Equipment & Systems Engineering

Electrical Harness Installation
