What You Will Learn With This Use Case

This use case is intended to show you how the Send/Receive mechanism [1] works and how to use it in your own applications.

[Top]

The CAADlgSendReceive Case

CAADlgSendReceive is a use case of the CAADialog.edu framework that illustrates CATIA System and Dialog frameworks capabilities.

[Top]

What Does CAADlgSendReceive Do

This use case creates commands that build a command tree structure, create and send notifications, analyze them, and process them or ask the sending command to resend the notification above in the tree, possibly up to the command selector that resends the notification to the active command. The commands that send notifications are made of a model that has elements, such as points, lines, and so on. This model has a container as parent, and the container has the command selector as parent. The possibly active commands are a screen view and a plot view of the model and of its elements.

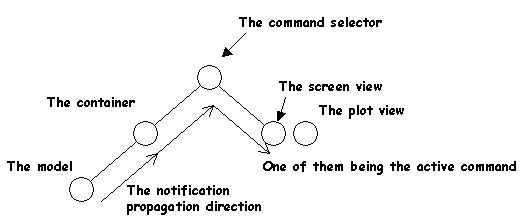

Fig. 1: Command Diagram

The screen and plot views are instantiated without parent. Their default parent is then the command selector. The container is also instantiated with the command selector as parent. The model is instantiated with the container as parent.

When an element is added to the model, the model notifies this event to its parent by sending a CAADlgNotifAdd notification instance. When an element is removed from the model, it sends a CAADlgNotifRemove notification instance. These two notifications are unknown by the container which is transparent for them. The container reacts only if the model sends a CAADlgNotifError notification instance.

The notifications for which the container is transparent are resent by the model to the container's parent, that is the command selector. It is the higher object in the command tree structure and it receives all the unprocessed notifications. The command selector has no ability to process notifications, and it only resend the notification to the active command, that is, the command that has requested the focus, and that is the last chance for the notification to be processed. The screen view and the plot view are the two commands that may have the focus and that request it in turn.

[Top]

How to Launch CAADlgSendReceive

To launch CAADlgSendReceive, you will need to set up the build time environment, then compile CAADlgSendReceive along with its prerequisites, set up the run time environment, and then execute the use case [2].

[Top]

Where to Find the CAADlgSendReceive Code

The CAADlgSendReceive use case is made of a several classes located in the CAADlgSendReceive.m module of the CAADialog.edu framework:

where InstallRootDirectory is the directory where the CAA CD-ROM is installed.

[Top]

Step-by-Step

To create an event publisher, an event subscriber or listener, and a scenario to make them play together, there are four steps:

[Top]

Creating a Notification Class

The CAADlgAddNotification class is taken as example.

#include "CATNotification.h"
class CAADlgAddNotification: public CATNotification
{
  CATDeclareClass;
  public:
    CAADlgAddNotification();
    virtual CAADlgAddNotification();
  private:
    CAADlgAddNotification(const CAADlgAddNotification&iObjectToCopy);
    CAADlgAddNotification & operator = (const CAADlgAddNotification &iObjectToCopy);
};

A notification is a CAA V5 component. Its class C++-derives from the notification base class CATNotification. The CATDeclareClass macro makes CAADlgAddNotification part of a component. The copy constructor and the assignment operator are set as private and are not implemented to prevent the compiler to create one as public, and thus prevent from illegal copies of the notification instances.

#include "CAADlgAddNotification.h"

CATImplementClass(CAADlgAddNotification, Implementation, CATBaseUnknown,CATNull);

CAADlgAddNotification::CAADlgAddNotification(): CATNotification(CATNotificationDeleteOn)
{}
CAADlgAddNotification::CAADlgAddNotification()
{}

The CATImplementClass macro declares that CAADlgAddNotification is an Implementation, that is, a component main class, that OM-derives from CATBaseUnknown. The last argument must always be set to CATNull if the second one is set to Implementation.

The CAADlgAddNotification class constructor use CATNotificationDeleteOn as argument for the CATNotification class constructor. It means that the notification will be automatically deleted by the system. [3]

[Top]

Sending a Notification

The model sends notifications whenever an element is added to it, or removed from it. Let's take the adding example.

void CAADlgModel::Add(CAADlgElement * iNewElement)
{
  if ( NULL != iNewElement )
  {
    ... // The element is successfully added

     CAADlgAddNotification * pAddNotification = new CAADlgAddNotification();
     SendNotification(GetFather(), pAddNotification);
     pAddNotification = NULL;
  }
  else
  {
     CAADlgErrorNotification * pErrorNotification = new CAADlgErrorNotification();
     SendNotification(GetFather(), pErrorNotification);
     pErrorNotification = NULL;
  }
}

When an element is successfully added, a CAADlgAddNotification class instance is sent to the command parent thanks to the SendNotification method. The command parent is retrieved using the GetFather method of CATCommand. Otherwise, an error notification is sent. This is an instance of the CAADlgErrorNotification class. Each instance is deleted as soon as it is sent, and its pointer is set to NULL.

[Top]

Filtering Notifications

CATNotifPropagationMode CAADlgContainer::AnalyseNotification(CATCommand      *iSending,
                                                             CATNotification *iReceive)
{
  if (iReceive->IsAKindOf("CAADlgNotifError"))
  {
      printf("The Command Container catches an error \n");
      return(CATNotifDontTransmitToFather);
  }
  else
  {
    return(CATNotifTransmitToFather);
  };
}

The container traps only the notifications that are instances of CAADlgNotifError thanks to redefining the AnalyseNotification method of CATCommand. To do this, it simply returns CATNotifDontTransmitToFather, that stops the notification propagation above in the command tree structure. It processes the notification by simply printing out an error message. All other notifications are of no interest for the container, and returning CATNotifTransmitToFather requests the sending command to resend the notification to the container parent, namely the command selector.

[Top]

Taking the Focus

The screen view command is taken as an example.

void CAADlgViewScreen::WantedFocus()
{
  RequestStatusChange(CATCommandMsgRequestSharedMode);
}

The WantedFocus method requests that the CAADlgViewScreen instance be set as the active command using the RequestStatusChange method. CATCommandMsgRequestSharedMode means that the command runs in shared mode, that is it pushes on the command stack the previous active command without deleting it. This previous command will then take the focus again when the CAADlgViewScreen instance will be deleted.

[Top]

Making the Active Command React to Notifications

The active command also redefines the AnalyseNotification method. Here is the one of the screen view class.

CATNotifPropagationMode CAADlgViewScreen::AnalyseNotification(CATCommand      *iSending,
                                                              CATNotification *iReceive)
{
  if ( iReceive->IsAKindOf("CAADlgAddNotification") ||
       iReceive->IsAKindOf("CAADlgRemoveNotification") )
  {
    CAADlgElement *pElement= NULL;
    pElement = (CAADlgElement *)iSending->SendObject(CAADlgElement::ClassName(), iReceive);

    if ( NULL != pElement)
    {
      pElement->Release();
      pElement = NULL ;
      return(CATNotifDontTransmitToFather);
      }
    else
      return(CATNotifTransmitToFather);
  }
  else
    return(CATNotifTransmitToFather);
}

If the notification is of one of the expected types, the SendObject method is called to request the object that sends the notification to provide a pointer to the object that was either added or removed. SendObject calls the SendCommandSpecificObject that must be redefined by the sending command.

[Top]

Returning the Added or Removed Object

Any command that sends notifications to state a model change can be asked to send a pointer to the object that changes the model. This is the role of SendCommandSpecificObject.

void *CAADlgModel::SendCommandSpecificObject(const char      *iObjectClassNeeded,
                                             CATNotification *iReceived)
{
  void * pObjectToReturn = NULL;

  if ( iReceived->IsAKindOf("CAADlgAddNotification") ||
       iReceived->IsAKindOf("CAADlgRemoveNotification") )
  {
    if ( _pTheLastElementManipulated->IsAKindOf(iObjectClassNeeded) )
    {
      pObjectToReturn = _pTheLastElementManipulated;
      pObjectToReturn->AddRef();
    }
  }
  return pObjectToReturn ;
}

SendCommandSpecificObject is called using a class name and the pointer to the notification received. After testing if the notification is one of those that are sent by the model, a pointer to the last object manipulated, that is the last added or removed object, is returned. Otherwise NULL is returned.

SendCommandSpecificObject addrefs the sent object, and after a SendObject call the method releases the pointer.

[Top]

In Short

The Send/Receive communication protocol enables commands to communicate using notifications that progress from one command to its parent in the command tree structure. A command can send notifications, and can analyze notifications to decide whether to be transparent for, or to receive them, depending on their types. If a notification reaches the command selector at the top of the command tree structure, it is sent to the active command, that is, the one that has the focus. This command in turn analyzes the notification, and can ask the sending command to send the model object for which the notification was sent.
