What You Will Learn With This Use Case

The goal of this article is to show and explain the several ways to select a set of objects in a CATStateCommand command. The selection is possible by using a CATPathElementAgent object. This object is a CATDialogAgent whose the behaviors to enable the multi selection are the following:

• CATDlgEngMultiAcquisition

Accepts indication or multi-selection with a polygon trap without an user interface.

• CATDlgEngMultiAcquisitionSelModes

Accepts indication or multi-selection, with the help of an user interface. The end user can select the selection mode. Triggered as soon as a selection is performed.

• CATDlgEngMultiAcquisitionCtrl

Accepts indication or multi-selection, with the help of an user interface. The end user can select the selection mode. Triggered as soon as the end user validates the selection.

• CATDlgEngMultiAcquisitionUserCtrl

Accepts indication or multi-selection, with the help of an user interface. Triggered as soon as a selection is performed unless the end user toggle to the CATDlgEngMultiAcquisitionCtrl behavior thanks to the user interface.

This use case shows the usage of the last three behaviors.

[Top]

The Numeric Command Use Case

The Numeric command is a use case of the CAADialogEngine.edu framework that illustrates the DialogEngine framework capabilities.

[Top]

What Does the Numeric Command Do

The  CAADegAnalysisNumericCmd is a state dialog command which uses three CATPathElementAgent: One for each behavior to test. Its UML statechart diagram [1] is the following:

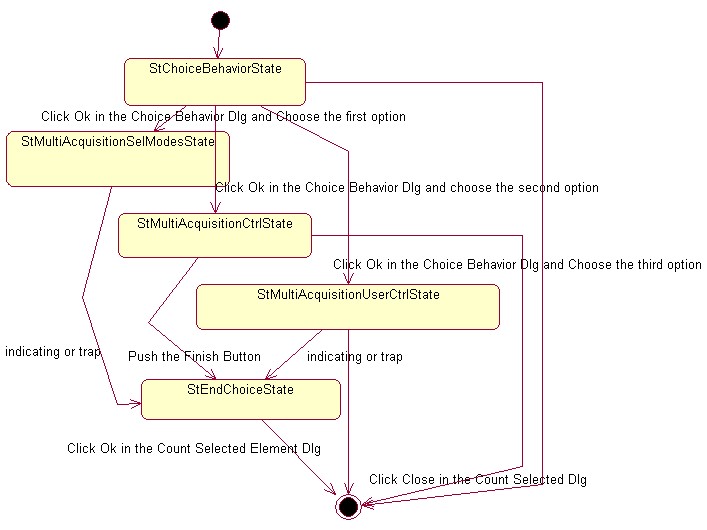

Fig.1: The UML state chart for the Numeric command

The dialog is as follows:

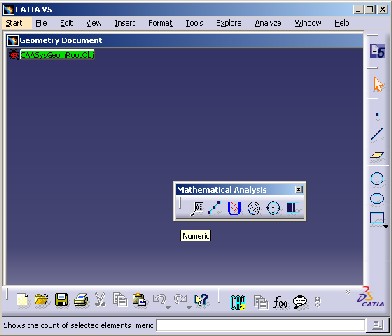

Select the Numeric command  in the Mathematical Analysis toolbar of the "CAA V5: Geometrical Analysis" workbench. The active state becomes stChoiceBehaviorState.

The  "Agent Behavior Choice" dialog box appears: [Fig.2]

Fig.2

If the end user clicks Ok, the current state becomes:

• StMultiAcquisitionSelModesState, if the first radio button is selected
• StMultiAcquisitionStateCtrl, if the second radio button is selected
• StMultiAcquisitionStateUserCtrl, if the last radio button is selected

If the end user clicks the Cancel button or closes the "Agent Behavior Choice" dialog box, the active state becomes the NULL state. The command is canceled.

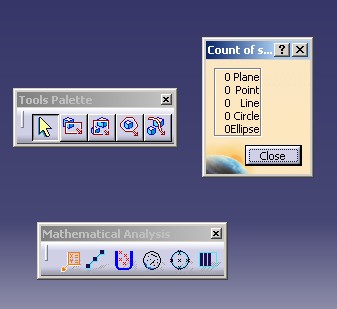

The end user has chosen the first behavior, CATDlgEngMultiAcquisitionSelModes, so the active state is StMultiAcquisitionStateSelModes. The "Tools Palette" toolbar appears with a set of selection modes as follows:

• Selection such as the Select toolbar
• The first icon by indicating or making a trap ( completely in)
• The second icon by making a trap (completely in)
• The third icon by making a trap (completely or partially in)
• The forth icon by making a polygon trap ( completely in)
• The five icon by selecting object under a paint stroke
• Use the Search command

After the selection, the current state becomes StEndChoiceState.

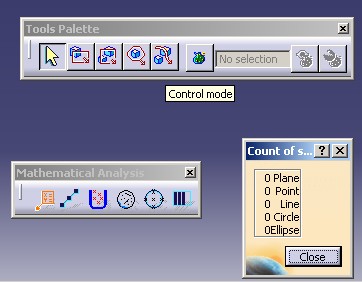

The end user has chosen the second behavior, CATDlgEndMultiAcquisitionCtrl, so the active state is StMultiAcquisitionCtrlState. The "Tools Palette" toolbar appears as follows:

Fig.3

The Tools Palette contains:

• A row of icons to choose the selection mode (such as the Select toolbar)
  • The first icon by indicating or making a trap ( completely in)
  • The second icon by making a trap (completely in)
  • The third icon by making a trap (completely or partially in)
  • The forth icon by making a polygon trap ( completely in)
  • The five icon by selecting object under a paint stroke

  Notice that you can always also use the Search command to fill the CATPathElementAgent.

• A "Selection" editor
  • if one element selected, its complete path is displayed

  • otherwise the count of selected elements is displayed

• A "List Of Selected Item" button which is grayed on the Fig.3. It enables to display all the path when there are several.
• A Finish button to end the selection.

In using the Ctrl key, you can de-select an element already selected or add a new element in the current selection.

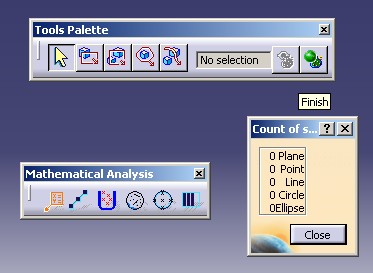

The end user has chosen the third and last behavior, CATDlgEngMultiAcquisitionUserCtrl, so the active state is StMultiAcquisitionUserCtrlState. The "Tools Palette" toolbar appears as follows:

Fig.4

Tools Palette contains:

• A row of icons to choose the selection mode  (same as the previous behavior)
  • The first icon by indicating or making a trap ( completely in)
  • The second icon by making a trap (completely in)
  • The third icon by making a trap (completely or partially in)
  • The forth icon by making a polygon trap ( completely in)
  • The five icon by selecting object under a paint stroke

  Notice that you have always the possibility to use the Search command to fill the CATPathElementAgent

• If the end user clicks the "Control Mode" button, the agent gets the CATDlgEndMultiAcquisitionCtrl behavior otherwise the agent is valuated after the first multi-selection or indication.

If the end user pushes the "Control Mode" button the "Selection" editor, the "List Of Selected Item" and "Finish" buttons are available.

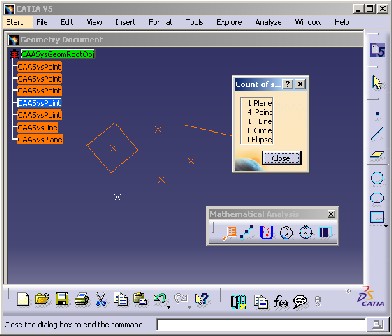

The active state is StEndChoiceState. The end user has finished the selection. The count by type of selected elements are displayed in the "Count of Selected Element" dialog box:

Fig.4

If the end user clicks the Close button, the Numeric command is canceled.

[Top]

How to Launch the Numeric Command

See the section entitled "How to Launch the CAAGeometry Use Case" in the "The CAAGeometry Sample" use case for a detailed description of how this use case should be launched.

Then, in the window where you run the mkrun command, do not type the module name on the command line, but type CNEXT instead. When the application is ready, do the following:

• On the Start menu, select Infrastructure and click CAA V5: Geometrical Analysis
• Launch the Point command and indicates some points in the viewer
• Click OK or Cancel in the Point Definition dialog box
• Launch the Numeric command
  • The Agent behavior choice dialog box appears
  • Choose a behavior
  • Click OK to validate the choice, The Count Of Selected Elements dialog box appears
  • You have chosen the first behavior
    • indicate a point or use a trap
  • You have chosen the second behavior, the Tools Palette dialog box appears
    • indicate a point or use a trap
    • indicate a point or use a trap, to modify the selection
    • Ctrl Key + indicate a point or use a trap , to modify the selection
    • Click Finish to end the selection
  • You have chosen the third behavior, the Tools Palette dialog box appears
    • indicate a point or use a trap
  • Click Close in the Count Of Selected Elements dialog box

[Top]

Where to Find the Numeric Command Code

The Numeric command is made of three classes:

• CAADegAnalysisNumericCmd , the CATStateCommand
• CAADegAnalysisNumericDlg, the dialog box [Fig.4] to display the count of selected object. This class is not explained here.
• CAADegChoiceBehaviorDlg, the dialog box [Fig.2] to choose the behavior of the selection's agent. This class is not explained here.

located in the CAADegGeoCommands.m module of the CAADialogEngine.edu framework:

where InstallRootDirectory is the directory where the CAA CD-ROM is installed.

[Top]

Step-by-Step

There is five logical steps:

1. Declaring the Selection Agents
2. Instantiating the Selection Agents
3. Creating the States and the Transitions
4. Retrieving the Selected Objects
5. Releasing the Selection Agents

[Top]

Declaring the Selection Agents

The state command class derives from CATStateCommand.

class CAADegCreateNumericCmd : public CATStateCommand
{
  ...
  private :
    CATPathElementAgent  * _daMultiAcquisitionSelModes ;
    CATPathElementAgent  * _daMultiAcquisitionCtrl ;
    CATPathElementAgent  * _daMultiAcquisitionUserCtrl ;

    ...

A pointer for each selection agent is declared as a private data member. Selection agents are instances of the CATPathElementAgent class.

• _daMultiAcquisitionSelModes will be used for the CATDlgEngMultiAcquisitionSelModes behavior,
• _daMultiAcquisitionCtrl for the CATDlgEngMultiAcquisitionCtrl behavior and
• _daMultiAcquisitionUserCtrl for the CATDlgEngMultiAcquisitionUserCtrl behavior.

[Top]

Instantiating the Selection Agents

The selection agents are instantiated in the command BuildGraph method.

For the _daMultiAcquisitionSelModes agent,

void CAADegCreateNumericCmd::BuildGraph()
{
  ...
   _daMultiAcquisitionSelModes = new CATPathElementAgent("PathEltMultiAcquisitionSelModes");

   _daMultiAcquisitionSelModes ->SetBehavior( CATDlgEngWithPSOHSO |CATDlgEngWithPrevaluation
                              CATDlgEngMultiAcquisitionSelModes );

   _daMultiAcquisitionSelModes ->AddElementType(IID_CAAISysPoint);
   _daMultiAcquisitionSelModes ->AddElementType(IID_CAAISysLine);
   _daMultiAcquisitionSelModes ->AddElementType(IID_CAAISysEllipse);
   _daMultiAcquisitionSelModes ->AddElementType(IID_CAAISysCircle);
   _daMultiAcquisitionSelModes ->AddElementType(IID_CAAISysPlane);
  ...

The character string PathEltMultiAcquisitionSelModes defined as the argument of the CATPathElementAgent constructor is the selection agent identifier. This identifier can be used to assign undo/redo prompts replacing the Undo and Redo items in the Edit menu. To affect a specific behavior to the CATPathElementAgent object, use the SetBehavior method. The CATDlgEngWithPSOHSO and CATDlgEngWithPrevaluation  styles enables to pre-highlight the available elements and to highlight the selected elements. The CATDlgEngMultiAcquisitionSelModes indicates a multi-selection. At last, thanks to the AddElementType method, the selection agent is valued only when an object that implements one of these five interfaces is selected. The selection agent remains impassive when any object that doesn't implement this interface is selected.

For the _daMultiAcquisitionCtrl agent, only the behavior changes:

  ...
   _daMultiAcquisitionCtrl = new CATPathElementAgent("PathEltMultiAcquisitionCtrl");

   _daMultiAcquisitionCtrl->SetBehavior( CATDlgEngWithPSOHSO | CATDlgEngWithPrevaluation
                              CATDlgEngMultiAcquisitionCtrl );

   _daMultiAcquisitionCtrl->AddElementType(IID_CAAISysPoint);
   _daMultiAcquisitionCtrl->AddElementType(IID_CAAISysLine);
   _daMultiAcquisitionCtrl->AddElementType(IID_CAAISysEllipse);
   _daMultiAcquisitionCtrl->AddElementType(IID_CAAISysCircle);
   _daMultiAcquisitionCtrl->AddElementType(IID_CAAISysPlane);
  ...

And for the _daMultiAcquisitionUserCtrl agent :

  ...
   _daMultiAcquisitionUserCtrl = new CATPathElementAgent("PathEltMultiAcquisitionUserCtrl");

   _daMultiAcquisitionUserCtrl ->SetBehavior( CATDlgEngWithPSOHSO | CATDlgEngWithPrevaluation
                              CATDlgEngMultiAcquisitionUserCtrl );

   _daMultiAcquisitionUserCtrl ->AddElementType(IID_CAAISysPoint);
   _daMultiAcquisitionUserCtrl ->AddElementType(IID_CAAISysLine);
   _daMultiAcquisitionUserCtrl ->AddElementType(IID_CAAISysEllipse);
   _daMultiAcquisitionUserCtrl ->AddElementType(IID_CAAISysCircle);
   _daMultiAcquisitionUserCtrl ->AddElementType(IID_CAAISysPlane);
  ...

[Top]

Creating the States and the Transitions

After the agent's creation, the states are created and the agents are associated with them.

   ...
   CATDialogState *stMultiAcquisitionSelModesState =
                   AddDialogState("stMultiAcquisitionSelModesStateId");
   stMultiAcquisitionSelModesStateId->AddDialogAgent(_daMultiAcquisitionSelModes);
   ...

   CATDialogState *stMultiAcquisitionCtrlState =
                   AddDialogState("stMultiAcquisitionCtrlStateId");
   stMultiAcquisitionCtrlState->AddDialogAgent(_daMultiAcquisitionCtrl);
   ...
   CATDialogState *stMultiAcquisitionUserCtrlState =
                   AddDialogState("stMultiAcquisitionUserCtrlStateId");
   stMultiAcquisitionUserCtrlState->AddDialogAgent(_daMultiAcquisitionUserCtrl);
   ...


The AddDialogState method creates a new dialog state and adds it to the states managed by the dialog command. The AddDialogAgent method adds the selection agent to the state. stMultiAcquisitionSelModesStateId, stMultiAcquisitionCtrlStateId and stMultiAcquisitionUserCtrlStateId are identifiers used to set a prompt displayed in the status bar when the state is active.

At last, the transitions are created:

   ...
   CATDialogTransition *pTransition32 =    AddTransition
   (
      stMultiAcquisitionSelModesState,
      stEndState,
      IsOutputSetCondition(_daMultiAcquisitionSelModes),
      Action((ActionMethod) &
        CAADegAnalysisNumericCmd::DisplaySelectedElement,NULL,NULL,(void*)1)
   ) ;
   ...

   CATDialogTransition *pTransition42 =    AddTransition
   (
      stMultiAcquisitionCtrlState,
      stEndState,
      IsOutputSetCondition(_daMultiAcquisitionCtrl),
      Action((ActionMethod) &
        CAADegAnalysisNumericCmd::DisplaySelectedElement,NULL,NULL,(void*)2)
   ) ;

   ...
   CATDialogTransition *pTransition52 =    AddTransition
   (
      stMultiAcquisitionUserCtrlState,
      stEndState,
      IsOutputSetCondition(_daMultiAcquisitionUserCtrl),
      Action((ActionMethod) &
        CAADegAnalysisNumericCmd::DisplaySelectedElement,NULL,NULL,(void*)3)
   ) ;
   ...


Retrieving the Selected Objects

In the DisplaySelectedElement Action method, executed when the transitions, defined in the previous step, are triggered. iData is the value set in the transition.

CATBoolean CAADegAnalysisNumericCmd::DisplaySelectedElement(void * iData)
{

  int CaseAgent = (int ) iData ;

  ...

  CATSO * pSO = NULL ;

  if ( 1 == CaseAgent ) pSO = _daMultiAcquisitionSelModes->GetListOfValues();
  if ( 2 == CaseAgent ) pSO = _daMultiAcquisitionCtrl->GetListOfValues();
  if ( 3 == CaseAgent ) pSO = _daMultiAcquisitionUserCtrl->GetListOfValues();

  if ( NULL != pSO )
  {
     int lg = pSO->GetSize();

     for ( int i=0 ; i < lg ; i++)
     {
       CATPathElement * pPath = (CATPathElement*) (*pSO)[i] ;

 ...
}

To retrieve the selected element use the GetListOfValues method on the current agent. The list is a CATSO object.

[Top]

Releasing the Selection Agents

A pointer to each selection agent was created in the command BuildGraph method as a data member to be accessed and used in different methods. It should be released when it becomes useless. This can be done in the command destructor, as shown here. This could also be done in the Cancel method called just before the destructor.

CAADegCreateNumericCmd::~CAADegCreateNumericCmd()
{
  ...
  if ( NULL != _daMultiAcquisitionSelModes  )
  {
     _daMultiAcquisitionSelModes  -> RequestDelayedDestruction()  ;
     _daMultiAcquisitionSelModes  = NULL ;
  }
  if ( NULL != _daMultiAcquisitionCtrl )
  {
     _daMultiAcquisitionCtrl -> RequestDelayedDestruction()  ;
     _daMultiAcquisitionCtrl = NULL ;
  }
  if ( NULL != _daMultiAcquisitionUserCtrl )
  {
     _daMultiAcquisitionUserCtrl -> RequestDelayedDestruction()  ;
     _daMultiAcquisitionUserCtrl = NULL ;
  }
  ...

[Top]

In Short

This use case shows how to use a CATPathElementAgent to have multi-selection in a CATStateCommand.
