Editing Object During a Command

3D PLM Enterprise Architecture	User Interfaces - Commands	Editing Object During a Command How to stack a workbench using CATEditAgent class
Use Case

Abstract

This article shows how to use the CATEditAgent class to stack a workbench during a state command. In particular, it details how to edit a sketch during a Part command.

What You Will Learn With This Use Case
The CAAPriEditSketch Use Case
Step-by-Step
In Short
References

What You Will Learn With This Use Case

This use case is intended to show you how to use the CATEditAgent class to stack a workbench during a state command in order to edit an object. Activate this agent launches the specified workbench, and the end user comes back to the interrupted command by exiting the stacked workbench. After the edition, the edited object is set in the selection set (CATCSO). This use case explains how to:

Create a CATEditAgent,
Specify the workbench,
Specify and manage the object to edit,
Specify available commands in the stacked workbench thanks to the CATStackableCommandSet class.

[Top]

The CAAPriEditSketch Use Case

CAAPriEditSketch is a use case of the CAAPartInterfaces.edu framework that illustrates DialogEngine and ApplicationFrame framework capabilities.

[Top]

What Does CAAPriEditSketch Do

CAAPriEditSketch is a use case which edits a Pad. This command is integrated in a Part Design add-in.

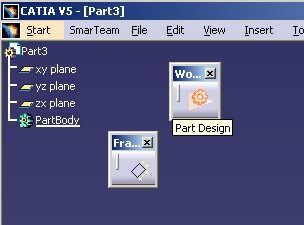

*Fig.1: The Part Design Add-in*

This add-in contains one toolbar (the "Frame tools" toolbar) which has one command the "Part Modification" command . This command enables the end user to edit a pad which has a sketch as profile.

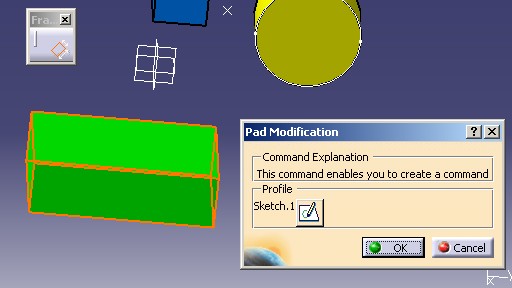

*Fig.2: The Part Modification Command*

The "Pad Modification" command (

) launches the "Pad Modification" dialog box. This dialog object contains the sketch icon (

) to edit the profile of the selected Pad. The name of the profile is displayed just beside the sketch icon. (here is it Sketch.1). The use case explains how the state command is awaked when the end user clicks the sketch icon, and how the Sketcher workbench can be launched.

When the sketch icon is pushed, the Sketcher workbench is launched. Only a set of commands are available.

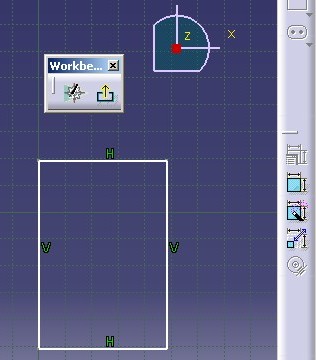

*Fig.3: The Sketcher Workbench*

The Sketcher workbench is active until the end user clicks the exit (

) command. The sketch associated with the Pad can be modified. The available commands are some global commands, such as Exit, Center Graph, Print ..., but only three specific commands to the Sketcher workbench:

, Constraint
, Auto Constraint
, Animate Constraint

The "Part Modification" command is a state command which uses the CATEditAgent. Its UML statechart diagram [1] is the following:

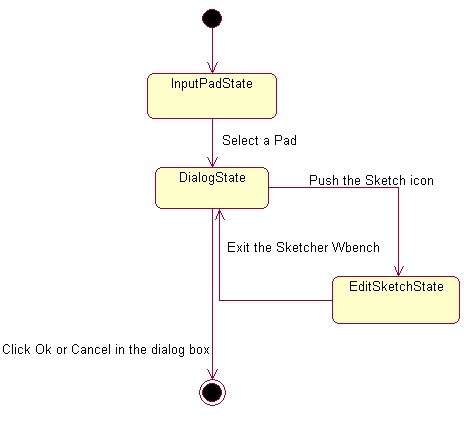

*Fig.4: The UML state chart for the Part Modification Command*

[Top]

How to Launch CAAPriEditSketch

To launch CAAPriEditSketch , you will need to set up the build time environment, then compile CAAPriEditSketch along with its prerequisites, set up the run time environment, and then execute the use case [2].

But just before launching the execution, edit the CAAPartInterfaces.edu.dico interface dictionary file located in the dictionary directory of the CAAPartInterfaces.edu framework:

Windows	`InstallRootDirectory\CAAPartInterfaces.edu\CNext\code\dictionary\`
UNIX	`InstallRootDirectory/CAAPartInterfaces.edu/CNext/code/dictionary/`

where InstallRootDirectory is the directory where the CAA CD-ROM is installed.

In this file, remove the "#" character before the two following lines:

...
#CAAPriPrtCfgAddin     CATIPrtCfgAddin             libCAAPriPrtCfgAddin
#CAAPriPrtCfgAddin     CATIWorkbenchAddin          libCAAPriPrtCfgAddin
...

Then, in the window where you run the mkrun command, do not type the module name on the command line, but type CNEXT instead. When the application is ready, do the following:

On the File menu, click Open
File Selection Dialog box select CAAPriEditSketch.CATPart and click Open
On the Tools menu, click Pad Modification...
Select the green Pad
In the Pad Modification Dialog box click
Modify the sketch
click
click OK in the Pad Modification dialog box

[Top]

Where to Find the CAAPriEditSketch Code

The CAAPriEditSketch use case is made of several classes located

In the CAAPriCommands.m module of the CAAPartInterfaces.edu framework:

CAAPriEditSketchCmd: The state command to modify a Pad. This command uses the CATEditAgent class to edit the profile of the selected Pad.
CAAPriEditSketchDlg: The dialog box associated with the CAAPriEditSketchCmd command.
CAAPriEditSketchNotification: The notification class to inform the CAAPriEditSketchCmd command that the sketch icon has been pushed.

Windows	`InstallRootDirectory\CAAPartInterfaces.edu\CAAPriCommands.m\`
Unix	`InstallRootDirectory/CAAPartInterfaces.edu/CAAPriCommands.m/`

where InstallRootDirectory is the directory where the CAA CD-ROM is installed

In the CAAPriPrtCfgAddin.m module of the CAAPartInterfaces.edu framework
- CAAPriPrtCfgAdn: The implementation class of the CATIPrtCfgAddin interface. Refer to the use case [3] for details.

[Top]

Step-by-Step

There are five logical steps in CAAPriEditSketch:

Creating the Edit Agent
Creating Agent to Trigger the Sketcher Workbench Activation
Creating States
Creating Transitions
Providing the Object to Edit

[Top]

Creating the Edit Agent

The edit agent is a dialog agent created as usual in the BuildGraph method [4] of a state command.

...
   _pEditAgent = new CATEditAgent("EditAgentId");
...

_pEditAgent, a data member of the CAAPriEditSketchCmd class, is a CATEditAgent class instance . It is created in the BuildGraph method, and released in the class destructor thanks to the RequestDelayedDestruction method.
EditAgentId is the agent identifier. This name is used to retrieve the undo/redo titles in the command resource file. This file is located in the CNext/resources/msgcatalog directory of the CAAPartInterfaces.edu framework.

Once the edit agent is created, you have to specify the following information:

The dialog box associated with the state command,
The name of the workbench to launch,
The list of available commands,
The name of the method which returns the object to edit.

All these methods can be called outside the BuildGraph method, and can be called several times once the edit agent is created. There are information used each time the edit agent is activated.

The dialog box associated with the state command

...
   _pEditAgent->SetPanel(_pDialogBox);
...

_pDialogBox is the CAAPriEditSketchDlg class instance pointer associated with the CAAPriEditSketchCmd class. It is the "Pad modification" dialog box Fig.2 . When the stacked workbench is launched, the edit agent disables the sensitivity of this dialog box. The SetPanel method enables you to specify to the edit agent the dialog box pointer. However hiding the dialog box is of your responsibility. See the Creating Transitions section.

The name of the workbench to launch

The name of the workbench should be set with the SetWorkbench method. But the Sketcher is a specific case because it has only one workbench, so the UI activation [5] of the Sketch launches the Sketcher workbench. It is not necessary to specify this information.

The list of available commands

...
       CATStackableCommandSet * pCommandSet = new CATStackableCommandSet();
        pCommandSet->AddCommand("2DConstraint");
        pCommandSet->AddCommand("2DAutoCst");
        pCommandSet->AddCommand("2DAnimateCst");

        _pEditAgent->SetCommandSet(pCommandSet);
        pCommandSet->Release();
        pCommandSet = NULL ;
...

The CATStackableCommandSet class is a set of CATCommandHeader class instance identifiers. The default constructor creates a non-empty list of commands: Hide/Show, Exit, ...... You should add the available commands of the workbench.

The 2DConstraint, 2DAutoCst and 2DAnimateCst (Fig.3) are commands of the Sketcher workbench. To be exact, they are identifiers of CATCommandHeader class instances. Refer to "How to (Re-)Use Command Header Identifiers" section of the "The Command Headers" technical article [6] to retrieve the name of identifiers.

pCommandSet must be released, since the SetCommandSet method addref's the class pointer.

The name of the method which returns the object to edit

...
   _pEditAgent->SetElementProvider(this,
                        (CATEditAgent::ElementProvider)&CAAPriEditSketchCmd::ProvideProfileToEdit);
...

With the SetElementProvider method, you specify which is the method to call, and on which object this method should be called. Here the object is this, the CAAPriEditSketchCmd class instance pointer itself. The ProvideProfileToEdit method is explained in the Providing the Object to Edit section.

[Top]

Creating Agent to Trigger the Sketcher Workbench Activation

You are always in the BuildGraph method of the CAAPriEditSketchCmd state command.

...
        _pTriggerAgent = new CATDialogAgent("TriggerAgentid");
        _pTriggerAgent->AcceptOnNotify(_pDialogBox,"CAAPriEditSketchNotification");
...

_pTriggerAgent, a data member of the CAAPriEditSketchCmd class, is a CATDialogAgent class instance . It is created in the BuildGraph method, and released in the class destructor thanks to the RequestDelayedDestruction method.

TriggerAgentid is the agent identifier. This name is used to retrieve the undo/redo titles in the command resource file. This file is located in the CNext/resources/msgcatalog directory of the CAAPartInterfaces.edu framework. This agent is valuated when the CAAPriEditSketchDlg dialog box sends a CAAPriEditSketchNotification notification.

This agent is important as it is explained in the next sections.

[Top]

Creating States

After the agent creations, the second step of a BuildGraph method is to create the states. The Fig.4 shows the UML diagram of the CAAPriEditSketchCmd state command. There are two important states:

DialogState: the state to click OK, Cancel to finish the command or click the Sketch icon to edit the profile.
EditSkethState: the state to activate the edit agent

The first one, InputPadState, which enables the end user to select a Pad, is outside the scope of this use case and therefore, not explained.

DialogState

...
        CATPanelState * pDialogState = new CATPanelState(this,"DialogStateId",_pDialogBox);
        if ( NULL != pDialogState )
        {
           AddDialogState(pDialogState);
           pDialogState->AddDialogAgent(_pTriggerAgent);
        }
...

The DialogStateId state is a CATPanelState class. This class creates agents to react to the end user action on Ok and Cancel buttons of the dialog box given as argument. Refer to the specific article to understand this class [7]. On this state, _pTriggerAgent has been added. pDialogState must be released at the end of the BuildGraph method.

EditSketchState

...
        CATDialogState * pEditSketchState = AddDialogState("EditSketchStateId");
        if ( NULL != pEditSketchState )
        {
           pEditSketchState->AddDialogAgent(_pEditAgent);
        }
...

The EditSketchStateId is a simple CATDialogState class created by the AddDialogState method. The only one agent associated with this state is _pEditAgent the edit agent. pEditSketchState will be automatically released at the end of the command.

The CATEditAgent dialog agent is itself a CATStateCommand class. A state command used as agent must always be the unique agent of a state. It is the reason for which the _pTriggerAgent is important. It enables to activate the EditSketchState state, since it will be not possible to associate with the DialogState state the _pEditAgent agent.

[Top]

Creating Transitions

The last step of a BuildGraph method is to create transitions. There are the following transitions Fig.4:

From DialogState to final state: They are managed by the CATPanelState class and not by the BuildGraph method of the CAAPriEditSketchCmd class. [7]
From InputPadState to DialogState: Out of the scope of this use case, therefore not detailed.
From DialogState to EditSketchState: when the Sketch icon is pushed
From EditSketchState to DialogState: when the stacked workbench is closed.

From DialogState to EditSketchState

...
           CATDialogTransition * pEditSketchTransition = AddTransition(pDialogState,pEditSketchState,
                    IsOutputSetCondition(_pTriggerAgent),
                    Action((ActionMethod) & CAAPriEditSketchCmd::TriggerEditSketch));
...

pEditSketchTransition comes from the DialogState state to the EditSketchState state. This transition is triggered as soon as the sketch icon is pushed, in other words when a CAAPriEditSketchNotification notification is sent by the CAAPriEditSketchDlg dialog box.
The pEditSketchTransition transition is managed by the state command, it will be automatically released at the end of the command.
The TriggerEditSketch method is called just before the edit agent activation.

...
CATBoolean CAAPriEditSketchCmd::TriggerEditSketch(void *iDummy)
{
      _pDialogBox->SetVisibility(CATDlgHide) ;
...
      _pTriggerAgent->InitializeAcquisition();
...

_pDialogBox, the CAAPriEditSketchDlg dialog box is hidden, and _pTriggerAgent is reinitialized for a next re-usage.

From EditSketchState to DialogState

...
           CATDialogTransition * pBackTransition = AddTransition(pEditSketchState,pDialogState,
                    IsOutputSetCondition(_pEditAgent),
                    Action((ActionMethod) & CAAPriEditSketchCmd::EditSketch));
...

pBackTransition comes from the EditSketchState state to the DialogState state. This transition is triggered as soon as the end user clicks the exit button.
The EditSketch method is called when the _pEditAgent, a state command, reaches the final state. The Sketcher workbench is "unloaded" and the previous workbench becomes the current one again.

...
CATBoolean CAAPriEditSketchCmd::EditSketch(void *iDummy)
{
       _pDialogBox->SetVisibility(CATDlgShow) ;
 ...
       _pEditAgent->InitializeAcquisition();
...

_pDialogBox, the CAAPriEditSketchDlg dialog box is shown, and _pEditAgent is reinitialized for a next re-usage.

[Top]

Providing the Object To Edit

The ProvideProfileToEdit method is called each time the edit agent is activated. The goal of this method is to provide the object to edit by the edit agent. This object will be set in the selection set (CATCSO) when the edit agent will reach the final state. The value returned by this method is released by the edit agent. Once the ProvideProfileToEdit method is called, the GetValue method of the CATEditAgent class returns it.

...
CATPathElement * CAAPriEditSketchCmd::ProvideProfileToEdit(CATClassId iDummy)
{
   CATPathElement * pPathToReturn = NULL ;

   if ( (NULL == GetEditor()) || (NULL == _pFeatureAgent) ) return NULL ;

   CATBaseUnknown * pSelectedElt= _pFeatureAgent->GetElementValue();

   CATISpecObject * pISpecObjectOnProfile = NULL ;
   HRESULT rc = FindProfile(pSelectedElt,&pISpecObjectOnProfile) ;

   if ( SUCCEEDED(rc) && (NULL!=pISpecObjectOnProfile))
   {
      CATIBuildPath *piBuildPath = NULL;
      rc = pISpecObjectOnProfile->QueryInterface( IID_CATIBuildPath, (void**) &piBuildPath );

      if ( SUCCEEDED(rc) )
      {
         CATPathElement Context = GetEditor()->GetUIActiveObject();
         rc = piBuildPath->ExtractPathElement(&Context,&pPathToReturn);

         piBuildPath->Release();
         piBuildPath = NULL ;
      }

      pISpecObjectOnProfile->Release();
      pISpecObjectOnProfile = NULL ;
   }

   return pPathToReturn ;
}
...

In this use case, the object to return is the sketch associated with the selected pad. In fact, to be exact it is the complete path of this sketch: from the root (the MechanicalPart) to the sketch itself.

_pFeatureAgent is the agent to select a Pad. It is a CATFeatureImportAgent filtered with the CATIPad interface. The GetElementValue method retrieves the selected pad. The local FindProfile method extracts from the pad its sketch. Refer to the code for details. pISpecObjectOnProfile is a CATISpecObject interface pointer on a sketch ( an object implementing CATISketch). The CATIBuildPath interface enables you to build the path from the root ( the context) to the sketch.

[Top]

In Short

This use case explains how to create a dialog agent to stack a workbench into a state command. This agent is a CATEditAgent .

[Top]

References

[1]	Describing State Dialog Command Using UML
[2]	Building and Launching a CAA V5 Use Case
[3]	Creating an Add-in of the Part Design Workbench
[4]	Implementing the Statechart Diagram
[5]	Application Frame overview
[6]	The Command Headers
[7]	Associating a Dialog Box with a State
[Top]

History

Version: 1 [Aug 2003]	Document created
