mkCheckSource Quick Reference

RADE	C++ Source Checker	mkCheckSource Quick Reference Checking programming rules
Quick Reference

Abstract

The mkCheckSource command checks source code for validity against some programming rules.
This command takes as input parameters the type of run and the pattern of sources or frameworks to analyse.
The errors detected are reported in html or text format.

Synopsis
Usage
Options
Examples
References

Synopsis

mkCheckSource [-d workspace_dir] [-p concatenation_path_list] [-f framework_list_pattern | -s source_paths_pattern | -sourcelist source_path_pattern_file] [-Check | -CheckTst] [-settings setting_file_path] [-html html_output_dir] [-h]

Usage

You can specify the workspace directory containing the frameworks (or sources) to analyze. If no workspace directory is provided, the tools will look for a workspace directory including the directory of run. If none of the directories including the directory of run is a workspace, the tool will exit. If the command is launched from the root directory of a workspace, this option is useless.

You must specify the source code to analyze. You can specify :

a framework, a list of frameworks or a pattern matching a list of frameworks.
a source path, a list of source paths or a pattern matching a list of source paths. Paths may be absolute or relative to run directory.
a file containing a source path, a list of source paths or a pattern matching a list of source paths. Paths may be absolute or relative to run directory.

You can specify the rules activated during the run (default will check only code frameworks, against default rules) :

check only code frameworks, against default rules
check code and test frameworks, against default rules
specify a sub-list of rules using your own setting file

You can specify an output directory for html output. If the directory does not exist, it will be created. If none is specified, detected errors will be reported in standard output.

[Top]

Options

The mkCheckSource command accepts the following options:

`-h`	Help of the command.
`-d workspace_dir`	Workspace directory containing the frameworks (or sources) to analyze. If no workspace directory is provided, the tool will look for a workspace directory including the directory of run. If none of the directories including the directory of run is a workspace, the tool will exit. If the command is launched from the root directory of a workspace, this option is useless.
`-p concatenation_path_list`	List of paths corresponding to the workspace concatenation. Paths must be separated by ";" on NT and ":" on UNIX. If this option is not specify (it is recommended not to specify this option), the tool will take the default concatenation_path_list used by mkmk (reading the Install_config file).
`-f framework_list_pattern`	Framework, list of frameworks or pattern matching a list of frameworks to analyze. These frameworks must be included in the workspace directory.
`-s source_paths_pattern`	Source path, list of source paths or pattern matching a list of source paths to analyze. Every source must be included in a framework contained in the workspace directory.
`-sourcelist source_path_pattern_file`	File containing a source path, a list of source paths or a pattern matching a list of source paths. One source path by line. Paths may be absolute or relative to run directory. Every source must be included in a framework contained in the workspace directory. This option is similar to option "-s source_paths_pattern", but input is a file. This option is useful on NT when you need to analyze a lot of source paths if you get the system error message "command line too long" with option "-s source_paths_pattern".
`-Check`	Code frameworks will be checked, against default rules.
`-CheckTst`	Both code and test frameworks will be checked, against default rules.
`-settings setting_file_path`	Specify your own setting file. This setting file will be appended to default settings file if used with option -Check or -CheckTst, or will replace any other if used alone. You can specify several setting_file_path by using this option several times.
`-html html_output_dir`	Directory for html output. If the output directory does not exist, it will be created. html_output_dir will contain a file named "Main.html", which is the main report file. If this option is not specified, errors detected will be reported in standard output.

If neither -Check nor -CheckTst is specified, only code frameworks will be checked.

[Top]

Examples

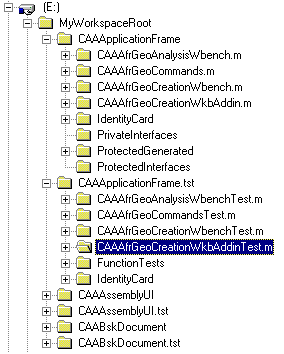

Let's consider the following Workspace named MyWorkspaceRoot.

This Workspace includes 3 code frameworks :

CAAApplicationFrame
CAAAssemblyUI
CAABskDocument

And 3 test frameworks :

CAAApplicationFrame.tst
CAAAssemblyUI.tst
CAABskDocument.tst

Analyzing every code frameworks.

Every source file, of every module, of frameworks CAAApplicationFrame, CAAAssemblyUI and CAABskDocument will be analyzed, with default check settings. Assuming that tool is launched from E:\MyWorkspaceRoot. Output will be generated in E:\Csc.out\Main.html.

E:
cd E:\MyWorkspaceRoot
mkCheckSource -f * -html E:\Csc.out

or

E:
cd E:\MyWorkspaceRoot
mkCheckSource -f * -Check -html E:\Csc.out

If tool is not launched from a directory under workspace directory:

mkCheckSource -d E:\MyWorkspaceRoot -f * -html E:\Csc.out

or

mkCheckSource -d E:\MyWorkspaceRoot -f * -Check -html E:\Csc.out

Analyzing every code and test frameworks.

Every source file, of every module, of frameworks CAAApplicationFrame, CAAAssemblyUI, CAABskDocument, CAAApplicationFrame.tst, CAAAssemblyUI.tst and CAABskDocument.tst will be analyzed, with default check test settings. Assuming that tool is launched from E:\MyWorkspaceRoot. Output will be generated in E:\Csc.out\Main.html.

E: cd E:\MyWorkspaceRoot mkCheckSource -f * -CheckTst -html E:\Csc.out

If tool is not launched from a directory under workspace directory:

mkCheckSource -d E:\MyWorkspaceRoot -f * -CheckTst -html E:\Csc.out

Analyzing every test frameworks.

Every source file, of every module, of frameworks CAAApplicationFrame.tst, CAAAssemblyUI.tst and CAABskDocument.tst will be analyzed, with default check test settings. Assuming that tool is launched from E:\MyWorkspaceRoot. Output will be generated in E:\Csc.out\Main.html.

E: cd E:\MyWorkspaceRoot mkCheckSource -f *.tst -CheckTst -html E:\Csc.out

If tool is not launched from a directory under workspace directory:

mkCheckSource -d E:\MyWorkspaceRoot -f *.tst -CheckTst -html E:\Csc.out

Analyzing only one framework.

Every source file, of every module, of framework CAAApplicationFrame will be analyzed. Assuming that tool is launched from E:\MyWorkspaceRoot. Output will be generated in E:\Csc.out\Main.html.

E: cd E:\MyWorkspaceRoot mkCheckSource -f CAAApplicationFrame -html E:\Csc.out

If tool is not launched from a directory under workspace directory:

mkCheckSource -d E:\MyWorkspaceRoot -f CAAApplicationFrame -html E:\Csc.out

Analyzing a pattern matching a list of frameworks.

Every source file, of every modules, of frameworks CAAApplicationFrame, CAABskDocument and CAABskDocument.tst will be analyzed. Assuming that tool is launched from E:\MyWorkspaceRoot. Output will be generated in E:\Csc.out\Main.html.

E: cd E:\MyWorkspaceRoot mkCheckSource -f CAAApplicationFrame CAABsk* -CheckTst -html E:\Csc.out

If tool is not launched from a directory under workspace directory:

mkCheckSource -d E:\MyWorkspaceRoot -f CAAApplicationFrame CAABsk* -CheckTst -html E:\Csc.out

Analyzing only one source file

Only source E:\MyWorkspaceRoot\CAAAfrGeoCommands.m\src\source001.cpp will be analyzed. Output will be generated in E:\Csc.out\Main.html. Assuming that tool is launched from E:\MyWorkspaceRoot.

E: cd E:\MyWorkspaceRoot mkCheckSource -s CAAApplicationFrame\CAAAfrGeoCommands.m\src\source001.cpp -html E:\Csc.out

If tool is not launched from E:\MyWorkspaceRoot (option "-d workspace_dir" is useless):

mkCheckSource -s E:\MyWorkspaceRoot\CAAApplicationFrame\CAAAfrGeoCommands.m\src\source001.cpp -html E:\Csc.out

Analyzing a pattern matching a list of source files

Every source file, of module CAAAfrGeoCommands of framework CAAApplicationFrame, and every source file, of every module, of framework CAAAssemblyUI will be analyzed. Assuming that tool is launched from E:\MyWorkspaceRoot. Output will be generated in E:\Csc.out\Main.html.

E: cd E:\MyWorkspaceRoot mkCheckSource -s CAAApplicationFrame\CAAAfrGeoCommands.m\src\*.cpp CAAAssemblyUI\*.m\src\*.cpp -html E:\Csc.out

Using your own Setting File

Let's assume that you wrote your own setting file, E:\Settings_User.xml [1].

If you want to use only this setting file (no delivered setting file will be taken into account):

mkCheckSource -f * -settings E:\Settings_User.xml -html E:\Csc.out

If you want your own settings to be added to default delivered setting file:

mkCheckSource -f * -Check -settings E:\Settings_User.xml -html E:\Csc.out

Using several Setting Files

Let's assume that you wrote 2 setting files, E:\Settings_User.xml and E:\Settings_User2.xml.

If you want the settings defined in Settings_User2.xml to be added to Settings_User.xml (Settings_User.xml will first be taken into account), the command is:

mkCheckSource -f * -settings E:\Settings_User.xml -settings E:\Settings_User2.xml -html E:\Csc.out

[Top]

References

[1]	Setting Files

[Top]

History

Version: 1 [Apr 2001]

Document created
