Mechanical Design

What You Will Learn With This Use Case

This use case is intended to help you make your first steps in programming with CATIA Product Design. Its main intent is to retrieve and set drafting properties of an Product design document. More specifically, you will learn how to:

• Open a Product document.
• Searching for the documents' root product.
• Searching for instances in the document whose property is to be modified.
• Modifying drafting properties on instances.
• Saving the document.

[Top]

The CAAAuiProdDraftingProperties Use Case

CAAAuiProdDraftingProperties is a use case of the CAAAssemblyUI.edu framework that illustrates the CATAssemblyInterfaces framework capabilities.

Before discussing the use case, some main concepts, about the drafting properties, have to be introduced:

• Hidden Line Property :- Determine the hide status of the line.

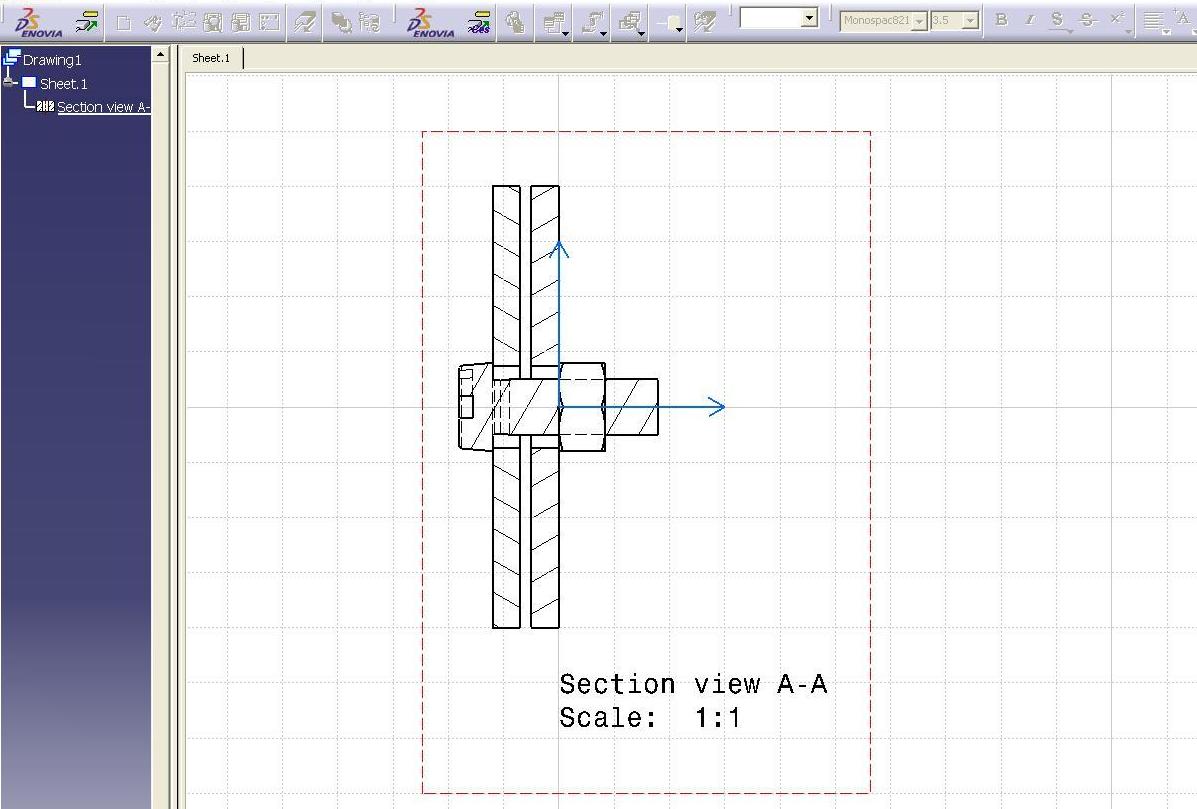

• Cut status of the component :- Determine if the component will be cut when projected in section view.

• Projected status of the component:- Determine if the component will be projected in the section view.

ut [Top]

What Does CAAAuiProdDraftingProperties Do

CAAAuiProdDraftingProperties:

• Opens a session.
• Opens a document.
• Search for the document's root product.
• Search for Screw.1, Nut.1 and Washer.1 instances.
• Modify drafting properties of the instances.
• Save the document if necessary
• Closes document.
• Closes session.

[Top]

How to Launch CAAAuiProdDraftingProperties

To launch CAAAuiProdDraftingProperties, you will need to set up the build time environment, then compile CAAAuiProdDraftingProperties along with its prerequisites, set up the run time environment, and then execute the use case [1].

Launch the use case as follows:

• With Windows

  e:>CAAAuiProdDraftingProperties InputDocument OutputDocument

• With UNIX

  $ CAAAuiProdDraftingProperties InputDocument OutputDocument

where:

[Top]

Where to Find the CAAAuiProdDraftingProperties Code

The CAAAuiProdDraftingProperties use case is located in the CAAAuiProdDraftingProperties.m module of the CAAAssemblyUI.edu framework:

where InstallRootDirectory is the directory where the CAA CD-ROM is installed.

[Top]

Replaying CAAAuiProdDraftingProperties ODT

The required data for CAAAuiProdDraftingProperties ODT is located in the CAAAssemblyUI.tst framework:

where InstallRootDirectory is the directory where the CAA CD-ROM is installed.

[Top]

Step-by-Step

There are five main steps in CAAAuiProdDraftingProperties:

1. Prolog
2. Retriving and Setting the Hide Line Property.
3. Retriving and Setting the Cut Property.
4. Retriving and Setting the Projection Property.
5. Epilog

We will now comment at each of those sections by looking at the code.

[Top]

Prolog

CAAAuiProdDraftingProperties begins by checking that the command lines contains two argument (Complete path for input CATProduct document  and output CATProduct document ). It then creates a session, and opens a CATProduct document with the help static method OpenDocument of class CATProductDocument. It then retrieves the root document by using CATIDocRoots, and then retrieves Screw.1, Nut.1 and Washer.1 instances (of type CATIProduct). It then modifyes Screw.1 Hidden Line properties, followed by modifying Nut.1 Cut properties then by modifying Washer.1 Projected properties by using CATIProdDraftingProperties method

[Top]

Retriving and Setting the Hide Line Property.

{

	CATBoolean showHiddenLines = FALSE;

	piProd_DftProp->GetHiddenLineMode( showHiddenLines );

	if ( FALSE == showHiddenLines )

	{ piProd_DftProp->SetHiddenLineMode( TRUE ); }

}

// Process next
  ...

The GetHiddenLine returns

Retriving and Setting the CUT Property .

if ( SUCCEEDED( piProd_Nut->QueryInterface( IID_CATIProdDraftingProperties, (void **) & piProd_DftProp ) ) )

{

	CATBoolean cut = FALSE; piProd_DftProp->GetCutStatus( cut );

	if ( TRUE == cut )

	{ piProd_DftProp->SetCutStatus( FALSE ); }

}

// Process next
  ...

The GetCutStatus returns

[Top]

Retriving and Setting the Projected Property .

...

// modifying Washer.1 properties,

CATIProdDraftingProperties * piProd_DftProp = NULL;

if ( SUCCEEDED( piProd_Washer->QueryInterface( IID_CATIProdDraftingProperties, (void **) & piProd_DftProp ) ) )

{

	CATBoolean use = FALSE;

	piProd_DftProp->GetUseStatus( use );

	if ( TRUE == use ) { piProd_DftProp->SetUseStatus( FALSE ); }

}

// Process next
  ...

The GetUseStatus returns ..

[Top]

Epilog

Close the document and then session is closed, as usual.

[Top]

In Short

This use case has demonstrated the way to retrive and set the HideLine , Cut and Projection drafting  properties of a Product design document.
