Analysis Solution

What You Will Learn With This Use Case

This use case is intended to help you to generate the field model of an analysis entity associated to a support. This use case will also include the definition of the authorized support.

More specifically, the CAAAniSelectNodeCmd use case shows how to :

• Create a new Highlight Method
• Associate this method to the filter of selection

[Top]

The CAAAniSelectNodeCmd Use Case

CAAAniSelectNodeCmd is an use case of the CAAAnalysisInterfaces.edu framework that illustrates the CATIA Analysis modeler frameworks capabilities.

What Does CAAAniSelectNodeCmd Do

The goal of this use case is to illustrate the way of how defining your customized highlight for a node or element selection.

The main methods to use are:

• CATMSHCustomHighlight to create a customized highlight.
• HighlightCustoNode (CAT3DCustomRep * iRep, CATBaseUnknown * iEntity, void * iHData) to define in order to have your own highlight.

[Top]

Where to Find the CAAAniSelectNodeCmd Code

CAAAniSelectNodeCmd code is located in the CAAAniWB.m use case module of the CAAAnalysisInterfaces.edu framework:

where InstallRootDirectory is the directory where the CAA CD-ROM is installed. It is made of a source file named

The following table shows which code resources are used in this Use Case. These resources are physically located within the appropriate directories (with same names) of your CAA installation.

[Top]

How to Launch CAAAniSelectNodeCmd

To launch this use case, you will need to set up the build time environment, then compile CAAAniWB and CAAAniAeroDTransition along with its prerequisites, set up the run time environment, and then execute the use case [2].

[Top]

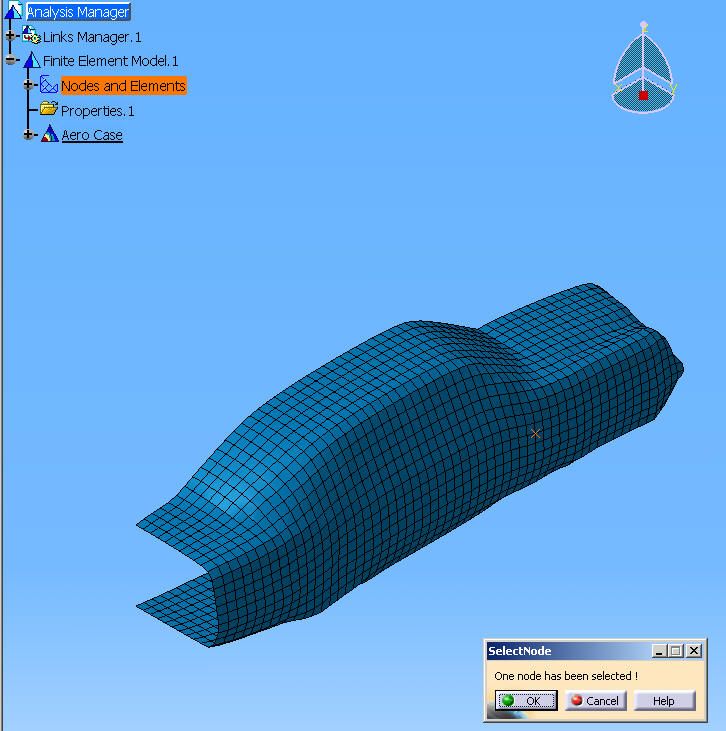

Illustration of the result

The default highlight is a circle. We have customized our highlight in order to have a cross for node selection.

[Top]

Step-by-Step

There are seven logical sections in CAAAniExplicit.m. We will now comment each of those sections by looking at the code.

• Create your CATMSHCustomHighlight
• Define your own HighlightCustoNode method

[Top]

Create your CATMSHCustomHighlight

Define your path element selection agent with specifying the type of object you want the user to be allowed to select. In order case we only allow the objects adherent to CATIMSHSelectedNode.

...
 _FeatSelectionAgent = new CATPathElementAgent ("FeatSelectionAgent");
 if ( _FeatSelectionAgent) {
   _FeatSelectionAgent->AddElementType(IID_CATIMSHSelectedNode);
   _FeatSelectionAgent -> SetBehavior ( CATDlgEngWithPSOHSO | CATDlgEngWithPrevaluation );
   AddCSOClient(_FeatSelectionAgent);
 }
...

[Top]

Define your customized highlight by creating a CATMSHCustomHighlight or its derivated. Note that HighlightCustoNode is your own method that you have to define according to some nomenclatures. Refer to next step.

...
 CATMSHCustomHighlight* pFilter = new CATMSHCustomHighlight((CATMSHMethodHilight) &HighlightCustoNode,(void*)this);
...

[Top]

Set this object CATMSHCustomHighlight as filter of your selection agent.

...
 _FeatSelectionAgent->SetFilter(pFilter);
...

[Top]

Define your own HighlightCustoNode method

This method must have the following arguments : (CAT3DCustomRep * iRep, CATBaseUnknown * iEntity, void * iHData) with  :

• The iRep parameter to allow the partner to add its own graphic primitives with the AddGP services.
• The iEntity parameter is a filter associate to the dialog agent.
• The option parameter iHData to allow the partner to give its own information.

Warning : Note that this method is a static method.

...
HRESULT CAAAniSelectNodeCmd::HighlightCustoNode (CAT3DCustomRep * iRep, CATBaseUnknown * iEntity, void * iHData)
{
CATAssert ( iEntity );
CATAssert ( iRep );

CATIMSHSelectedNode * Node = NULL;
iEntity -> QueryInterface ( IID_CATIMSHSelectedNode , (void **) &Node );
if ( !Node ) return E_FAIL;

CATMSHNode * node = Node -> GetNode ();
CATAssert ( node );
Node -> Release ();
Node = NULL;

float xyz[3];
const double * coor = node -> GetCoordinates ();
xyz[0] = (float) coor[0];
xyz[1] = (float) coor[1];
xyz[2] = (float) coor[2];

CATGraphicAttributeSet attribute;
attribute.SetColor ( GREEN );

CAT3DMarkerGP * marker = new CAT3DMarkerGP ( xyz, 1 , CROSS );
iRep -> AddGP ( marker , attribute );

return S_OK;
}
...

[Top]

In Short

his use case explains how to customize the high light of node and element. This  step includes the creation of a command of Node Selection and the definition of the Highlight method.

[Top]

References

History
