This task explains the effect of creating openings on
stiffeners. |
 |
1. |
With your 3D session open, determine where you want to create the
opening.
|
| |
2. |

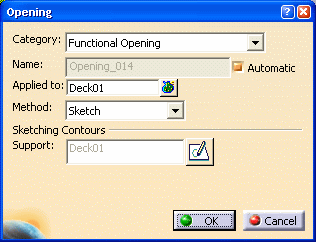

Click the
Opening button  to
display the Opening dialog box. Select the appropriate options
to create an opening. In the given example, an opening is created
on a deck, which supports longitudinal stiffeners 123 and 124.
 |
| |
|

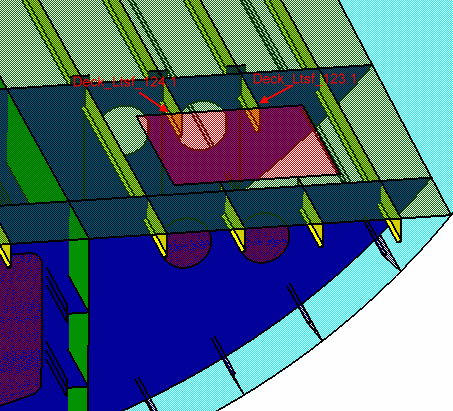

In Structure Detail Design, the
opening splits each of the stiffeners into two child stiffeners.
 |
| |
|
In Structure Functional Design,
the opening does not split the stiffeners into more child stiffeners.
The geometry of the child stiffener is interrupted by the opening and it
becomes multi-domain.
 |
| |
|
Organizing Openings
|
| |
|
Stiffeners have a parent/child
organization. Each stiffener object has a child object. The
SuperStiffenersSet contains all the stiffeners on one plate and the
StiffenersSet contains all the child stiffeners of one stiffener. There
is a a separate StiffenerSet for each stiffener. The OpeningSet contains
all the openings on a plate. In SDD, after an opening is created, the
stiffener object is further split into more child or split stiffeners.

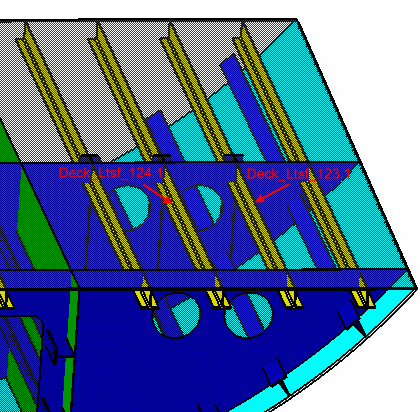

| Before opening |

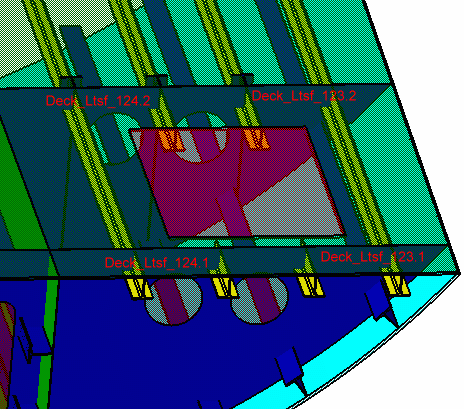

After opening |
 |
 |
|
| |
|
In SFD, creating an opening
doesn't change the number of stiffeners. The stiffeners are not split
into more child stiffeners.
 |
