This task shows how it is not possible to create a plate with more than one domain. | |
 |

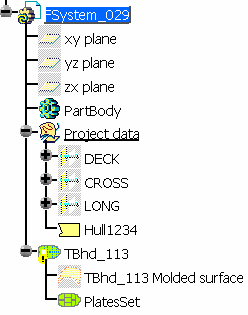

1. | With your document open,
click the Plate button
 .Use the Plate dialog box to create a plate. |
|
|

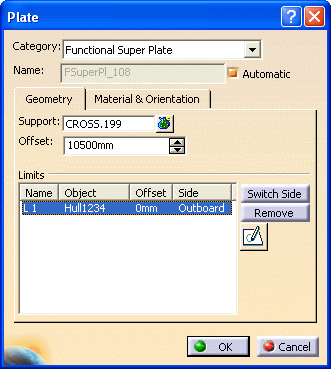

2. |
For Category, select a
plate from the drop down list.
For Support, select CROSS.199. Set Offset at 10500mm.
|
| 3. | Add a Limit. Select the
Hull as a
limit.

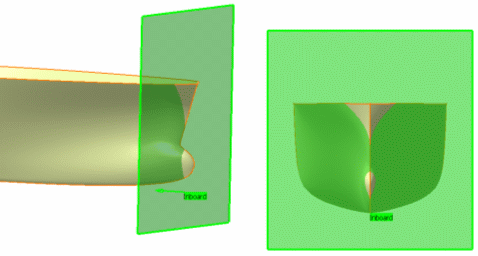

Your 3-D session previews the result:
|
|
| 4. | Click Switch Side to invert the orientation of the
Limit.

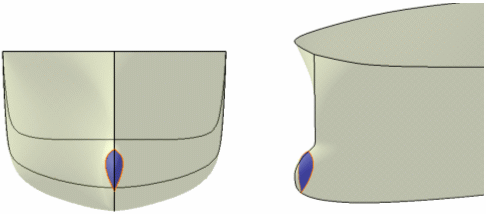

The preview shows the plate has two domains:
|
|
| 5. | Click OK to create
the plate. An error message displays.
Result: the plate is in update error.
|
|
| 6. | To avoid the multi domain
limitation, and to create a mono domain plate as below:
|
|
| Select DECK.2 as the first Limit of the plate.

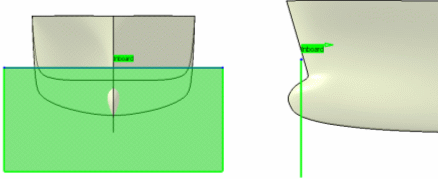

The resulting preview:
The resulting plate intersects only the bulb of the hull. Select the Hull as the second Limit of the plate.

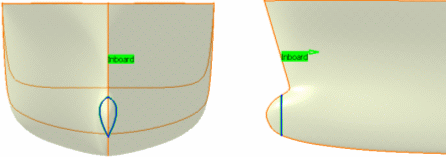

The resulting preview.
Now you are able to create a plate inside the bulb. |
||
