Using Point Hide/Show

This procedure describes how to use Point Hide/Show .

This command disables/enables the display of accurate point geometries present on vertices of the machined part.

Complete the procedures as described in Accessing NC Manufacturing Verification and Comparing the Machined Stock Part and the Design Part, including:

  • Accessing NC Manufacturing Verification via Replay Tool Path .
  • Clicking Full Video   within the Replay dialog box.
  • Clicking Measure within the Replay dialog box.
  • Selecting Measure from the Window menu.
    The Measure dialog box appears:
From the Measure dialog box, click Point Hide/Show .

The point geometries present on vertices of the machined part are hidden (OFF) or displayed (ON), depending on their current display state.

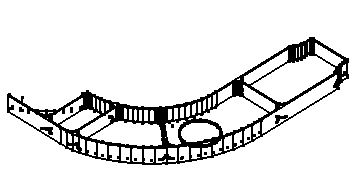

The image below illustrates the points shown.
