This document describes how Groove insert positioning is managed, with respect to the IN/ON/OUT setting on the Start/End Limits, while taking into account the tool compensation number (P9/P9R) and the insert geometry.

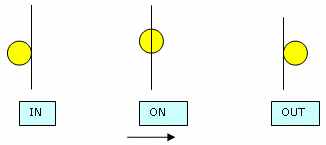

The IN/ON/OUT setting on the Start/End Limits is represented
in the figure below (the arrow represents the direction of tool motion).
The tool compensation number (P9/P9R)
on the insert geometry is represented in the figure below
The behavior is illustrated in the figures below (there is no offset on the limit elements in these examples).
P9 with IN setting on the Start/End Limits:
P9R with IN setting on the Start/End Limits:

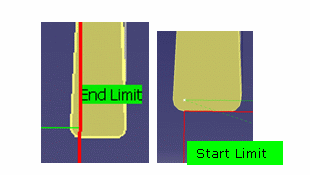

P9 with ON setting on the Start/End Limits:

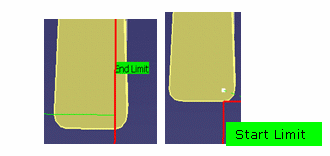

P9R with ON setting on the Start/End Limits:

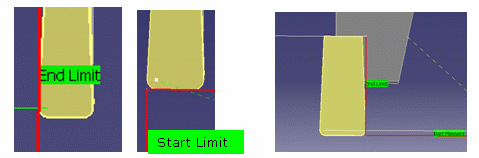

P9 with OUT setting on the Start/End Limits:

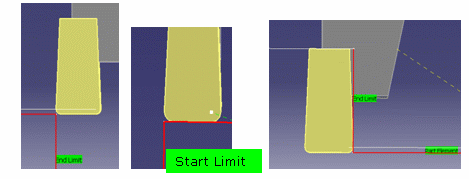

P9R with OUT setting on the Start/End Limits:
